Model ASTL Non-Locking Type
Both the Model AST and ASTL were developed primarily for lifting, turning and stacking light weight beams and structural shapes while a constant tension is applied to the lifting shackle. The horizontal shackle permits a beam to be lifted with the web in a near horizontal position by placing the clamp on the load with the shackle positioned over the web, and between the flanges. With a beam lying in a horizontal position, and the clamp placed with the shackle over hanging the flange, the beam can be lifted, turned 90 degrees, and raised in a vertical position. The Model ASTL includes all of the feature of the Model AST plus a linkage which permits the tool to be removed remotely by setting the load down with the sling slack, then lifting the crane hook.
Product Features
- Developed for lifting, turning & stacking lightweight shapes
- Constant tension is to be applied to the shackle when lifting loads
- Position shackle over the web, between flanges for lifting beams & shapes increasing load control

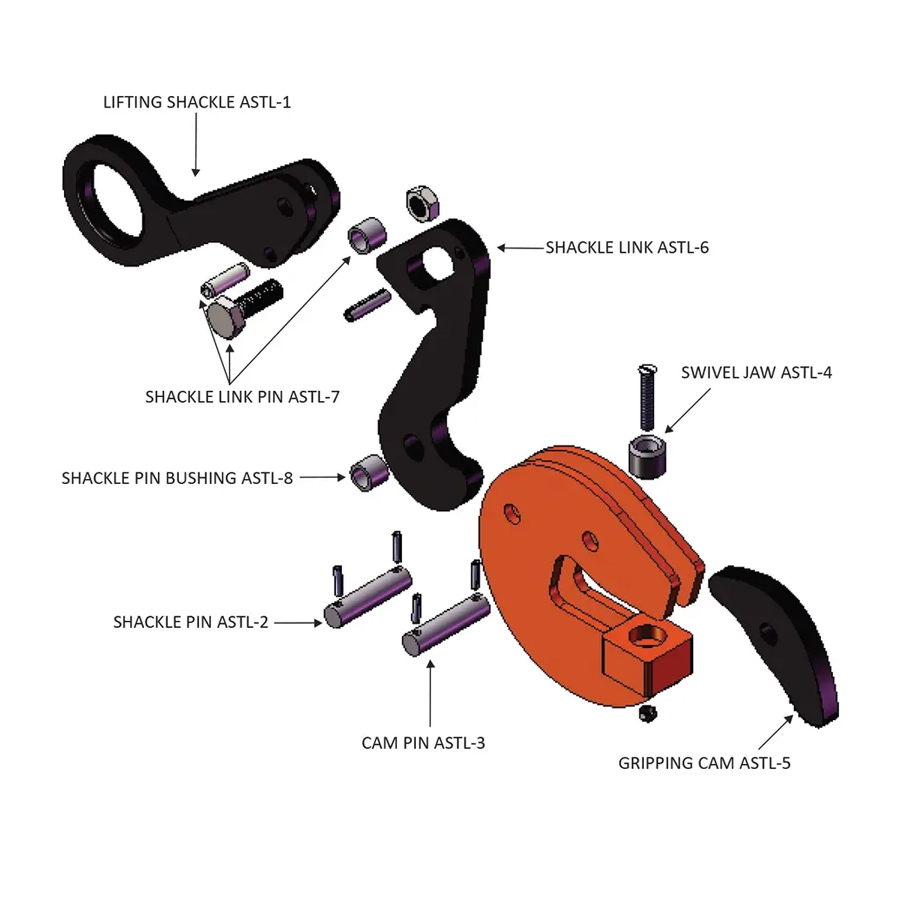

- Linkage permits remote removal by setting the load down with the sling slack, then lifting the crane hook
- Beams & shapes can be lifted, turned 90 degrees & raised in a vertical position
