Crosby® Galvanized Drop Forged Wire Rope Clips

Crosby® Galvanized Drop Forged Wire Rope Clips

G-450

  • Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or “CG,” and a size forged into it.
  • Sizes 1/8″ through 2-1/2″ have forged bases.
  • Entire Clip-Galvanized to resist corrosive and rusting action.
  • All Clips are individually bagged or tagged with proper application instructions and warning information.
  • Clip sizes up through 1-1/2″ have rolled threads.

Crosby Clips, all sizes 1/4˝ and larger, meet the performance requirements of Federal Specification FF-C-450 TYPE 1 G-450 CLASS 1, except for those provisions required of the contractor.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Rope Size (in) CERTEX

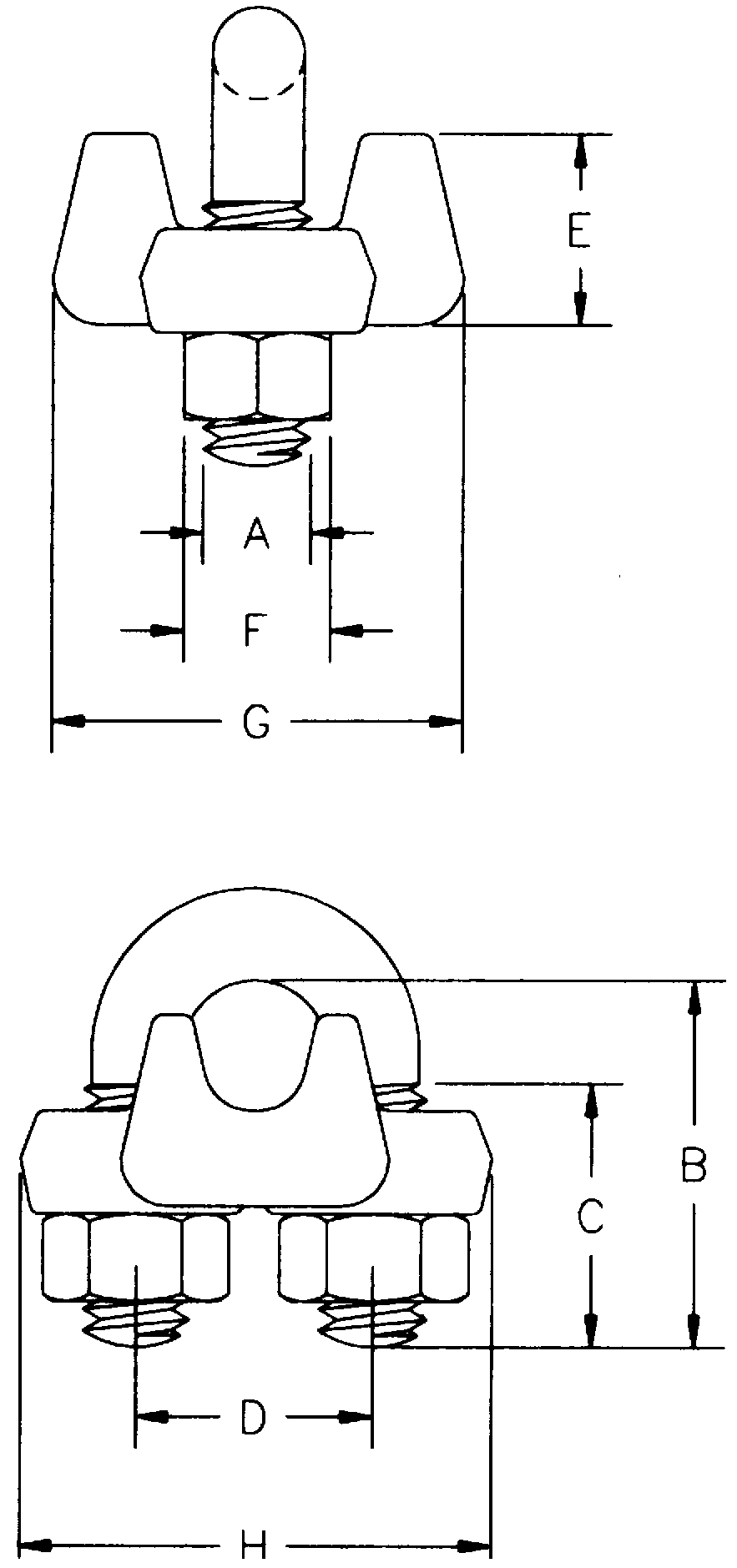

Cat. Ref. No.		 Crosby Stock No. Galv. Dimensions (in.)
A B C D E F G H
*1/8 CX04-0001 1010015 .22 .72 .44 .47 .41 .38 .81 .94
*3/16 CX04-0002 1010033 .25 .97 .56 .59 .50 .44 .94 1.15
1/4 CX04-0003 1010051 .31 1.03 .50 .75 .66 .56 1.19 1.44
5/16 CX04-0004 1010079 .38 1.38 .75 .88 .72 .69 1.31 1.69
3/8 CX04-0005 1010097 .44 1.50 .75 1.00 .91 .75 1.63 1.94
7/16 CX04-0006 1010113 .50 1.88 1.00 1.19 1.03 .88 1.81 2.28
1/2 CX04-0007 1010131 .50 1.88 1.00 1.19 1.13 .88 1.91 2.28
9/16 CX04-0008 1010159 .56 2.25 1.25 1.31 1.22 .94 2.06 2.50
5/8 CX04-0009 1010177 .56 2.38 1.25 1.31 1.34 .94 2.06 2.50
3/4 CX04-0010 1010195 .62 2.75 1.44 1.50 1.41 1.06 2.25 2.84
7/8 CX04-0011 1010211 .75 3.12 1.62 1.75 1.59 1.25 2.25 3.16
1 CX04-0012 1010239 .75 3.50 1.81 1.88 1.78 1.25 2.44 3.47
1-1/8 CX04-0013 1010257 .75 3.88 2.00 2.00 1.91 1.25 2.63 3.59
1-1/4 CX04-0014 1010275 .88 4.25 2.13 2.31 2.19 1.44 2.81 4.13
1-3/8 CX04-0015 1010293 .88 4.63 2.38 2.38 2.31 1.44 3.13 4.19
1-1/2 CX04-0016 1010319 .88 4.94 2.62 2.59 2.44 1.44 3.41 4.44
1-5/8 CX04-0017 1010337 1.00 5.31 2.62 2.75 2.66 1.63 3.63 4.75
1-3/4 CX04-0018 1010355 1.13 5.75 2.75 3.06 2.94 1.81 3.81 5.28
2 CX04-0019 1010373 1.25 6.44 3.00 3.38 3.28 2.00 4.44 5.88
2-1/4 CX04-0020 1010391 1.25 7.13 3.19 3.88 3.19 2.00 4.50 6.38
2-1/2 CX04-0021 1010417 1.25 7.69 3.44 4.13 3.69 2.00 4.05 6.63
† 2-3/4 CX04-0022 1010435 1.25 8.31 3.56 4.38 4.88 2.00 5.00 6.88
3 CX04-0023 1010453 1.50 9.19 3.88 4.75 4.69 2.38 5.88 7.63
† 3-1/2 CX04-0024 1010426 1.50 10.75 4.50 5.50 6.00 2.38 6.19 8.38

*Electro-plated U-Bolt and Nuts
† 2-3/4″ and 3-1/2″ base is made of cast steel

Wire Rope Terminations Information
