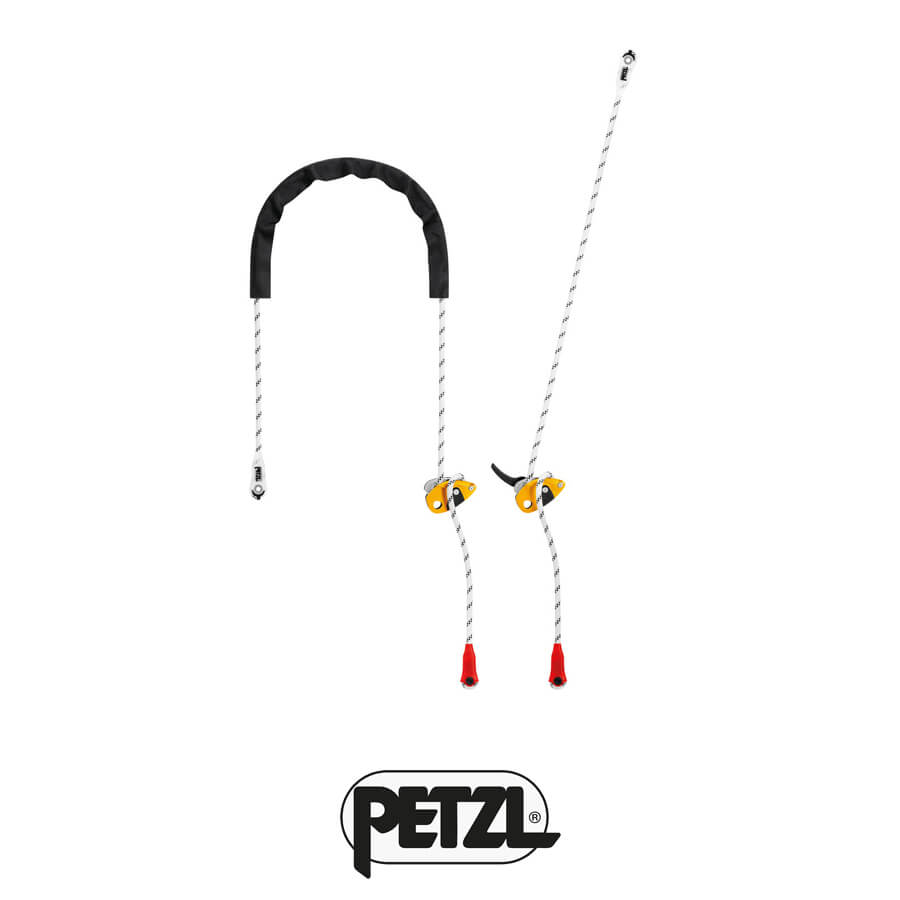

Petzl GRILLON Adjustable Work Positioning Lanyard

Adjustable Lanyard for Work Positioning

The GRILLON adjustable lanyard is used to make work positioning systems, to complement a fall-arrest system. Its length can be very easily and precisely adjusted as necessary for comfortable positioning at the work station. Depending on the configuration, it can be used in single or double mode. GRILLON is available in seven lengths (2, 3, 4, 5, 10, 15 and 20 m), and also in black. It is certified to North American, European and Russian standards.

EMAIL PAGE

WARNINGS & CAUTIONS

Description

Easy to use: the fine adjustment system allows length to be precisely adjusted for comfortable positioning at a work station
Can be used in two ways:
– double mode (on the harness side attachment points) when the user works with weight on his/her feet. This type of attachment ensures better load distribution on the belt. Length is adjusted by pressing on the pivoting cam
– single mode, on the harness ventral attachment point, when the anchor is located above the user, so that the load is comfortably distributed between the belt and leg loops. Length is adjusted by operating the handle, while holding the free end of the lanyard
Sewn terminations on both ends with plastic sheath to keep the connector in position and protect the rope from abrasion
Protective sheath protects the rope from abrasive contact and enhances rope glide. This protection can be removed for single mode use, to bring the user closer to the anchor
Available in seven lengths: 2, 3, 4, 5, 10, 15 and 20 m. Lanyard length is immediately identified by a color-coded label at the connector end
Available in two colors: white/yellow and black
Replacement ropes available

Specifications

Material(s): nylon, polyester, aluminum
Certification(s): ANSI Z359.3, CSA Z259.11, CE EN 358, CE EN 12841 type C, EAC, UKCA, GB 24543 / WQX

References

References	L052AA00	L052AA01	L052AA02	L052AA03	L052AA04	L052AA05
Length	2 m	3 m	4 m	5 m	10 m	15 m
Color(s)	white/yellow	white/yellow	white/yellow	white/yellow	white/yellow	white/yellow
Weight	480 g	560 g	640 g	720 g	1075 g	1475 g
Guarantee	3 years	3 years	3 years	3 years	3 years	3 years
Inner Pack Count	1	1	1	1	1	1

References	L052AA06	L052AA07	L052AA08
Length	20 m	2 m	3 m
Color(s)	white/yellow	black	black
Weight	1875 g	480 g	560 g
Guarantee	3 years	3 years	3 years
Inner Pack Count	1	1	1

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
