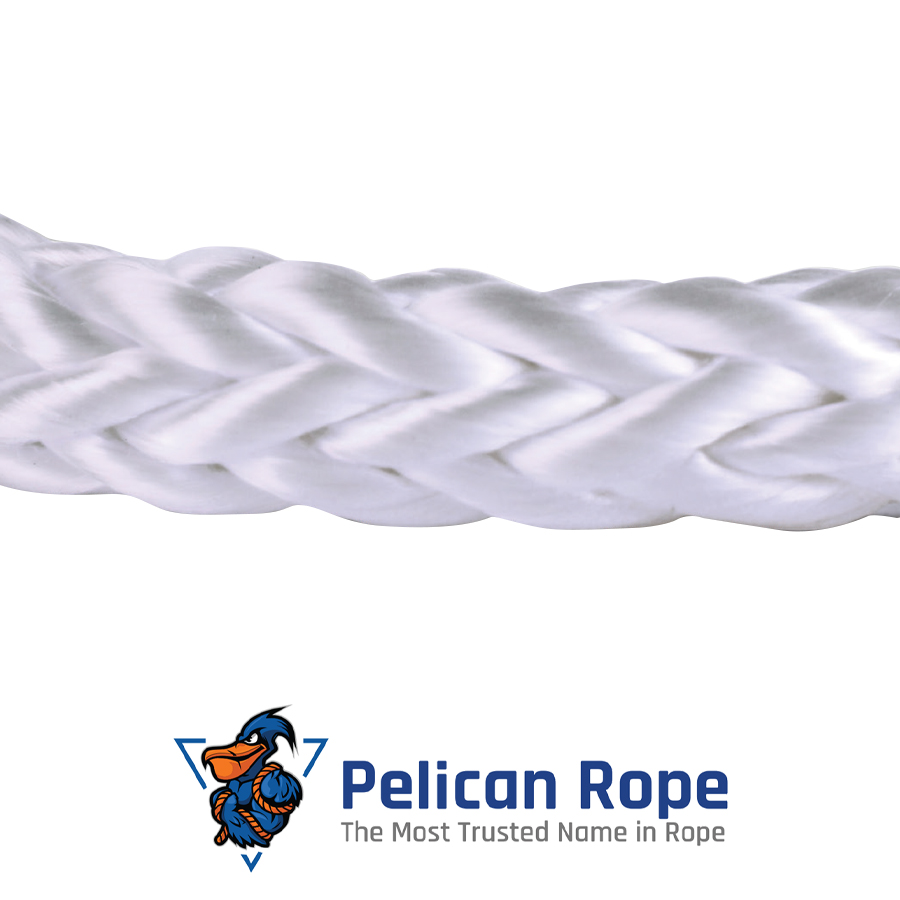

Pelican Rope 12-Strand Single Braid Polyester Rope

Pelican Rope 12-Strand Single Braid Polyester Rope
  • Abrasion Resistance
  • Easy to Splice
  • Torque-Free
  • Low-Stretch
  • Good Flex Fatigue
  • Pelican Tuff™ urethane coating available upon request
  • Optional Pelican Tuff™ Coating Colors available: Red, Orange, Yellow, Green, Blue, Gray, Black
  • Available by the mile
  • Eye Option: Spliced (SE)
  • Ideal For: Distribution and Transmission, Rigging, Towing, Utility

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

This versatile high tenacity rope offers the lowest stretch of all polyester ropes. The quality of construction provides a torque-free rope, eliminating kinks and hockles. 12-strand single braids provide easy in-the-field splicing for greater reduction of downtime and have a melting point between 489-500°F with a loss of strength between 244-250°F.

SKU DIAMETER (IN) TENSILE STRENGTH (LBS) WEIGHT/100′ (LBS)
7PE-080 1/4 3,200 1.9
7PE-100 5/16 4,700 3
7PE-120 3/8 6,100 4.1
7PE-140 7/16 9,000 6.7
7PE-160 1/2 12,500 8.3
7PE-200 5/8 18,000 12
7PE-240 3/4 24,000 16.8
7PE-280 7/8 34,000 22
7PE-320 1 40,000 28



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
