OZ Lifting Dyno-Hoist® 1.5 T Dyno Lever Hoist 15 ft lift

OZ Lifting Dyno-Hoist® 1.5 T Dyno Lever Hoist 15 ft lift
  • Integrated dynamometer displays load weight in kg or lb, with an “OVER” indicator for loads exceeding 126% of capacity
  • All-steel construction
  • Steel handle with rubber grip
  • Grade 80 zinc-plated load chain for increased resistance to wear and corrosion
  • Forged alloy steel hooks for superior strength and reliability
  • Fully enclosed gearing ensures protection from contamination and debris
  • Minimal load-lifting effort for easier handling of heavy loads
  • Long-lasting powder coat finish for added durability and corrosion resistance
  • Heavy-duty latches for secure and reliable operation
  • Load sheave bearings for smooth, efficient lifting
  • Weston-style brake system for secure load-holding
  • Individual test certificate and serial number for traceability
  • Free spare set of latches included for convenience

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Custom rigging available. Standards – CE, ASME B30.21, AS1418.2



With a 1.5 T capacity, the Dyno-Hoist® integrates a dynamometer to display load weight in kg or lb and provide alerts if loads surpass 126% of its rated capacity. It features all-steel construction, a steel handle with a rubber grip, and a zinc-plated load chain for reliable performance. Ideal for non-trade use, this hoist boasts long battery life, fully enclosed gearing, and durable heavy-duty latches, ensuring minimal effort and dependable operation.

NOTE: Includes two rechargeable Nickel-Metal NiMH batteries; also compatible with standard AA alkaline batteries.

Part Number Description Capacity (Tons)
OZDH150-15LH 1.5 T Dyno Lever Hoist 15 ft lift 1.5

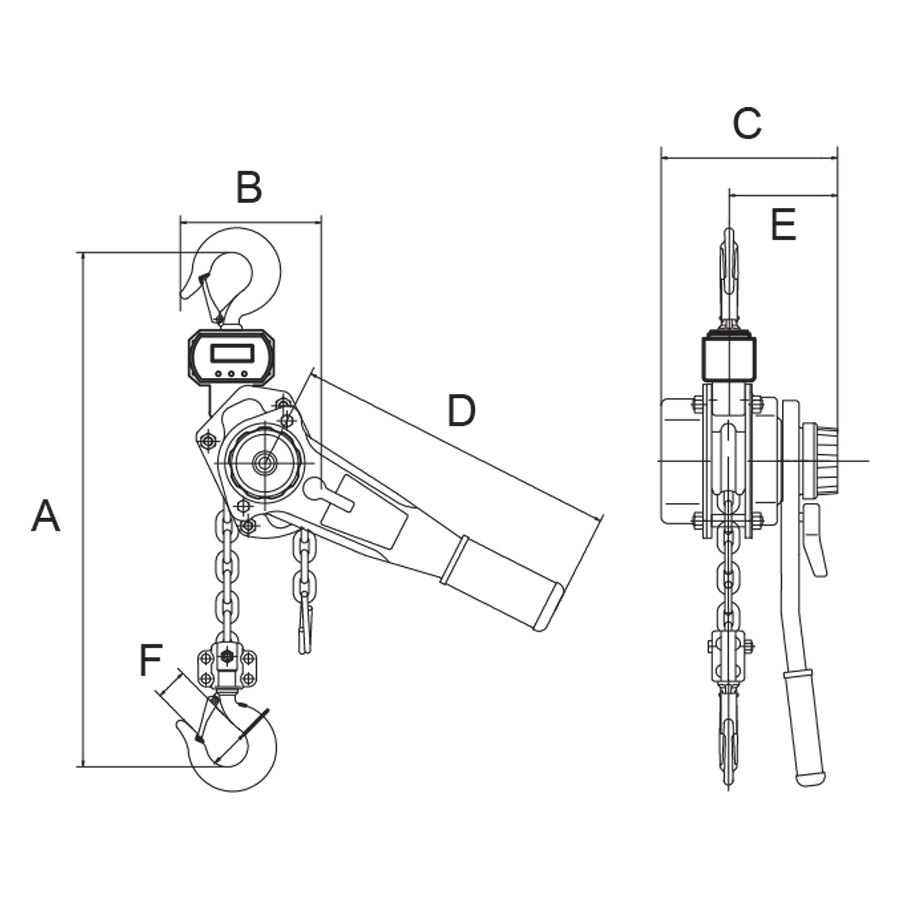

Effort to Lift S.W.L – lb (kg) Falls of Chain Load Chain Diameter – in (mm) Dimensional Information – in (mm) Hook-opening, Upper & Lower – in (mm) Net Weight of Head Only – lb (kg)
A B C D E F
49.5 (22.50) 1 0.31×0.94 (8×24) 16.73 (424.94) 5.91 (150.11) 6.89 (175.01) 16.14 (409.96) 3.94 (100.08) 1.42 (36.07) 1.42 (36.07) 27.94 (12.70)



IMPORTANT! *Dimensions, weights, and illustrations are for reference only and subject to change without notice.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
