OZ Lifting 500lb Electric Chain Hoist with 20ft of Lift

OZ Lifting 500lb Electric Chain Hoist with 20ft of Lift
  • Overload protection with a high-performance friction clutch
  • Forged carbon steel hooks, with bottom hook rotation to prevent chain twisting
  • Load sheave reduces vibration and wear for smooth lifting
  • Precision-machined, heat-treated gears with oil bath lubrication
  • Dual braking system for instant and safe operation
  • Grade 80 case-hardened alloy steel chain for long service life
  • H3 duty class with 30% duty cycle for versatile applications
  • Operates on standard 115V power for easy use
  • Options for corded pendant or wireless remote control
  • Ergonomic IP64 pendant or remote controls with emergency stop
  • Lightweight, compact aluminum body
  • Includes durable vinyl chain bag
  • Individual serial number and test certificate

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Standards – CE, FCC



Introducing the Electric Chain Hoist from OZ Lifting Products, a compact yet powerful solution for your lifting needs. With a 500 lb capacity, this hoist excels in precision and performance. It features a wired pendant for straightforward, reliable control and is designed with precision-machined gears for smooth operation. The dual braking system enhances safety, ensuring secure lifting in any environment. Operating on a standard 115V power source, the Electric Chain Hoist combines lightweight construction with robust functionality, making it ideal for various applications.

Part Number Description Capacity (lbs)
OZ500EC Electric Chain Hoist 500

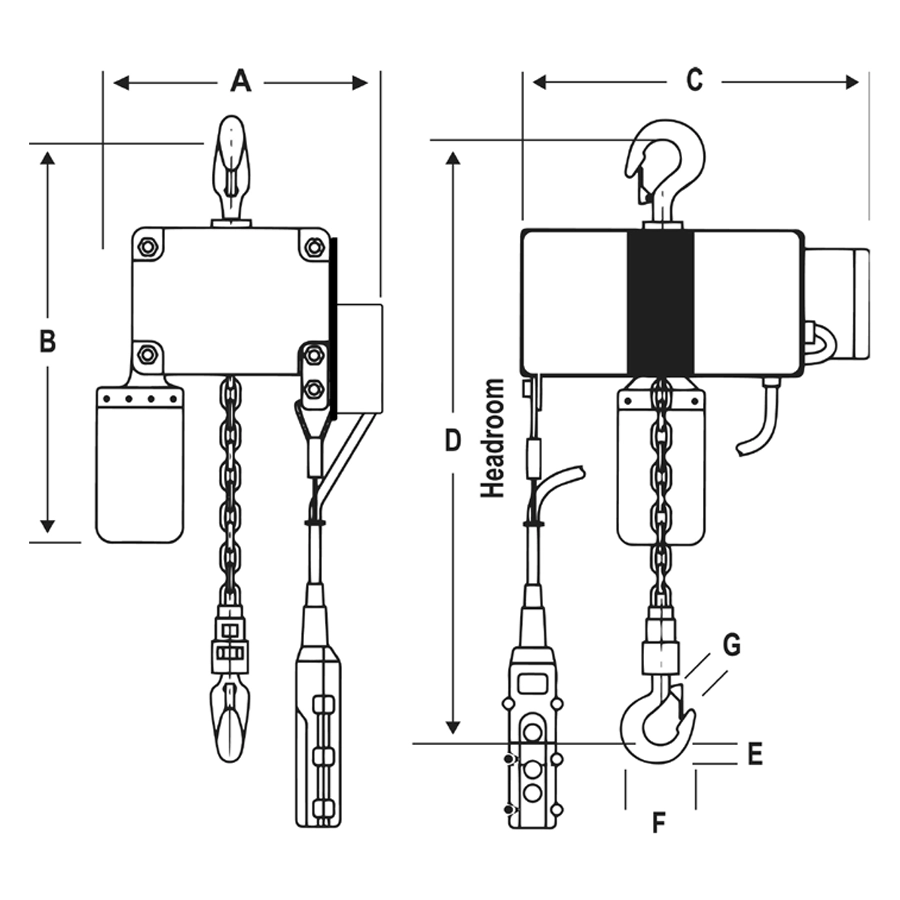

Dimensional Information – in (mm)
A B C D E F G
5 (127) 15 (381) 9.5 (241.3) 11 (279.4) 0.6 (15.24) 2.5 (63.5) 0.75 (19.05)



Voltage 115 / 1 /60
Capacity – lb (kg) 500 (227.27)
Falls of Chain 1
Speed – FPM (mpm) 12.50 (3.81)
Motor 0.25 HP
Motor KW 180W/4A
Standard Lift – ft (m) 20 (6.10)
Duty Cycle (min) 15 (25%)
Pendant Length – ft (m) 15 (4.57)
Power Cord Length – ft (m) 15 (4.57)
Net Weight – lb (kg) 18 (8.18)
Wireless NO



ASME Duty Classes Service Classification Description
H1 Infrequent or Standby Idle 1-6 months, use for installations and/or maintenance
H2 Light Light maintenance, fabrication, capacity loads infrequently handled, randomly distributed loads, low running time
H3 Standard General machining, randomly distributed loads, total running time ≤25% of working period
H4 Heavy High volume handling of heavy loads near rated capacity, steel warehousing, machining, foundries, total running time ≤50% of working period
H5 Severe Bulk material handling with attachments, approach continuous operation



IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
