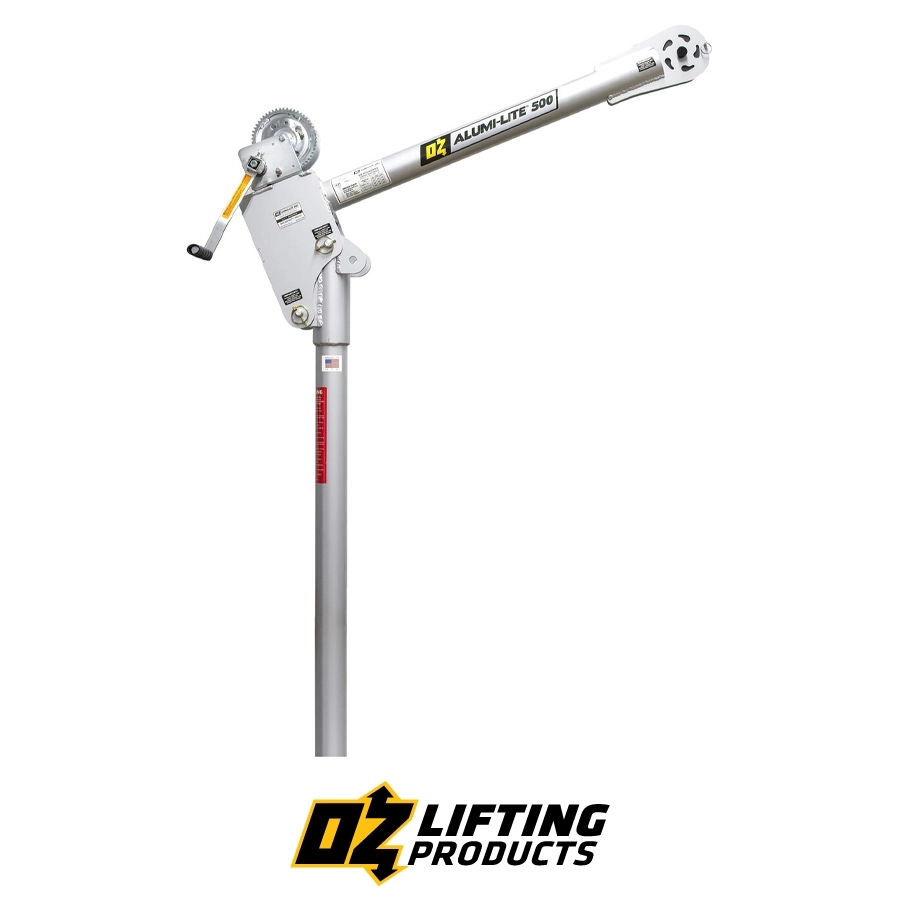

OZ Lifting 500lb Alumi-Lite® Davit Crane with Carbon Steel Brake Winch

OZ Lifting 500lb Alumi-Lite® Davit Crane with Carbon Steel Brake Winch
  • 500 lb capacity rating
  • Ultra-lightweight
  • Aerospace-grade aluminum construction
  • Durable powder-coated finish
  • 360-degree rotation
  • 3 boom height adjustments
  • No tools required for assembly and installation
  • Manual DIN-rated CE winch with integrated Weston brake (Includes quick connect winch handle with drill drive adapter)
  • AC & DC winch options available
  • Pedestal, wall mount, socket, and wheel bases sold separately
  • Individually tested and certified at 125%
  • Made in USA
Contact Your Local Branch To Learn More

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Our Alumi-Lite® 500 Davit Crane combines ultra-lightweight strength with unmatched portability. This versatile crane features adjustable boom heights, 360-degree rotation, and manual carbon steel brake winch with drill drive adapter. Ideal for various lifting tasks, it’s easy to assemble and transport. Experience the perfect balance of performance and convenience.



NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.

Part Number Description Capacity (lbs)
OZA500DAV Davit Crane with Carbon Steel Brake Winch 500

Product Weight

Boom Mast Net
OZA500DAV – lb (kg) 12 (5.45) 12 (5.45) 24 (10.91)

* Weights excluding winch



Load Ratings

Based on 3/16″ wire rope
First Layer Mid Drum Full Drum
Position 1 (0°) – lb (kg) 275 (125) 275 (125) 275 (125)
Position 2 (+22.5°) – lb (kg) 330 (150) 330 (150) 330 (150)
Position 3 (+45°) – lb (kg) 500 (227.27) 500 (227.27) 500 (227.27)



Crane Reactions/Moments

Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
OZA500DAV 11,781 1,331 1/2″ Grade 5 (M12)
Floor Mount Base Wall Mount Base
Model Axial Force per Bolt – lb (kg) Axial Force per Bolt (N) Axial Force per Bolt – lb (kg) Axial Force per Bolt (N) Shear Force per Bolt – lb (kg) Shear Force per Bolt (N)
OZA500DAV 771 (350.45) 3,431 779 (354.09) 3,467 561 (255) 2,494



IMPORTANT!

Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.

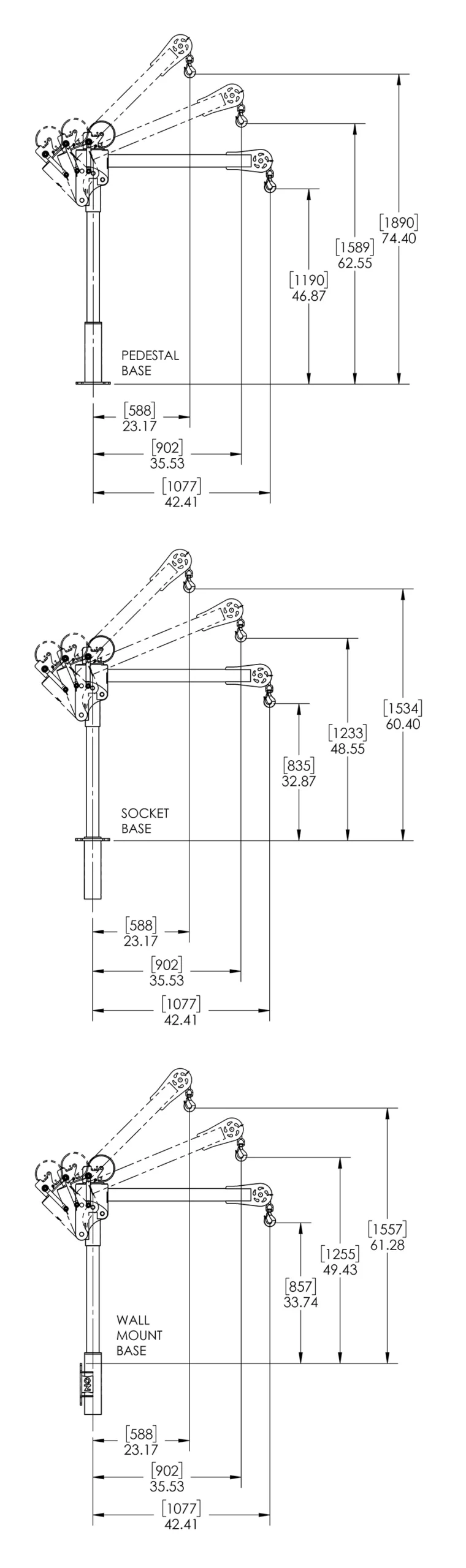

*Dimensions, weights, and illustrations are for reference only and subject to change without notice.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
