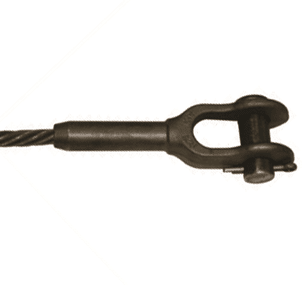

| PART NUMBER | ROPE SIZE | WEIGHT/PIECE | PIN WEIGHT | PIN DIAMETER | A | B1 |
|---|---|---|---|---|---|---|
| 4002382 | 5/16″ | 1.7 | .50 | 13/16″ | 1 11/16″ | 1 5/8″ |
| 4181353 | 3/8″ | 1.7 | .50 | 13/16″ | 1 11/16″ | 1 5/8″ |
| 4181354 | 7/16″ | 3 | .75 | 1″ | 2″ | 2″ |
| 4179732 | 1/2″ | 3 | .75 | 1″ | 2″ | 2″ |
| 4002388 | 9/16″ | 5 | 1 | 1 3/16″ | 2 1/2″ | 2 3/8″ |
| 4002391 | 5/8″ | 5 | 1 | 1 3/16″ | 2 1/2″ | 2 3/8″ |
| 4002393 | 3/4″ | 9 | 1.50 | 1 3/8″ | 3″ | 2 3/4″ |
| 4002395 | 7/8″ | 11.5 | 2.50 | 1 5/8″ | 3 1/2″ | 3 1/4″ |
| 4002397 | 1″ | 19 | 4.50 | 2″ | 4″ | 3 3/4″ |
| 4002400 | 1 1/8″ | 24 | 6 | 2 1/4″ | 4 1/2″ | 4 1/4″ |
| PART NUMBER | B2 | OVERALL LENGTH C | PIN HOLE D | DIE E | F | DECCRIPTION |
|---|---|---|---|---|---|---|
| 4002382 | 13/16″ | 6″ | 7/8″ | 2″ | 1 3/4″ | 3/8 OC |
| 4181353 | 13/16″ | 6″ | 7/8″ | 2″ | 1 3/4″ | 3/8 OC |
| 4181354 | 1″ | 7 5/16″ | 1 1/16″ | 3″ | 2″ | 1/2 OC |
| 4179732 | 1″ | 7 5/16″ | 1 1/16″ | 3″ | 2″ | 1/2 OC |
| 4002388 | 1 1/4″ | 8 7/8″ | 1 1/4″ | 3 5/8″ | 2 1/4″ | 5/8 OC |
| 4002391 | 1 1/4″ | 8 7/8″ | 1 1/4″ | 3 5/8″ | 2 1/4″ | 5/8 OC |
| 4002393 | 1 7/16″ | 10 3/8″ | 1 7/16″ | 4 1/8″ | 2 3/4″ | 3/4 OC |
| 4002395 | 1 3/4″ | 12 1/2″ | 1 11/16″ | 5 1/2″ | 3 1/4″ | 3/4 OC |
| 4002397 | 2″ | 14 1/4″ | 2 1/16″ | 6 1/2″ | 3 3/4″ | 7/8 OC |
| 4002400 | 2 1/4″ | 17 7/8″ | 2 5/16″ | 9″ | 4 1/4″ | 1 OC |
| STOCK NUMBER |
ROPE DIA. | DIMENSIONS IN INCHES | WEIGHT (LBS.) | MIN. | MAX. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | D | E | F | H | L | M | O | Y | |||||
| 40025002 | 1/4” | 0.495 | 0.272 | 0.688 | 1 1/2 | 4 3/4 | 2 1/8 | 4 | 5/16 | 11/16 | 1 3/8 | 0.57 | 0.428 | 0.460 |
| 40031302 | 5/16” | 0.770 | 0.339 | 0.812 | 1 3/4 | 6 1/4 | 3 3/16 | 5 5/16 | 13/32 | 13/16 | 1 5/8 | 1.25 | 0.678 | 0.710 |
| 40037502 | 3/8” | 0.770 | 0.406 | 0.812 | 1 3/4 | 6 1/4 | 3 3/16 | 5 5/16 | 13/32 | 13/16 | 1 5/8 | 1.20 | 0.678 | 0.710 |
| 40043802 | 7/16” | 0.982 | 0.484 | 1.000 | 2 | 7 13/16 | 4 1/4 | 6 11/16 | 1/2 | 1 | 2 | 2.45 | 0.865 | 0.910 |
| 40050002 | 1/2” | 0.982 | 0.547 | 1.000 | 2 | 7 13/16 | 4 1/4 | 6 11/16 | 1/2 | 1 | 2 | 2.40 | 0.865 | 0.910 |
| 40056302 | 9/16” | 1.257 | 0.609 | 1.190 | 2 1/4 | 9 9/16 | 5 5/16 | 8 1/8 | 5/8 | 1 1/4 | 2 1/2 | 4.80 | 1.115 | 1.160 |
| 40062502 | 5/8” | 1.257 | 0.672 | 1.190 | 2 1/4 | 9 9/16 | 5 5/16 | 8 1/8 | 5/8 | 1 1/4 | 2 1/2 | 4.50 | 1.115 | 1.160 |
| 40075002 | 3/4” | 1.545 | 0.796 | 1.380 | 2 3/4 | 11 11/16 | 6 3/8 | 10 | 3/4 | 1 1/2 | 3 | 7.80 | 1.365 | 1.420 |
| 40087502 | 7/8” | 1.700 | 0.938 | 1.630 | 3 1/4 | 13 5/8 | 7 7/16 | 11 5/8 | 15/16 | 1 3/4 | 3 3/8 | 11.80 | 1.490 | 1.550 |
| 40100002 | 1” | 1.975 | 1.062 | 2.000 | 3 1/4 | 15 5/8 | 8 1/2 | 13 3/8 | 1 1/32 | 2 | 4 | 17.80 | 1.740 | 1.800 |
| 40112502 | 1 1/8” | 2.245 | 1.188 | 2.250 | 4 1/4 | 17 1/2 | 9 9/16 | 15 | 1 3/16 | 2 1/4 | 4 1/2 | 28.90 | 1.990 | 2.050 |
| 40125002 | 1 1/4” | 2.525 | 1.328 | 2.500 | 4 3/4 | 19 7/16 | 10 5/8 | 16 1/2 | 1 3/16 | 2 1/2 | 5 | 36.20 | 2.240 | 2.300 |
| 40150002 | 1 1/2″ | 3.075 | 1.578 | 2.750 | 5 3/4 | 23 1/4 | 12 3/4 | 19 3/4 | 1 7/16 | 3 | 5 3/4 | 64.40 | 2.740 | 2.560 |
