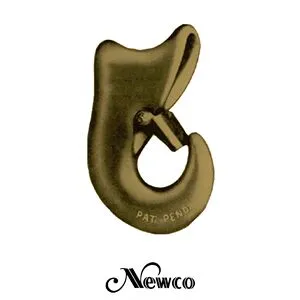

This hook is designed to choke a secure hold on a load in position.
A latch prevents the eye of the sling from disengaging from the hook.
Sizes available 3/8” thru 3/4”.
Latch Kits Available
| CERTEX Cat. Ref. No. | HOOK NO. | ROPE SIZE | WT. LBS. | W.W.L. | THIMBLE SIZE | A | B | C | D | ER | F | G | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CX05-0123 | S 3/8 | 3/8 | 1 1/4 | 2,600 | 3/8 | 11/16 | 11/16 | 5/8 | 2 | 7/16 | 11/16 | 3 1/8 | 4 1/4 |
| CX05-0124 | S 1/2 | 1/2 | 1 3/4 | 3,400 | 1/2 | 3/4 | 3/4 | 7/8 | 2 1/8 | 1/2 | 3/4 | 3 5/8 | 4 13/16 |
| CX05-0125 | S 5/8 | 5/8 | 3 1/4 | 5,100 | 5/8 | 7/8 | 7/8 | 1 1/8 | 2 3/4 | 9/16 | 15/16 | 4 7/16 | 5 15/16 |
| CX05-0126 | S 3/4 | 3/4 | 5 | 8,000 | 3/4 | 1 | 1 | 1 1/8 | 3 1/8 | 11/16 | 1 1/4 | 4 11/16 | 6 7/16 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
