NEWCO sliding hooks afford faster handling on factory made slings for handling pipe, logging, machinery, and in stevedoring. Its free movement permits rapid adjustment of the sling to varying sized loads. “Saddle is rounded to minimize wear” Hook opening is large enough to take a galvanized plow steel thimble the same size as hook size.
All Choker Hooks manufactured by Newco Mfg. Co., Inc., used in any other way than the Choker Configuration, will not be warrantied.

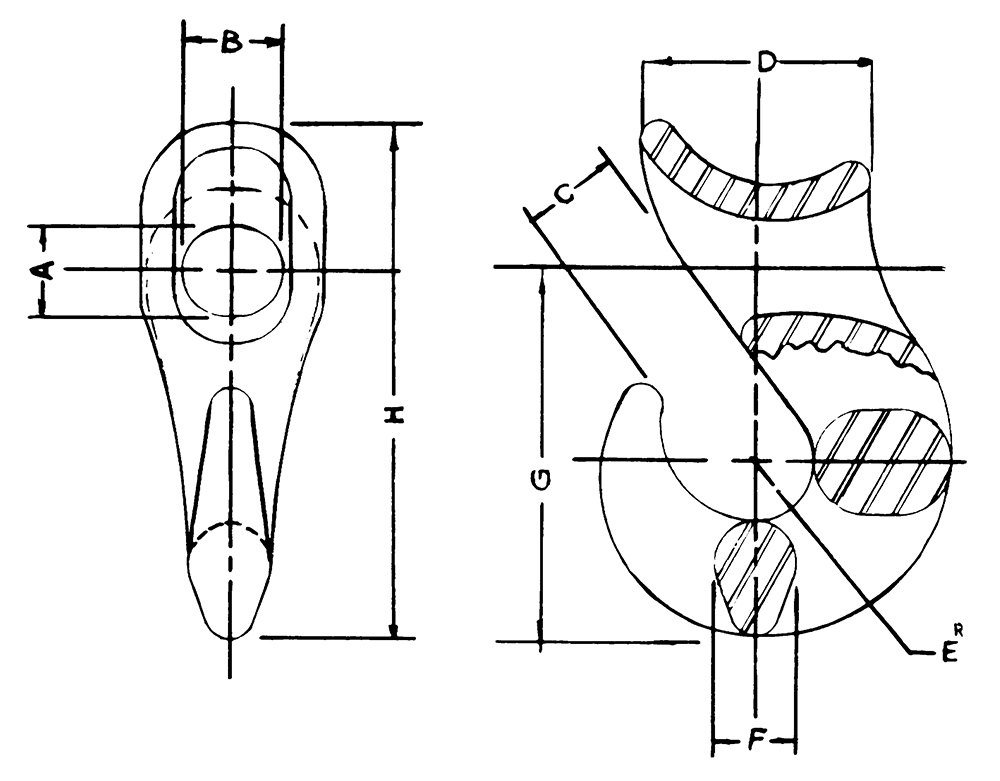

| CERTEX Cat. Ref. No. | HOOK NO. | 6 PARTS | WT. LBS. | 8 PARTS | W.L.L. | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CX05-0106 | 0 | 3/32 | 1 | 1/16 | 1,500 | 9/16 | 9/16 | 1/2 | 1 3/4 | 3/8 | 5/8 | 2 3/4 | 3 3/4 |
| CX05-0107 | 1 | 1/8 | 1.4 | 3/32 | 2,600 | 11/16 | 11/16 | 5/8 | 2 | 7/16 | 11/16 | 3 1/8 | 4 1/4 |
| CX05-0108 | 2 | 3/16 | 1.75 | 1/8 | 3,400 | 13/16 | 15/16 | 7/8 | 2 1/8 | 17/32 | 3/4 | 3 11/32 | 4 11/16 |
| CX05-0109 | 3 | – | 3.25 | 3/16 | 5,100 | 1 3/16 | 1 1/4 | 1 1/16 | 2 3/4 | 5/8 | 15/16 | 3 31/32 | 5 5/8 |
| CX05-0110 | 4 | 1/4 | 5 | 1/4 | 7,000 | 1 7/16 | 1 7/16 | 1 5/32 | 3 | 5/8 | 1 1/8 | 4 5/8 | 6 1/4 |
| CX05-0111 | 5 | 5/16 | 6.5 | 5/16 | 13,000 | 1 3/4 | 1 3/4 | 1 7/16 | 3 1/8 | 3/4 | 1 3/8 | 5 1/16 | 7 3/16 |
| CX05-0112 | 6 | 3/8 | 11 | 3/8 | 15,000 | 2 | 2 | 1 17/32 | 4 1/4 | 7/8 | 1 9/16 | 6 5/16 | 8 5/8 |
| CX05-0113 | 7 | 7/16 | 26 | 7/16 | 23,000 | 2 5/16 | 2 5/16 | 1 3/4 | 5 5/8 | 1 | 1 3/4 | 8 11/16 | 11 5/8 |
| CX05-0114 | 8 | 1/2-9/16 | 50 | 1/2 | 30,000 | 2 13/16 | 2 13/16 | 2 3/16 | 7 | 1 1/4 | 2 | 10 5/8 | 14 1/2 |
* Manganese Bronze Alloy
