Modulift MOD 6 Spreader Beam

Modulift MOD 6 Spreader Beam

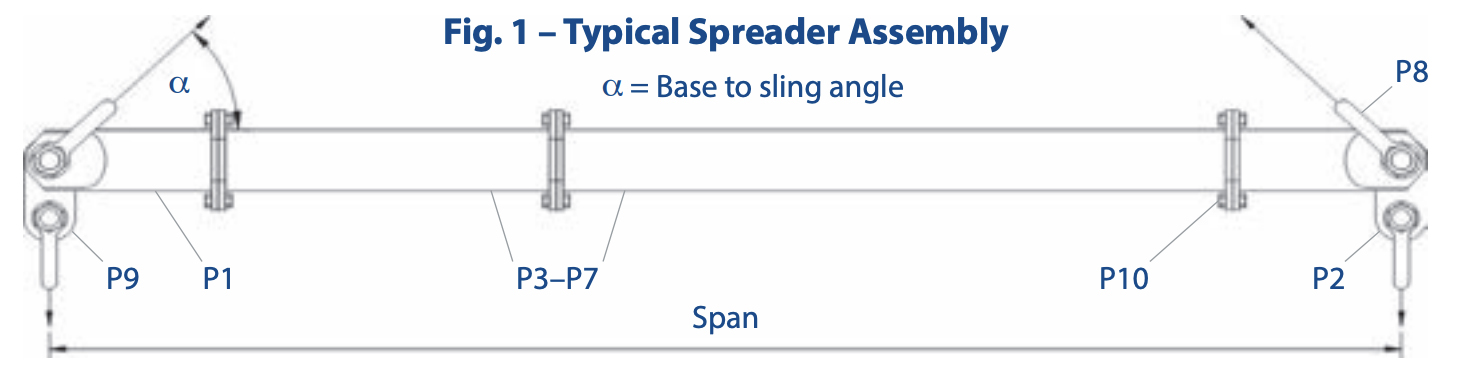

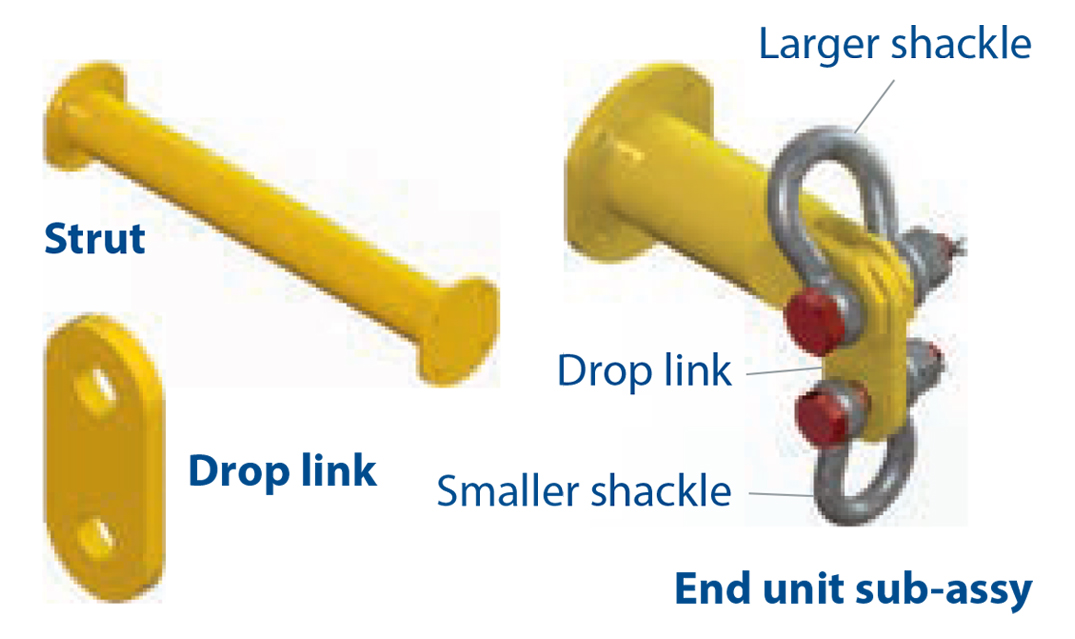

The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and Drop Links,
with intermediate struts that can be bolted into the assembly to achieve dierent spans.
MOD 6 has an assembled span ranging from 16 inches to 176 inches in 4 inch increments.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
  • Rated at 6 tonnes SWL at 112 inch span.
    (60° BSA). See Load Table for SWL at longer spans.
  • ‘Base to Sling’ angle, α, 45 degrees or more.
  • End Units & Drop Links are rated at 3 tonnes WLL each (6 tonnes combined capacity)
  • Bolt tightening torque: 44 Pound-Foot. Spanner size required: 17mm
  • Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner

Part Ref. Description Weight/item
P1 End Unit 7 lbs
P2 Drop Link 1.3 lbs
P3 40″ Strut 18 lbs
P4 24″ Strut 12 lbs
P5 12″ Strut 8 lbs
P6 8″ Strut 6 lbs
P7 4″ Strut 5 lbs
P8 4.75t Shackle 2.6 lbs
P9 3.25t Shackle 1.6 lbs
P10 M10 x 30, Grade 8.8, HT Bolts, Nuts & Washers

● Personnel using this system should be suitably trained, competent and have a clear understanding of Safe Slinging procedures.

● The use of Modulift equipment must be in accordance with the procedures laid down in ‘ASME B30.20 – 2013’.

● Never exceed stated SWL – Adhere to SWL in Table 2 for particular sling angle used.

● The top sling length is critical to the safe use of the spreader – Adhere to Table 2.

● Ensure Drop Links hang down, and smaller shackles are connected to bottom hole of Drop Link.

● Do not under any circumstances hang load(s) from the tube or anges – the spreader is designed for axial compression, not bending.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
