Modulift MOD 12 Spreader Beam

Modulift MOD 12 Spreader Beam

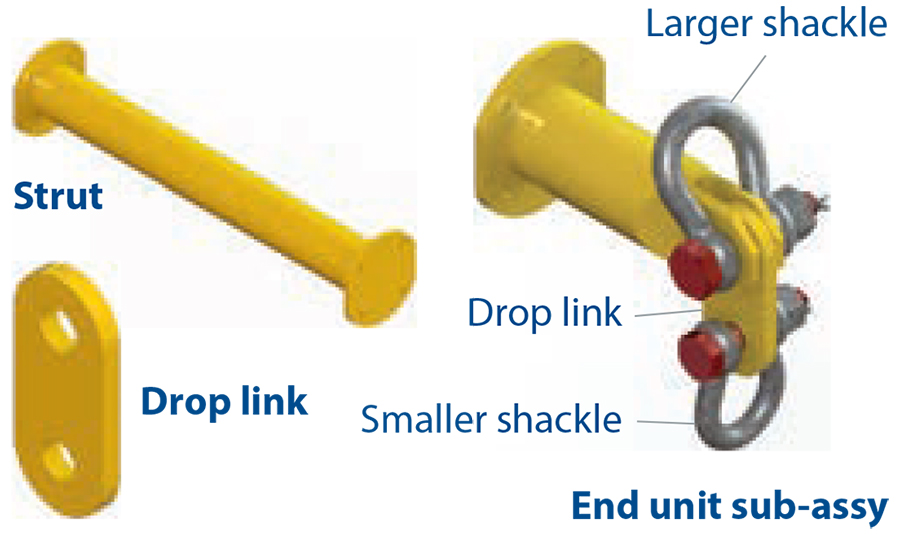

The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and Drop Links,
with intermediate struts that can be bolted into the assembly to achieve dierent spans.
MOD 12 has an assembled span ranging from 2ft to 21ft in 1ft increments.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
  • Rated at 12 tonnes SWL at 12ft span
    (60° BSA). See Load Table for SWL at longer spans.
  • ‘Base to Sling’ angle, α, 45 degrees or more.
  • End Units & Drop Links are rated at 6 tonnes WLL each (12 tonnes combined capacity)
  • Bolt tightening torque: 66 Pound-Foot. Spanner size required: 19mm.
  • Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.

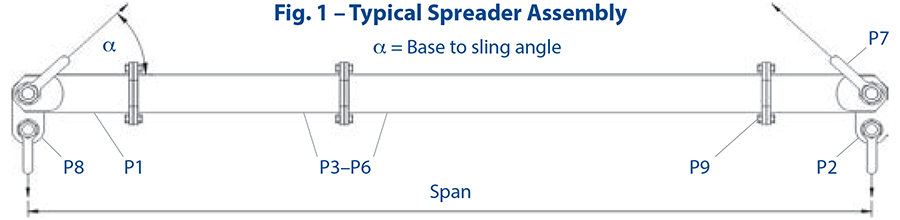

Part Ref. Description Weight/item
P1 End Unit 15 lbs
P2 Drop Link 2.7 lbs
P3 5ft Strut 42 lbs
P4 3ft Strut 28 lbs
P5 2ft Strut 21 lbs
P6 1ft Strut 14 lbs
P7 8.5t Shackle 5.7 lbs
P8 6.5t Shackle 3.9 lbs
P9 M12 x 35, Grade 8.8, HT Bolts, Nuts & Washers

● Personnel using this system should be suitably trained, competent and have a clear
understanding of Safe Slinging procedures.
● The use of Modulift equipment must be in accordance with the procedures laid down in
‘ASME B30.20 – 2013’.
● Never exceed stated SWL – Adhere to SWL in Table 2 for particular sling angle used.
● The top sling length is critical to the safe use of the spreader – Adhere to Table 2.
● Ensure Drop Links hang down, and smaller shackles are connected to bottom hole of Drop Link.
● Do not under any circumstances hang

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
