Modulift MOD 110H Spreader Beam

Modulift MOD 110H Spreader Beam

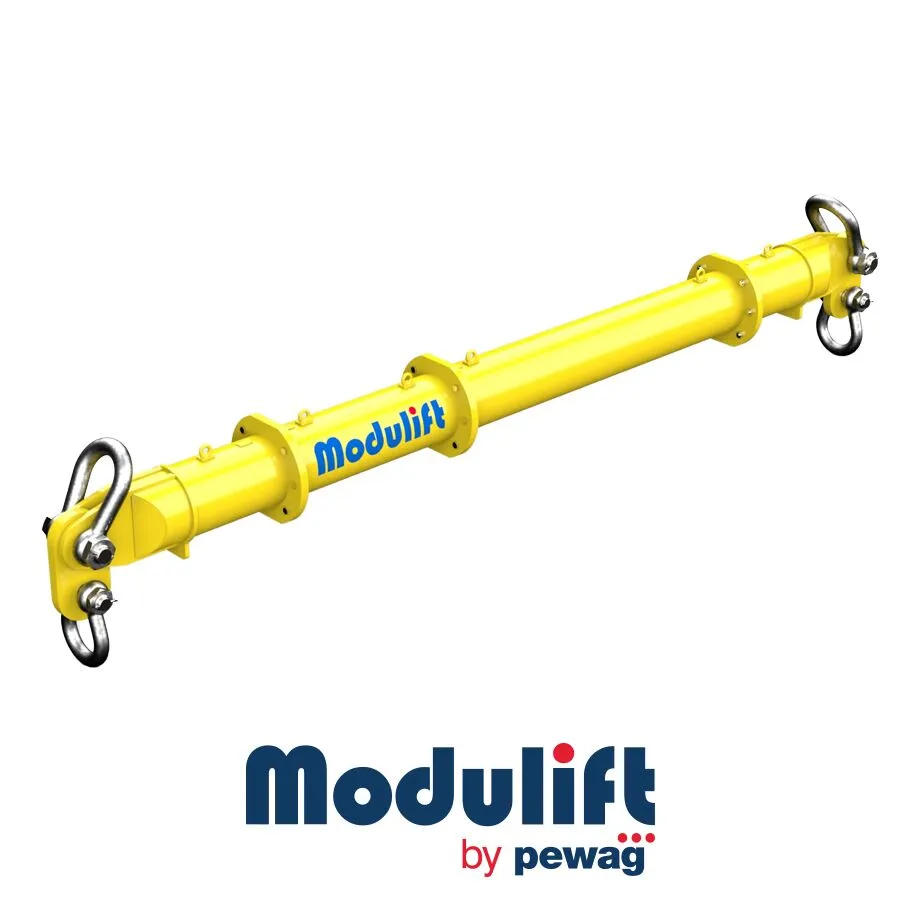

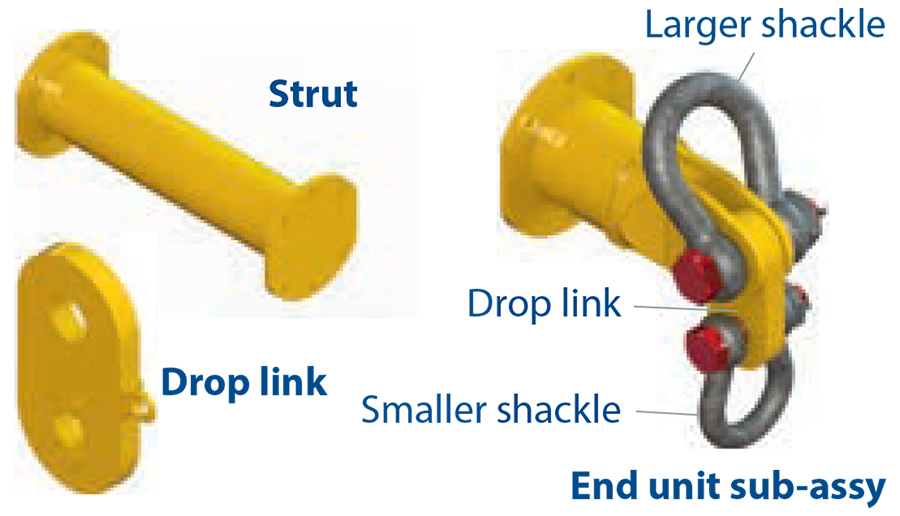

The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and Drop Links,
with intermediate struts that can be bolted into the assembly to achieve dierent spans.
MOD 110H has an assembled span ranging from 6ft to 59ft in 1ft increments.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
  • Rated at 170 tonnes SWL at 30ft span
    (60° BSA). See Load Table for SWL at longer spans.
  • ‘Base to Sling’ angle, α, 45 degrees or more.
  • End Units & Drop Links are rated at 85 tonnes WLL each (170 tonnes combined capacity).
  • Bolt tightening torque: 110 Pound-Foot. Spanner size required: 30mm.
  • Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.

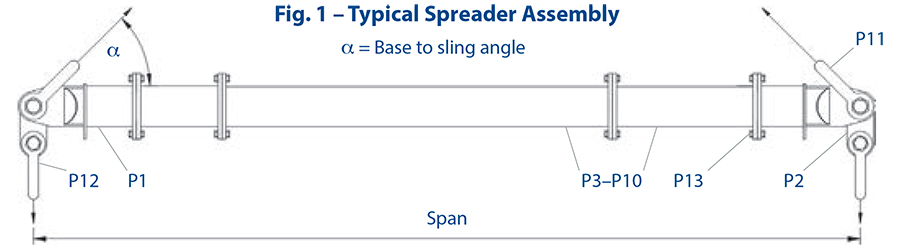

Part Ref. Description Weight/item
P1 End Unit 384 lbs
P2 Drop Link 171 lbs
P3 20ft Strut 1170 lbs
P4 12ft Strut 750 lbs
P5 10ft Strut 650 lbs
P6 8ft Strut 540 lbs
P7 6ft Strut 440 lbs
P8 4ft Strut 345 lbs
P9 2ft Strut 230 lbs
P10 1ft Strut 185 lbs
P11 120t Shackle 243 lbs
P12 85t Shackle 137 lbs
P13 M20 x 65 Grade 8.8 HT Bolts, Nuts & Washers

● Personnel using this system should be suitably trained, competent and have a clear
understanding of Safe Slinging procedures.
● The use of Modulift equipment must be in accordance with the procedures laid down in
‘ASME B30.20 – 2013’.
● Never exceed stated SWL – Adhere to SWL in Table 2 for particular sling angle used.
● The top sling length is critical to the safe use of the spreader – Adhere to Table 2.
● Ensure Drop Links hang down, and smaller shackles are connected to bottom hole of Drop Link.
● Do not under any circumstances hang load(s) from the tube or anges – the spreader is designed for
axial compression, not bending.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
