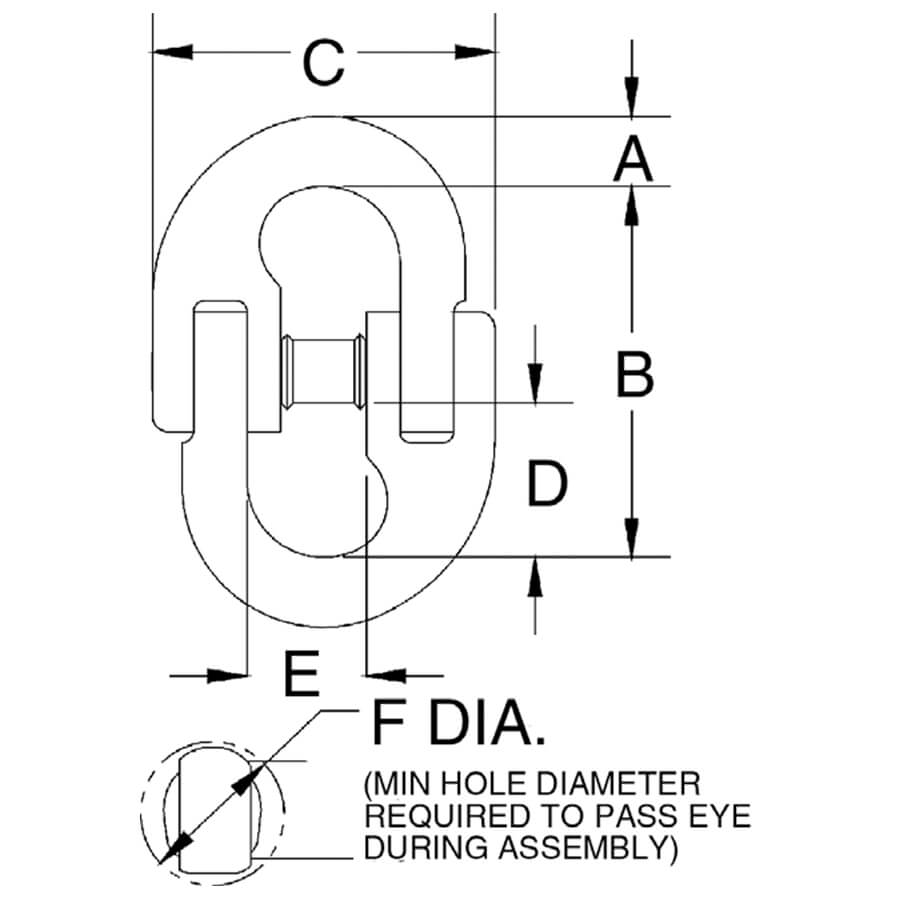

| Chain Size | A-1337 Stock No. | Pkg. Qty | Weight Each (lbs.) | Working Load Limit (lbs.)* | Dimensions (in.) | ||||||
| (in.) | (mm) | A | B | C | D | E | F | ||||
| 9/32 (1/4) | 7 | 1015104 | 60 | .26 | 4300 | .38 | 1.94 | 1.90 | .81 | .69 | .57 |
| 5/16 | 8 | 1015113 | 50 | .35 | 5700 | .37 | 2.35 | 2.07 | .99 | .72 | .64 |
| 3/8 | 10 | 1015122 | 40 | .75 | 8800 | .48 | 2.70 | 2.47 | 1.12 | .90 | .78 |
| 1/2 | 13 | 1015136 | 12 | 1.60 | 15000 | .68 | 3.45 | 3.31 | 1.44 | 1.12 | .97 |
| 5/8 | 16 | 1015145 | 10 | 2.68 | 22600 | .81 | 4.13 | 3.90 | 1.72 | 1.35 | 1.14 |
| 3/4 | 20 | 1015154 | 1 | 5.00 | 35300 | .93 | 4.62 | 4.62 | 2.03 | 1.62 | 1.28 |
| 7/8 | 22 | 1015163 | 1 | 7.50 | 42700 | 1.06 | 5.46 | 5.46 | 2.27 | 2.00 | 1.49 |
| 1 | 25 | 1015172 | 1 | 11.03 | 59700 | 1.22 | 5.98 | 6.13 | 2.44 | 2.25 | 1.76 |
| 1-1/4 | 32 | 1015181 | 1 | 20.38 | 90400 | 1.50 | 7.43 | 7.59 | 3.07 | 2.56 | 2.23 |
*Ultimate Load is 4 times the Working Load Limit.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
