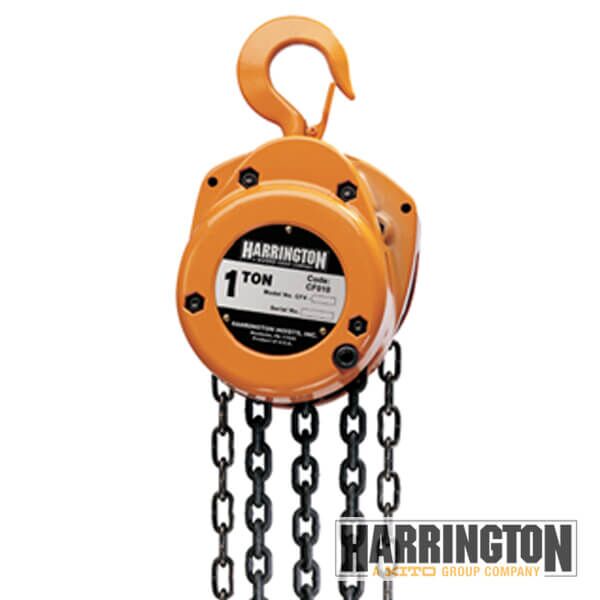

Harrington CB Chain Hoists

Harrington CB Chain Hoists

• Thick die-cast aluminum body
• High-strength, heat-treated main pinion shaft and load gear
• Positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking
• Smooth running, pre-lubricated ball bearings, and precision machined drive train components
• Fewer parts for an easy-to-work-on design
• 10-foot lift is standard, 15- and 20-foot lifts are also stocked; nonstandard lifts and hand chain drops available as well.
• Grade 100 heat-treated manganese alloy load chain resists abrasion and wear while minimizing chain weight.
• Forged and heat-treated alloy steel hooks are designed to open slowly and not fracture under excessive loads.
• Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity, in accordance with ASME B30.16 requirements.


EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Cap. (tons) Product Code Headroom C (in) Std. Lift (ft) Pull to Lift Load (lbs.) Overhaul Ratio Load Chain Dia. (mm.) x Chain Fall Lines Net Weight (lbs.) Shipping Weight Approx (lbx.) Weight for Additional One Foot of Lift (lbs.)
1/2 CB005 11.2 8 48 25 5.0 x 1 24 25 1.0
1 CB010 11.6 8 58 43 6.3 x 1 28 29 1.2
1 1/2 CB015 13.8 8 70 57 7.1 x 1 35 36 1.4
2 CB020 14.8 8 72 70 8.0 x 1 45 47 1.6
2 1/2 CB025 16.5 8 66 99 9.0 x 1 60 62 1.8
3 CB030 20.1 8 72 114 7.1 x 2 54 58 2.1
5 CB050 23.6 8 68 198 9.0 x 2 91 95 3.0
8 CB080 30.3 8 75 297 9.0 x 3 133 140 4.1
10 CB100 29.9 12 72 396 9.0 x 4 176 194 5.3
15 CB150 40.2 12 74 594 9.0 x 6 331 353 7.6
20 CB200 46.5 12 72 x 2 396 x 2 9.0 x 8 503 657 10.6
30 CB300 51.2 12 86 x 2 495 x 2 9.0 x 10 665 864 12.9
40 CB400 58.3 12 86 x 2 693 x 2 9.0 x 14 1033 1364 17.6
50 CB500 61.4 12 98 x 2 792 x 2 9.0 x 16 1382 1713 19.9
80 CB800 100.8 12  86 x 4 693 x 4 9.0 x 28 3298 – 35.2
100 CB1000 125.2 12 98 x 4 792 x 4 9.0 x 32 6419 – 39.9
Cap. (tons) Product Code a (in) b (in) d (in) e (in) f (in)g  (in) x (in)
1/2 CB005 6.2 6.3 8.0 2.7 3.9 1.1 3.5
1 CB010 6.4 6.3 8.0 2.8 3.9 1.1 4.0
1 1/2 CB015 6.7 7.2 8.0 3.1 4.4 1.3 4.7
2 CB020 7.2 8.0 8.0 3.4 4.9 1.4 4.9
2 1/2 CB025 7.6 9.2 8.0 3.6 5.6 1.6 5.4
3 CB030 6.7 9.3 8.3 3.1 6.4 1.7 5.8
5 CB050 7.6 11.1 10.0 3.6 7.6 1.8 6.8
8 CB080 7.6 14.7 10.3 3.6 10.0 2.9 10.8
10 CB100 7.6 17.2 14.9 4.4 12.1 2.9 11.7
15 CB150 10.6 19.4 15.9 4.7 13.3 3.1 12.6
20 CB200 14.7 29.4 16.3 7.4 14.7 3.2 13.8
30 CB300 15.9 29.4 16.3 8.0 14.7 4.1 15.7
40 CB400 19.8 29.9 16.6 9.9 15.0 3.8 17.5
50 CB500 21.4 31.3 16.6 10.7 15.7 4.0 18.4
80 CB800 29.9 55.2 15.9 13.8 27.6 5.1 –
100 CB1000 31.3 56.9 14.6 15.7 28.4 7.3 –

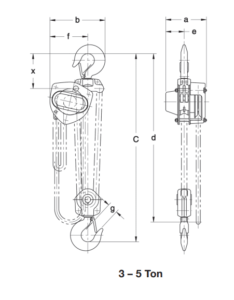

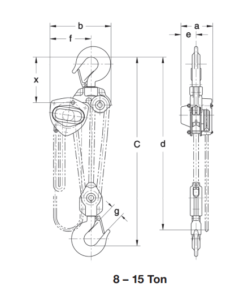

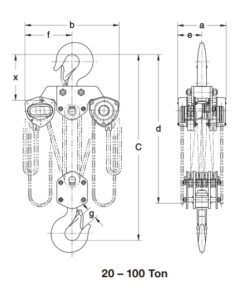

harrington-chain-falls-8 to 15 tons harrington-chain-falls-20 to 100 tons harrington-chain-falls- 3 to 5 tons harrington-chain-falls- half -2&half tons

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
