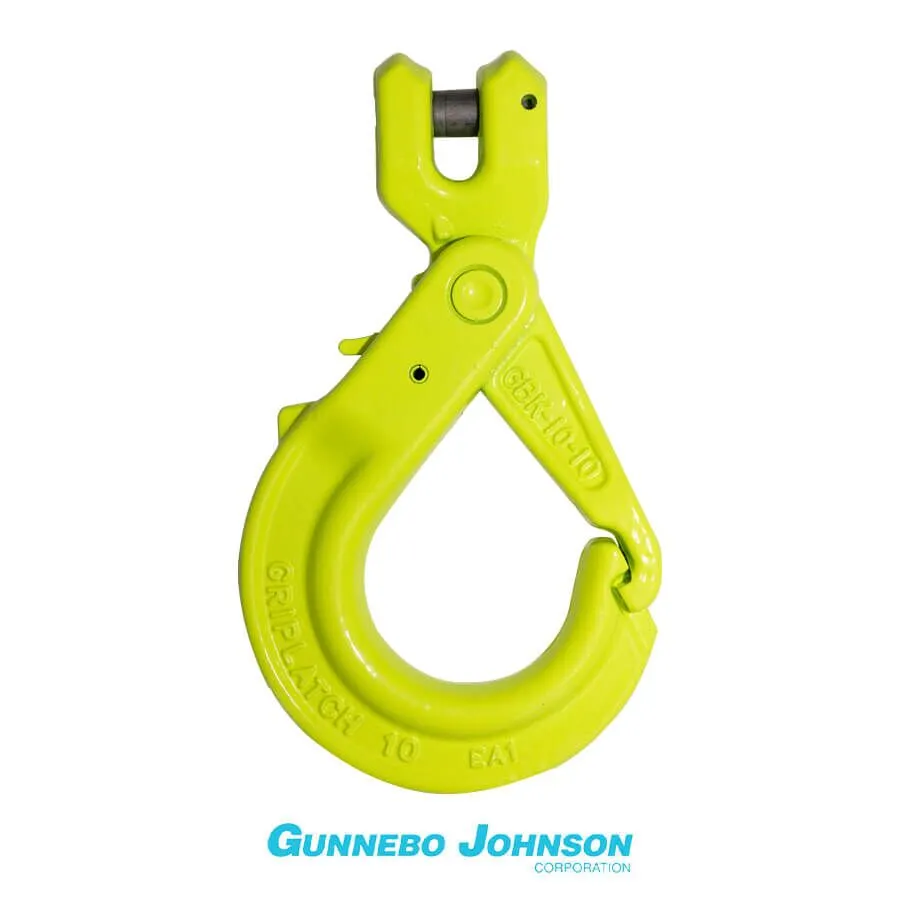

(Clevis Type)
| CERTEX Cat. Ref. No. |
Gunnebo-Johnson Code |
Chain Size |
Working Load Limit *(Lbs |

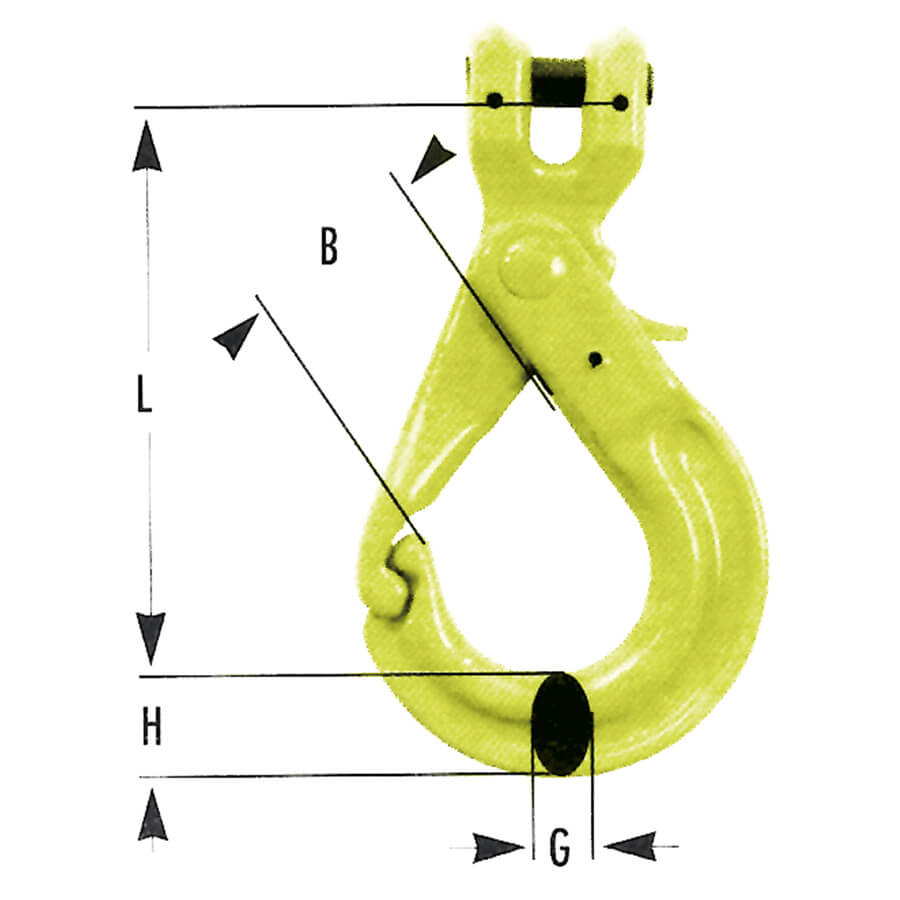

Dimensions (Inches) | Weight Each (Lbs) |
|||
| L | B | G | H | |||||
| CX06-0565 | GBK-7-10 | 9/32 | 4,300 | 4.4 | 1.3 | .67 | .79 | 1.3 |
| CX06-0566 | GBK-10-10 | 3/8 | 8,800 | 5.4 | 1.7 | .83 | .97 | 2.4 |
| CX06-0567 | GBK-13-10 | 1/2 | 15,000 | 6.6 | 2.0 | 1.0 | 1.2 | 4.4 |
* Design factor 4:1 Proof tested and certified.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
