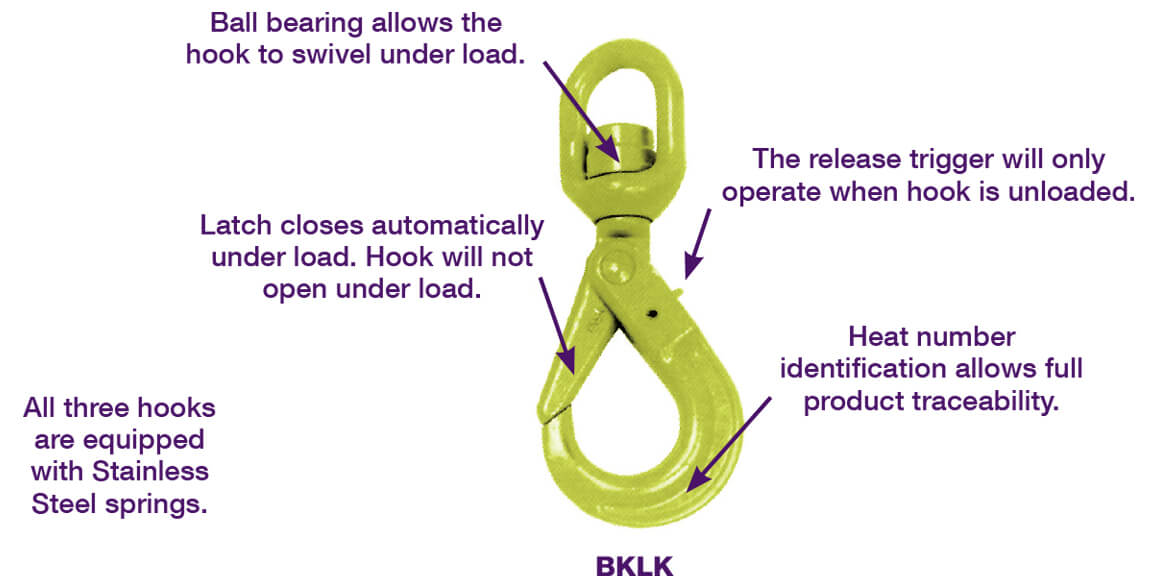

Swivel Eye Type

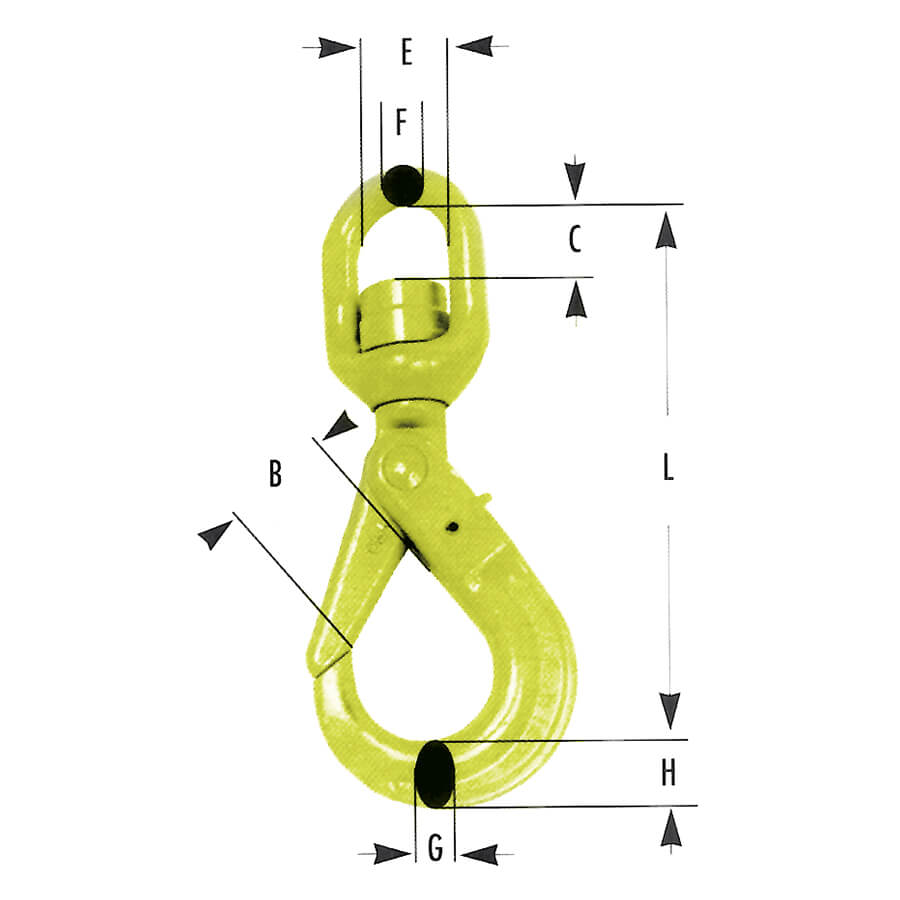

| CERTEX Cat. Ref. No | Gunnebo-Johnson Code | Chain Size | Working Load Limit *(Lbs) | Dimensions (Inches) | Weight Each (Lbs) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | B | C | E | F | G | H | |||||
| CX06-0556 | BKLK-6-10 | 7/32 | 2,700 | 5.8 | 1.1 | .87 | 1.3 | .43 | .55 | .75 | 1.5 |
| CX06-0557 | BKLK-7/8-10 | 9/32 | 4,300 | 7.2 | 1.4 | 1.1 | 1.4 | .47 | .67 | .91 | 2.4 |
| CX06-0558 | BKLK-10-10 | 3/8 | 8,800 | 8.5 | 1.7 | 1.3 | 1.6 | .59 | .99 | 1.1 | 4.2 |
| CX06-0559 | BKLK-13-10 | 1/2 | 15,000 | 10.9 | 2.1 | 1.6 | 1.9 | .75 | 1.1 | 1.5 | 8.4 |
| CX06-0560 | BKLK-16-10 | 5/8 | 22,600 | 13.2 | 2.5 | 2.0 | 2.4 | .87 | 1.5 | 1.9 | 15.9 |
* Design factor 4:1 Proof tested and certified.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
