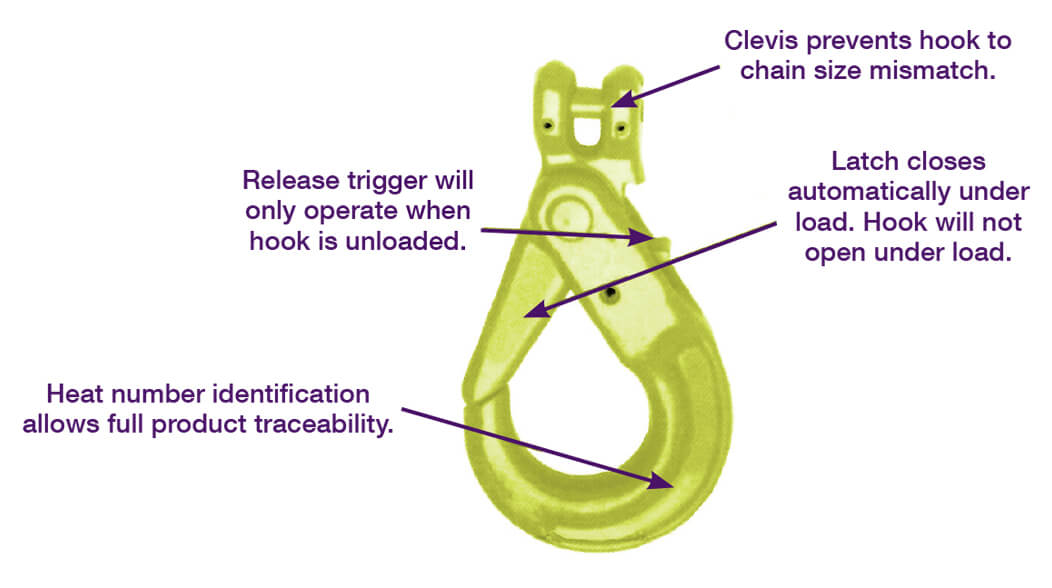

Self Locking (Clevis Type)
| CERTEX Cat. Ref. No. |
Gunnebo-Johnson Code |
Chain Size |
Working Load Limit *(Lbs |

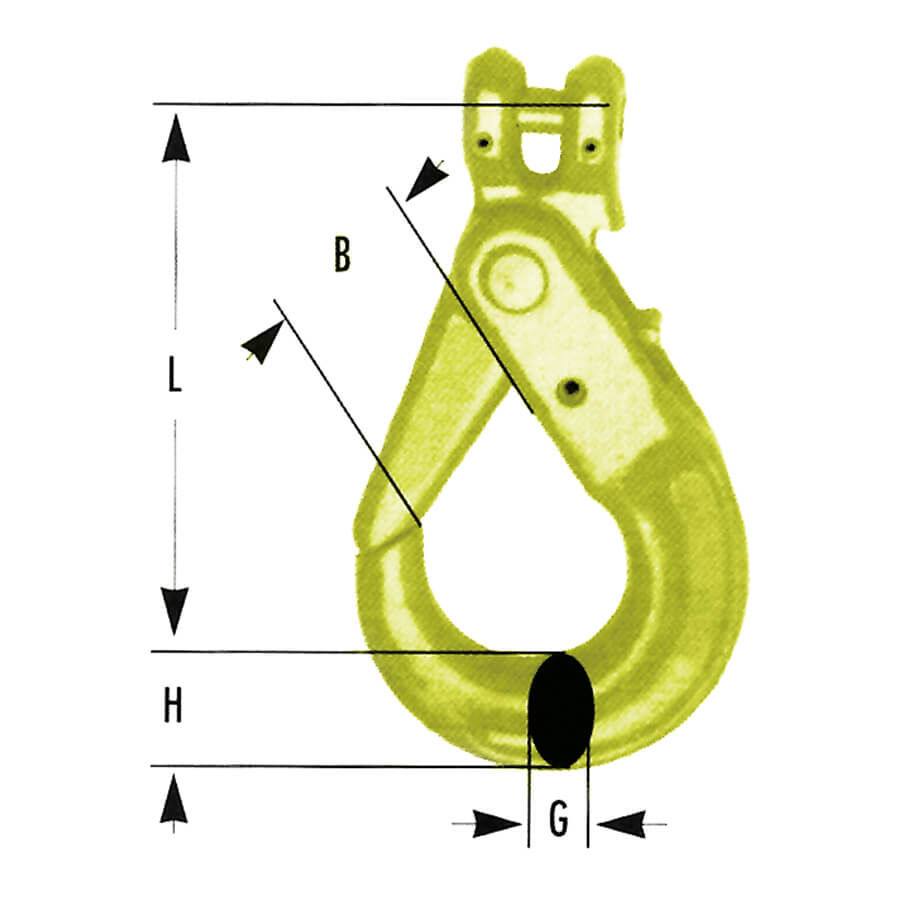

Dimensions (Inches) | Weight Each (Lbs) |
|||
| L | B | G | H | |||||
| CX06-0561 | BKG-7-10 | 9/32 | 4,300 | 4.7 | 1.4 | .67 | .91 | 1.7 |
| CX06-0562 | BKG-10-10 | 3/8 | 8,800 | 5.6 | 1.7 | .99 | 1.1 | 3.3 |
| CX06-0563 | BKG-13-10 | 1/2 | 15,000 | 7.1 | 2.1 | 1.1 | 1.5 | 6.2 |
| CX06-0564 | BKG-16-10 | 5/8 | 22,600 | 8.5 | 2.5 | 1.5 | 1.9 | 11.0 |
* Design factor 4:1 Proof tested and certified.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
