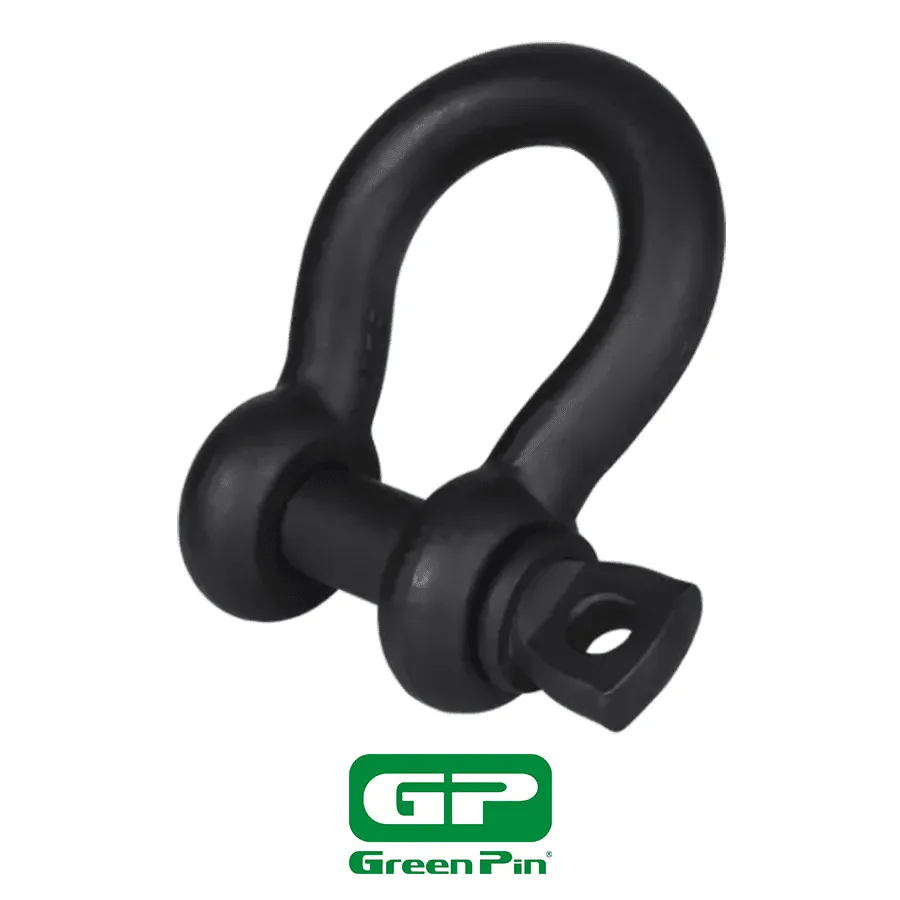

Matte black bow shackle with screw collar pin
Productcode
G-4161T
Material
bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor
MBL equals 6 x WLL
Finish
matte black
Temp. range
-40°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
CE
Standard
EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A, from 2 t and upward these shackles comply with ASME B30.26
| Article code | working load limit (ton) | Net weight (kg) | diameter bow (mm) A  | diameter pin (mm) B | diameter eye (mm) C | width eye (mm) D | width inside (mm) E | length inside (mm) F | width bow (mm) G | length (mm) H | length bolt (mm) I | width (mm) J | Net weight (KG) | |
| GPBHBB05 | 0,33 | 0.02 | 5 | 6 | 12 | 5 | 9,5 | 22 | 16 | 36 | 29,5 | 26 | 0.02 | |
| GPBHBB06 | 0,5 | 0.05 | 7 | 8 | 16 | 7 | 12 | 29 | 20 | 48 | 38 | 34 | 0.05 | |
| GPBHBB08 | 0,75 | 0.10 | 9 | 10 | 20 | 9 | 13,5 | 32 | 22 | 56 | 46,5 | 40 | 0.10 | |
| GPBHBB10 | 1 | 0.14 | 10 | 11 | 23 | 10 | 17 | 37 | 26 | 64 | 54 | 46 | 0.14 | |
| GPBHBB11 | 1,5 | 0.19 | 11 | 13 | 25 | 11 | 19 | 43 | 29 | 73 | 59,5 | 51 | 0.19 | |
| GPBHBB13 | 2 | 0.36 | 13,5 | 16 | 34 | 13 | 22 | 51 | 32 | 90 | 73 | 59 | 0.36 | |
| GPBHBB16 | 3,25 | 0.63 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 89 | 75 | 0.63 | |
| GPBHBB19 | 4,75 | 1.01 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 103 | 89 | 1.01 | |
| GPBHBB22 | 6,5 | 1.50 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 119 | 102 | 1.50 | |
| GPBHBB25 | 8,5 | 2.21 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 137 | 118 | 2.21 |
| Article code | Net weight (LBS) | diameter bow (inch) A | diameter pin (inch) B | diameter eye (inch) C | width eye (inch) D | width inside (inch) E | length inside (inch) F | width bow (inch) G | length (inch) H | length bolt (inch) I | width (inch) J | Net weight (LBS) | |
| GPBHBB05 | 0.05 | 3/16 | 1/4 | 1/2 | 3/16 | 3/8 | 7/8 | 5/8 | 1 13/32 | 1 5/32 | 1 1/32 | 0.05 | |
| GPBHBB06 | 0.12 | 1/4 | 5/16 | 5/8 | 9/32 | 15/32 | 1 5/32 | 25/32 | 1 7/8 | 1 1/2 | 1 11/32 | 0.12 | |
| GPBHBB08 | 0.22 | 5/16 | 3/8 | 25/32 | 11/32 | 17/32 | 1 1/4 | 7/8 | 2 7/32 | 1 27/32 | 1 9/16 | 0.22 | |
| GPBHBB10 | 0.30 | 3/8 | 7/16 | 29/32 | 13/32 | 21/32 | 1 15/32 | 1 1/32 | 2 17/32 | 2 1/8 | 1 13/16 | 0.30 | |
| GPBHBB11 | 0.42 | 7/16 | 1/2 | 31/32 | 7/16 | 3/4 | 1 11/16 | 1 5/32 | 2 7/8 | 2 11/32 | 2 | 0.42 | |
| GPBHBB13 | 0.79 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 2 | 1 1/4 | 3 17/32 | 2 7/8 | 2 5/16 | 0.79 | |
| GPBHBB16 | 1.38 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 17/32 | 1 11/16 | 4 11/32 | 3 1/2 | 2 15/16 | 1.38 | |
| GPBHBB19 | 2.22 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 3 | 2 | 5 3/32 | 4 1/16 | 3 1/2 | 2.22 | |
| GPBHBB22 | 3.31 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 3 9/32 | 2 9/32 | 5 21/32 | 4 11/16 | 4 1/32 | 3.31 | |
| GPBHBB25 | 4.86 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 3/4 | 2 11/16 | 6 15/32 | 5 13/32 | 4 21/32 | 4.86 |
The Green Pin® Theatre Shackle SC is a matte black, bow shackle with a screw collar pin. The shackle has been specially developed for use in theatres and other entertainment venues. Due to its black matte finish, the Green Pin® Theatre Shackle SC shows no sheen or light reflections and therefore does not distract from the performance on stage. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. Also, there is a chamber in the shackle eye of the Green Pin® Theatre Shackle SC which hides the screw thread and reduces wear of rope. The Green Pin® Theatre Shackle SC is available in a range with a working load limit from 0.33 up to 8.5 ton.
