Green Pin® Locking Clamp ROV Shackle

Green Pin® Locking Clamp ROV Shackle

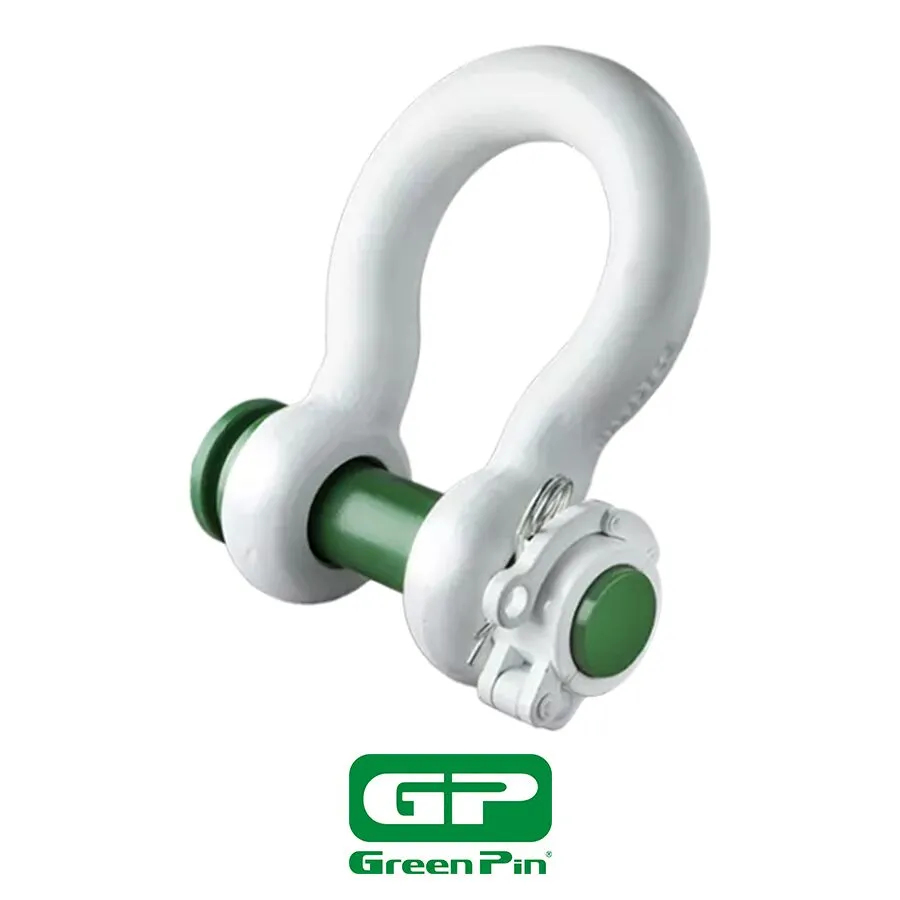

Release ROV shackle (grade 8) with locking clamp

Product details

Productcode
P-5365
Material
bow and pin alloy steel, Grade 8, Polar Quality, quenched and tempered
Safety factor
MBL equals 6 x WLLfor shackles with WLL 120 t and up the MBL equals 5 x WLL
Finish
shackle bow painted white, pin painted green
Temp. range
-60°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
MTCb
LROS
CE

Note
supplied without wires, design your own wiring plan

Pdf Article code working load limit (ton) Weight shackle pin (kg) Net weight (kg) diameter bow (mm)
A
diameter pin (mm)
B
diameter eye (mm)
C
width eye (mm)
D
width inside (mm)
E
length inside (mm)
width bow  (mm)
G
length  (mm)
H
length bolt (mm)
I
width (mm)
J
width locking clamp (mm)
K
Net weight (KG)
POGHMB22ROVRLLC 6,5 1,22 2.17 22 25 52 22 36 83 58 164 140 102 45 2.17
POGHMB28ROVRLLC 9,5 2 4.25 28 32 66 28 47 108 75 200 172 131 48 4.25
POGHMB32ROVRLLC 12 2,26 5.36 32 35 72 32 51 115 83 213 184 147 48 5.36
POGHMB38ROVRLLC 17 3,86 9.27 38 42 88 38 60 146 99 266 209 175 48 9.27
POGHMB45ROVRLLC 25 5,62 14.6 45 50 103 45 74 178 126 309 243 216 48 14.6
POGHMB50ROVRLLC 35 7,89 20.7 50 57 116 50 83 197 138 350 269 238 48 20.7
POGHMB57ROVRLLC 42,5 10,6 28.3 57 65 130 57 95 222 160 377 301 274 48 28.3
POGHMB65ROVRLLC 55 12,84 41.0 65 70 145 65 105 260 180 440 329 310 48 41
POGHMB75ROVRLLC 85 18,69 61.0 75 83 162 75 127 329 190 527 375 340 48 61
HDPOHM0120ROVRLLC 120 29 110 95 95 208 91 147 400 238 647 440 428 60 110
HDPOHM0150ROVRLLC 150 38,77 160 105 108 238 102 169 410 275 688 490 485 60 160
HDPOHM0200ROVRLLC 200 66,06 235 120 130 279 113 179 513 290 838 520 530 60 235
HDPOHM0250ROVRLLC 250 69 285 130 140 299 118 205 554 305 904 560 565 60 285
Pdf Article code working load limit (ton) Weight shackle pin (lb) Net weight (lbs) diameter bow (inch)
A
diameter pin (inch)
B
diameter eye (inch)
C
width eye (inch)
D
width inside (inch)
E
length inside (inch)
width bow  (inch)
G
length  (inch)
H
length bolt (inch)
I
width (inch)
J
width locking clamp (inch)
K
Net weight (LBS)
POGHMB22ROVRLLC 6,5 2,69 4.79 7/8 1 2 1/32 7/8 1 7/16 3 9/32 2 9/32 6 7/16 5 17/32 4 1 25/32 4.79
POGHMB28ROVRLLC 9,5 4,4 9.36 1 1/8 1 1/4 2 19/32 1 1/8 1 7/8 4 1/4 2 15/16 7 7/8 6 3/4 5 5/32 1 29/32 9.36
POGHMB32ROVRLLC 12 4,98 11.8 1 1/4 1 3/8 2 13/16 1 9/32 2 4 17/32 3 9/32 8 3/8 7 1/4 5 25/32 1 29/32 11.8
POGHMB38ROVRLLC 17 8,51 20.4 1 1/2 1 5/8 3 1/2 1 17/32 2 11/32 5 3/4 3 29/32 10 1/2 8 1/4 6 7/8 1 29/32 20.4
POGHMB45ROVRLLC 25 12,38 32.2 1 3/4 2 4 1/32 1 25/32 2 29/32 7 4 15/16 12 5/32 9 19/32 8 17/32 1 29/32 32.2
POGHMB50ROVRLLC 35 17,4 45.7 2 2 1/4 4 9/16 1 31/32 3 9/32 7 3/4 5 7/16 13 25/32 10 19/32 9 3/8 1 29/32 45.7
POGHMB57ROVRLLC 42,5 23,37 62.5 2 1/4 2 9/16 5 1/8 2 1/4 3 3/4 8 3/4 6 9/32 14 13/16 11 7/8 10 25/32 1 29/32 62.5
POGHMB65ROVRLLC 55 28,31 90.4 2 1/2 2 3/4 5 23/32 2 9/16 4 1/8 10 1/4 7 3/32 17 11/32 12 15/16 12 3/16 1 29/32 90.4
POGHMB75ROVRLLC 85 41,2 135 3 3 1/4 6 11/32 2 15/16 5 12 15/16 7 1/2 20 3/4 14 3/4 13 3/8 1 29/32 135
HDPOHM0120ROVRLLC 120 63,93 243 3 3/4 3 3/4 8 3/16 3 19/32 5 25/32 15 3/4 9 3/8 25 1/2 17 11/32 16 7/8 2 11/32 243
HDPOHM0150ROVRLLC 150 85,47 353 4 1/8 4 1/4 9 3/8 4 6 5/8 16 5/32 10 13/16 27 3/32 19 5/16 19 1/8 2 11/32 353
HDPOHM0200ROVRLLC 200 145,64 518 4 23/32 5 1/8 11 4 7/16 7 1/32 20 3/16 11 7/16 33 20 1/2 20 7/8 2 11/32 518
HDPOHM0250ROVRLLC 250 152,13 628 5 1/8 5 1/2 11 25/32 4 5/8 8 3/32 21 13/16 12 35 19/32 22 1/32 22 1/4 2 11/32 628

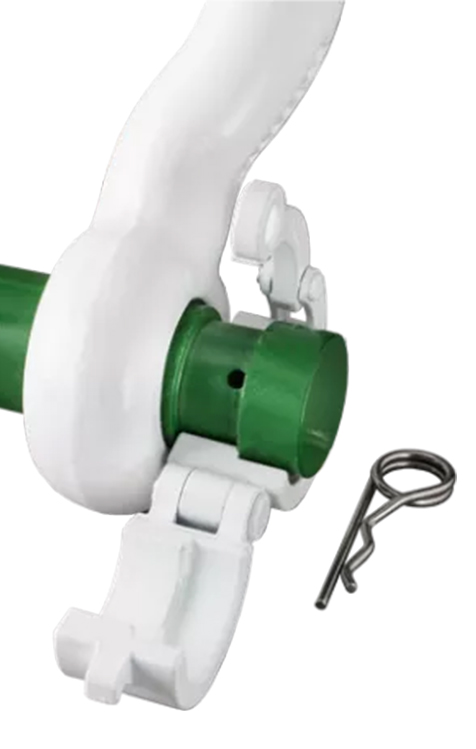

The Green Pin® Locking Clamp ROV Shackle is perfect for release operations with a remotely operated vehicle (ROV). The grade 8 shackle has been specially developed for sub-sea applications and is easy to handle for the ROV pilot. The Green Pin® Locking Clamp ROV Shackle has a powerful locking system which ensures that the load will not be released before you want it to. The white coating of the Green Pin® Locking Clamp ROV Shackle optimizes visibility under water and ensures its long-term durability. The ROV shackle is available in a range with a working load limit from 6.5 up to 250 ton.

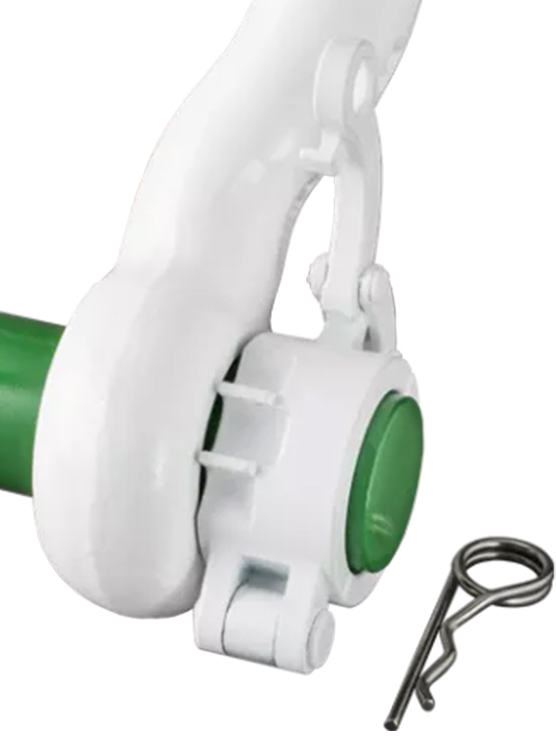

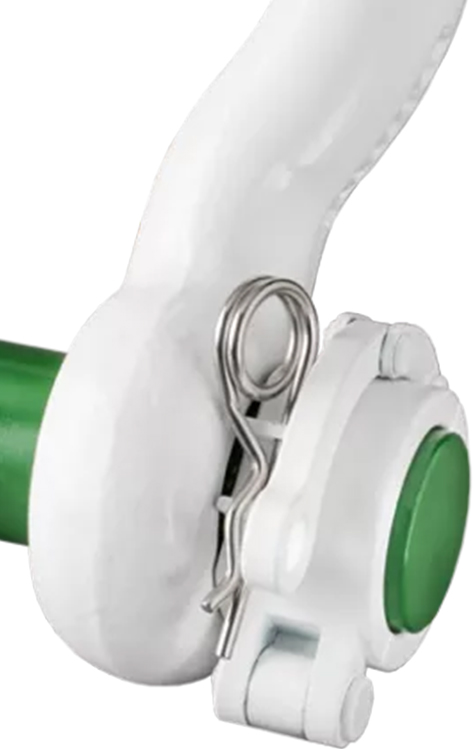

  • Powerful locking system ensures load is not released unintentionally
  • Locking system is easy to handle for the ROV pilot
  • Designed for under water use in harsh conditions
  • White coating optimizes visibility under water
  • Developed specifically for sub-sea applications
