Green Pin® Heavy Duty Dee Shackle FN

Green Pin® Heavy Duty Dee Shackle FN

High load capacity dee shackle (grade 8) with safety bolt and fixed nut

Product details

Productcode
P-6018
Material
bow and pin alloy steel, Grade 8, quenched and tempered
Safety factor
MBL equals 5 x WLL
Finish
shackle bow painted silver, pin painted green
Certification
2.1
2.2
3.1
MTCa
MPIa
USa
CE

Pdf Article code working load limit (ton) Weight shackle pin (KG) diameter bow   (mm) A diameter pin (mm) B
diameter eye (mm) C
width eye (mm) D
width inside (mm) E
length inside (mm) F
length (mm) G
length bolt (mm) H thickness nut (mm)
I
Securing bolt thread (mm)
securing bolt length (mm)
K
Torque (nm) Net weight (KG)
HDGPDM0120FN 120 28,12 95 95 204 95 147 274 520 440 50 M12 150 75 97
Pdf Article code working load limit (ton) Weight shackle pin (LB) diameter bow   (inch) A diameter pin (inch) B
diameter eye (inch) C
width eye (inch) D
width inside (inch) E
length inside (inch) F  length (inch) G
length bolt (inch) H thickness nut (inch)
I
Securing bolt thread (inch)
securing bolt length (inch)
K
Torque (nm) Net weight (LBS)
HDGPDM0120FN 120 61,99 3 3/4 3 3/4 8 1/32 3 3/4 5 25/32 10 25/32 20 15/32 17 5/16 1 31/32 M12 5 29/32 75 214

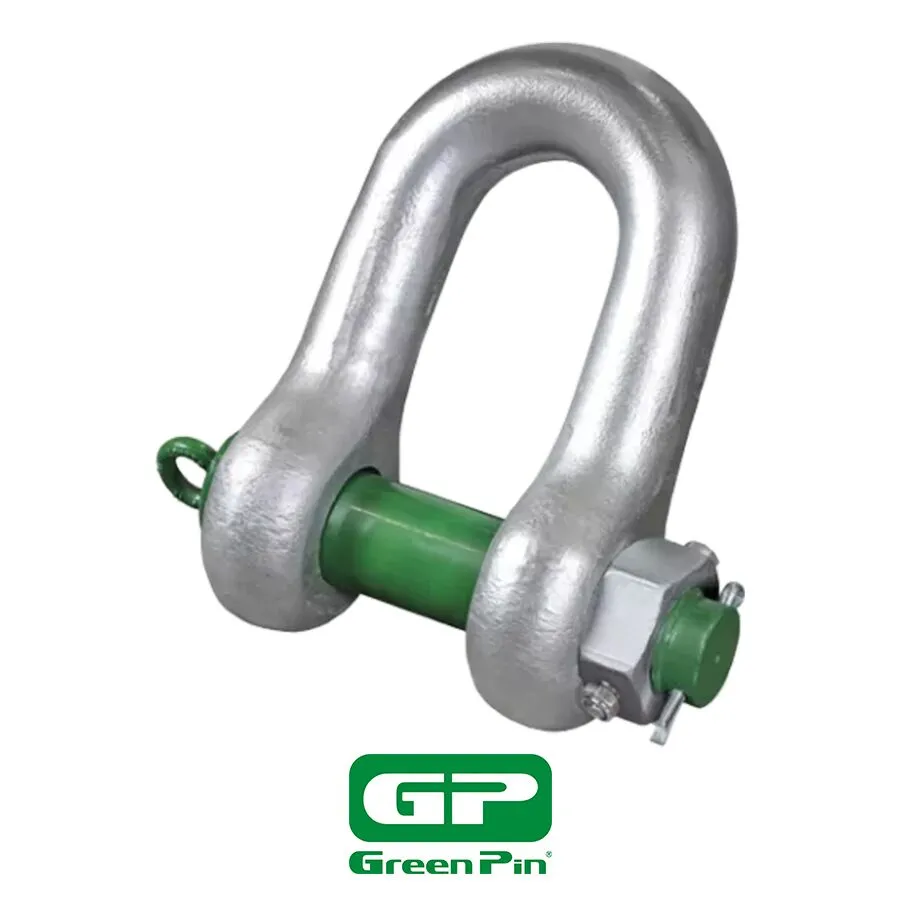

The Green Pin® Heavy Duty Dee Shackle FN is a high load capacity, dee shackle with a safety bolt and a fixed nut. The shackle is the perfect choice when the load is dynamic or exposed to extreme vibrations because of its triple safety (split pin, safety bolt and fixed nut). The fixed nut of the Green Pin® Heavy Duty Dee Shackle FN is drilled through both the shackle nut and pin and is firmly attached to the pin head with bolts and Nord-Lock® washers. Of course, the Green Pin® Heavy Duty Dee Shackle FN conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Heavy Duty Dee Shackle FN is suitable for one-leg systems only and is available with a working load limit of 120t.

  • Good choice for heavy lifting projects
  • Triple safety (split pin, safety bolt, fixed nut)
  • Top choice when the load is dynamic or exposed to extreme vibrations

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
