Green Pin® Heavy Duty Bow Shackle FN

Green Pin® Heavy Duty Bow Shackle FN

High load capacity bow shackle with safety bolt and fixed nut

Product details

Productcode
P-6016
Material
bow and pin alloy steel, Grade 8, quenched and tempered
Safety factor
MBL equals 5 x WLL
Finish
shackle bow painted silver, pin painted green (120 tons shackle is hot dipped galvanized)
Certification
2.1
2.2
3.1
MTCa
MTCb
LROS
MPIa
USa
CE

Pdf Article code working load limit (ton) Weight shackle pin (KG) diameter bow   (mm) A diameter pin (mm) B
diameter eye (mm) C
width eye (mm) D
width inside (mm) E
length inside (mm) F
width bow  (mm) G
length (mm) H length bolt (mm) I width  (mm)
J
thickness nut (mm)
K

securing bolt thread (mm)
securing bolt length (mm)
Torque (nm) Net weight (KG)
HDGPHM0120FN 120 28,12 95 95 204 95 147 400 238 644 453 428 50 M12 150 75 110
HDGPHM0150FN 150 39,15 105 108 235 105 169 410 275 686 496 485 50 M12 160 75 155
Pdf Article code working load limit (ton) Weight shackle pin (LB) diameter bow   (inch) A diameter pin (inch) B
diameter eye (inch) C
width eye (inch) D
width inside (inch) E
length inside (inch) F
width bow  (inch) G
length (inch) H length bolt (inch) I width  (inch)
J
thickness nut (inch)
K

securing bolt thread (inch)
securing bolt length (inch)
Torque (nm) Net weight (LBS)
HDGPHM0120FN 120 61,99 3 3/4 3 3/4 8 1/32 3 3/4 5 25/32 15 3/4 9 3/8 25 11/32 17 27/32 16 27/32 1 31/32 M12 5 29/32 75 243
HDGPHM0150FN 150 86,31 4 1/8 4 1/4 9 1/4 4 1/8 6 21/32 16 5/32 10 13/16 27 19 17/32 19 3/32 1 31/32 M12 6 5/16 75 342

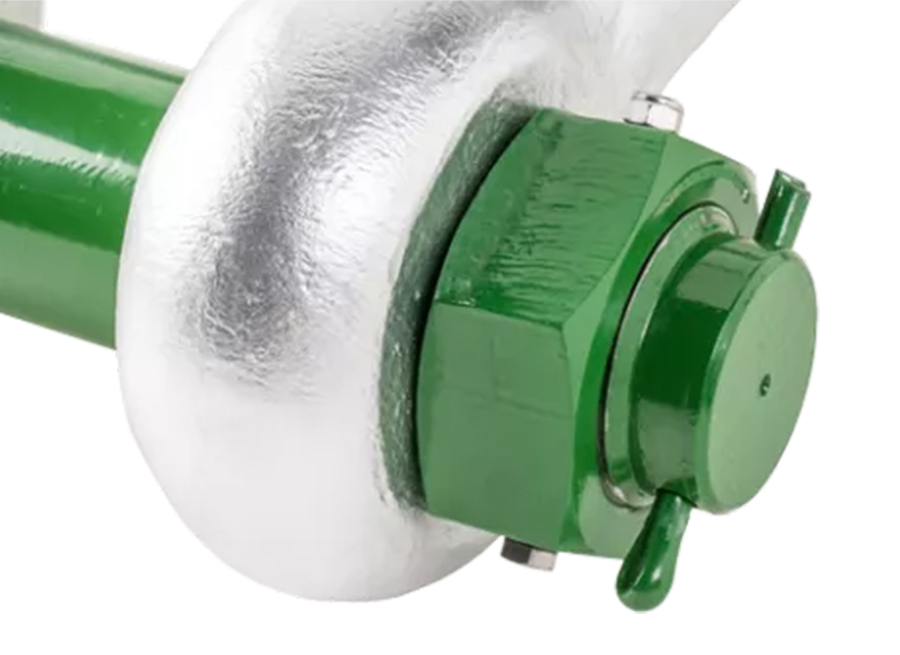

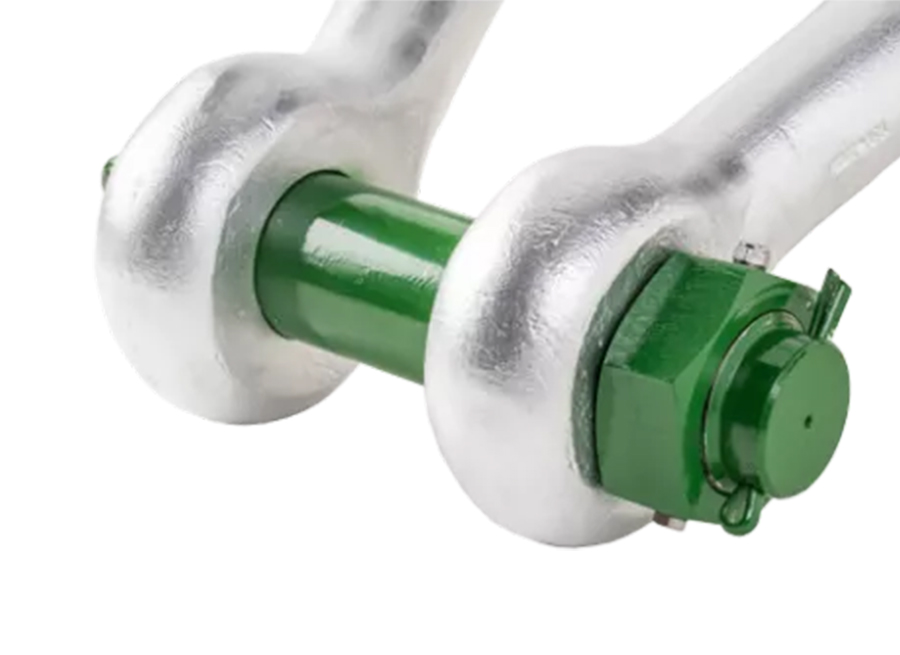

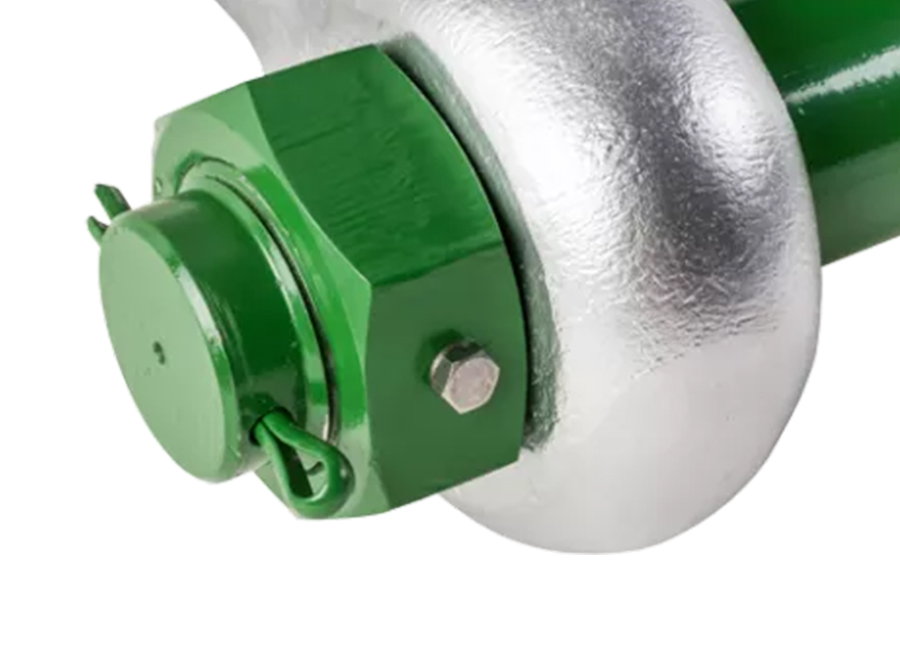

The Green Pin® Heavy Duty Bow Shackle FN is a high load capacity, bow shackle with a safety bolt. The shackle is the perfect choice when the load is dynamic or exposed to extreme vibrations because of its triple safety (split pin, safety bolt and fixed nut). The fixed nut of the Green Pin® Heavy Duty Bow Shackle FN is drilled through both the shackle nut and pin and is firmly attached to the pin head with bolts and Nord-Lock® washers. Of course, the Green Pin® Heavy Duty Bow Shackle FN conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Heavy Duty Bow Shackle FN is suitable for both one-leg systems and multi-leg systems and is available in a range with a working load limit from 120t or 150t.

  • Good choice for heavy lifting projects
  • Triple safety (split pin, safety bolt, fixed nut)
  • Top choice when the load is dynamic or exposed to extreme vibrations
  • Galvanization assures long-term durability

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
