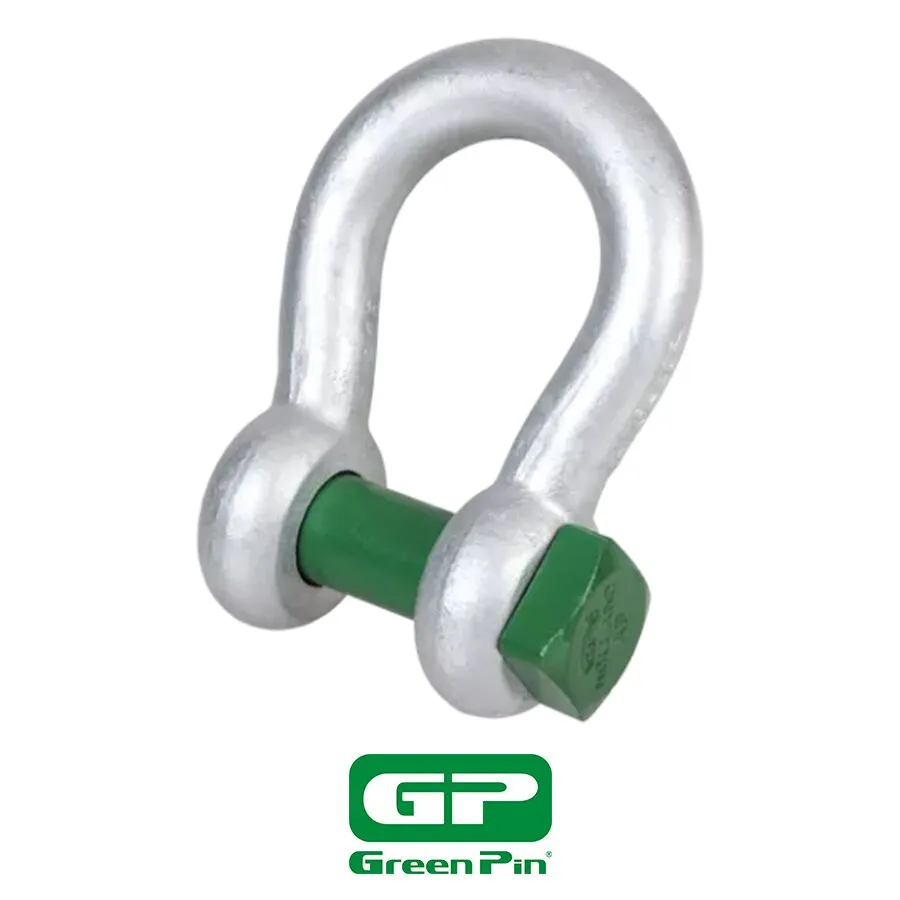

Bow shackle with square headed screw pin
Productcode
G-4164
Material
bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor
MBL equals 6 x WLL
Finish
hot dipped galvanized
Certification
2.1
2.2
3.1
MTCa
CE
Standard
EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Grade A
| Article code | working load limit (ton) | Net weight (KG) | diameter bow (mm) A  | diameter pin (mm) B | diameter eye (mm) C | width eye (mm) D | width inside (mm) E | length inside (mm) F | width bow (mm) G | length (mm) H | length bolt (mm) I | width (mm) J | width bolt head (mm) K | Net weight (KG) | |
| GPGHVK13 | 2 | 0.34 | 13,5 | 16 | 34 | 13 | 22 | 51 | 32 | 90 | 57,5 | 59 | 22 | 0.34 | |
| GPGHVK16 | 3,25 | 0.63 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 71 | 75 | 27 | 0.63 | |
| GPGHVK19 | 4,75 | 1.00 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 82 | 89 | 32 | 1.00 | |
| GPGHVK22 | 6,5 | 1.44 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 93 | 102 | 32 | 1.44 | |
| GPGHVK25 | 8,5 | 2.21 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 108 | 118 | 36 | 2.21 | |
| GPGHVK28 | 9,5 | 3.18 | 28 | 32 | 67 | 28 | 47 | 108 | 75 | 186 | 120 | 131 | 41 | 3.18 | |
| GPGHVK32 | 12 | 4.32 | 32 | 35 | 73 | 32 | 51 | 115 | 83 | 201 | 137 | 147 | 50 | 4.32 | |
| GPGHVK35 | 13,5 | 5.67 | 35 | 38 | 79 | 35 | 57 | 133 | 92 | 227 | 149 | 162 | 50 | 5.67 | |
| GPGHVK38 | 17 | 7.36 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 164 | 175 | 60 | 7.36 | |
| GPGHVK45 | 25 | 12.4 | 45 | 50 | 104 | 45 | 74 | 178 | 126 | 300 | 192 | 216 | 60 | 12.4 |
| Article code | Net weight (LBS) | diameter bow (inch) A | diameter pin (inch) B | diameter eye (inch) C | width eye (inch) D | width inside (inch) E | length inside (inch) F | width bow (inch) G | length (inch) H | length bolt (inch) I | width (inch) J | width bolt head (inch) K | Net weight (LBS) | |
| GPGHVK13 | 0.74 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 2 | 1 1/4 | 3 17/32 | 2 1/4 | 2 5/16 | 7/8 | 0.74 | |
| GPGHVK16 | 1.40 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 17/32 | 1 11/16 | 4 11/32 | 2 25/32 | 2 15/16 | 1 1/16 | 1.40 | |
| GPGHVK19 | 2.21 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 3 | 2 | 5 3/32 | 3 7/32 | 3 1/2 | 1 1/4 | 2.21 | |
| GPGHVK22 | 3.17 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 3 9/32 | 2 9/32 | 5 21/32 | 3 21/32 | 4 1/32 | 1 1/4 | 3.17 | |
| GPGHVK25 | 4.86 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 3/4 | 2 11/16 | 6 15/32 | 4 1/4 | 4 21/32 | 1 13/32 | 4.86 | |
| GPGHVK28 | 7.01 | 1 1/8 | 1 1/4 | 2 5/8 | 1 3/32 | 1 27/32 | 4 1/4 | 2 15/16 | 7 5/16 | 4 23/32 | 5 5/32 | 1 5/8 | 7.01 | |
| GPGHVK32 | 9.52 | 1 1/4 | 1 3/8 | 2 7/8 | 1 1/4 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 5 13/32 | 5 25/32 | 1 31/32 | 9.52 | |
| GPGHVK35 | 12.5 | 1 3/8 | 1 1/2 | 3 1/8 | 1 3/8 | 2 1/4 | 5 1/4 | 3 5/8 | 8 15/16 | 5 7/8 | 6 3/8 | 1 31/32 | 12.5 | |
| GPGHVK38 | 16.2 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 3/4 | 3 29/32 | 9 13/16 | 6 15/32 | 6 7/8 | 2 3/8 | 16.2 | |
| GPGHVK45 | 27.3 | 1 3/4 | 2 | 4 3/32 | 1 25/32 | 2 29/32 | 7 | 4 31/32 | 11 13/26 | 7 9/16 | 8 1/2 | 2 3/8 | 27.3 |
The Green Pin® Fishing Bow Shackle SQ is a bow shackle with a square headed screw pin. The square head fits commonly used tools on fishing ships. Galvanization of the Green Pin® Fishing Bow Shackle SQ ensures its long-term durability. Also, there is a chamber in the shackle eye of the Green Pin® Fishing Bow Shackle SQ which hides the screw thread and reduces wear of rope. The Green Pin® Fishing Bow Shackle SQ is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 2 upto 25 ton.
