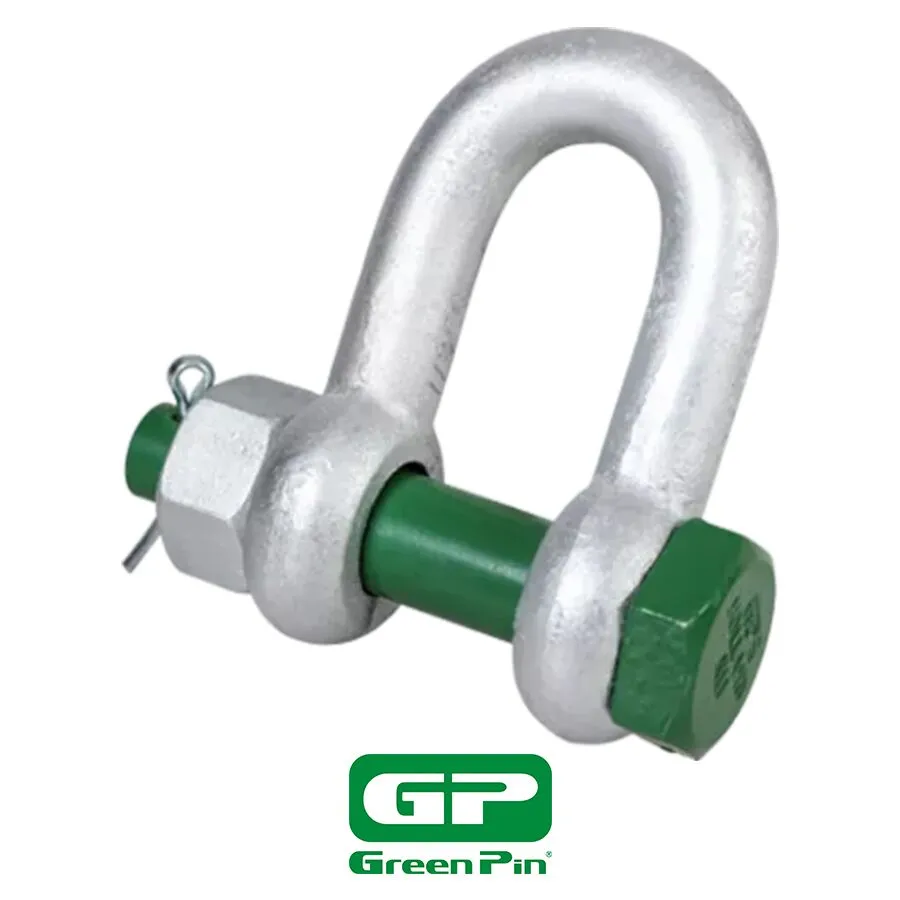

Standard dee shackle with safety bolt
Productcode
G-4153
Material
bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor
MBL equals 6 x WLL
Finish
hot dipped galvanized
Temp. range
-40°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
DNV 2.7-1a
DNV 2.7-1b
DNVGL-ST-0378
CE
ABS PDA
ABS MA
Standard
EN 13889, ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, Grade A
| Article code | working load limit (ton) | diameter bow (mm) A  | diameter pin (mm) B | diameter eye (mm) C | width eye (mm) D | width inside (mm) E | length inside (mm) F | length (mm) G | length bolt (mm) H | thickness nut (mm) I | Net weight (KG) | |
 | GPGDMB13 | 2 | 13,5 | 16 | 34 | 13 | 22 | 43 | 82 | 80 | 13 | 0.39 |
 | GPGDMB16 | 3,25 | 16 | 19 | 40 | 16 | 27 | 51 | 97 | 98 | 17 | 0.67 |
 | GPGDMB19 | 4,75 | 19 | 22 | 46 | 19 | 31 | 59 | 112 | 115 | 19 | 1.08 |
 | GPGDMB22 | 6,5 | 22 | 25 | 52 | 22 | 36 | 73 | 134 | 130 | 22 | 1.66 |
 | GPGDMB25 | 8,5 | 25 | 28 | 59 | 25 | 43 | 85 | 154 | 150 | 25 | 2.46 |
 | GPGDMB28 | 9,5 | 28 | 32 | 67 | 28 | 47 | 90 | 168 | 166 | 27 | 3.40 |
 | GPGDMB32 | 12 | 32 | 35 | 73 | 32 | 51 | 94 | 180 | 184 | 30 | 4.51 |
 | GPGDMB35 | 13,5 | 35 | 38 | 79 | 35 | 57 | 115 | 209 | 197 | 33 | 6.10 |
 | GPGDMB38 | 17 | 38 | 42 | 88 | 38 | 60 | 127 | 230 | 202 | 19 | 7.63 |
 | GPGDMB45 | 25 | 45 | 50 | 104 | 45 | 74 | 149 | 271 | 243 | 23 | 12.9 |
 | GPGDMB50 | 35 | 50 | 57 | 112 | 50 | 83 | 171 | 306 | 269 | 26 | 17.4 |
 | GPGDMB57 | 42,5 | 57 | 65 | 132 | 57 | 95 | 190 | 346 | 301 | 29 | 25.9 |
 | GPGDMB65 | 55 | 65 | 70 | 145 | 65 | 105 | 203 | 376 | 329 | 32 | 35.3 |
 | GPGDMB75 | 85 | 75 | 83 | 167 | 75 | 127 | 229 | 429 | 381 | 39 | 53.0 |
| Article code | diameter bow (inch) A | diameter pin (inch) B | diameter eye (inch) C | width eye (inch) D | width inside (inch) E | length inside (inch) F | length (inch) G | length bolt (inch) H | thickness nut (inch) I | Net weight (LBS) | |
 | GPGDMB13 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 1 11/16 | 3 7/32 | 3 5/32 | 1/2 | 0.85 |
 | GPGDMB16 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 | 3 13/16 | 3 27/32 | 21/32 | 1.48 |
 | GPGDMB19 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 2 5/16 | 4 13/32 | 4 17/32 | 3/4 | 2.39 |
 | GPGDMB22 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 2 7/8 | 5 9/32 | 5 1/8 | 7/8 | 3.66 |
 | GPGDMB25 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 11/32 | 6 1/16 | 5 29/32 | 31/32 | 5.42 |
 | GPGDMB28 | 1 1/8 | 1 1/4 | 2 5/8 | 1 3/32 | 1 27/32 | 3 17/32 | 6 5/8 | 6 17/32 | 1 1/16 | 7.51 |
 | GPGDMB32 | 1 1/4 | 1 3/8 | 2 7/8 | 1 1/4 | 2 | 3 11/16 | 7 3/32 | 7 1/4 | 1 3/16 | 9.95 |
 | GPGDMB35 | 1 3/8 | 1 1/2 | 3 1/8 | 1 3/8 | 2 1/4 | 4 17/32 | 8 7/32 | 7 3/4 | 1 5/16 | 13.5 |
 | GPGDMB38 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 | 9 1/16 | 7 15/16 | 3/4 | 16.8 |
 | GPGDMB45 | 1 3/4 | 2 | 4 3/32 | 1 25/32 | 2 29/32 | 5 7/8 | 10 21/32 | 9 9/16 | 29/32 | 28.4 |
 | GPGDMB50 | 2 | 2 1/4 | 4 13/32 | 1 31/32 | 3 9/32 | 6 23/32 | 12 1/16 | 10 19/32 | 1 1/32 | 38.3 |
 | GPGDMB57 | 2 1/4 | 2 9/16 | 5 3/16 | 2 1/4 | 3 3/4 | 7 15/32 | 13 5/8 | 11 27/32 | 1 5/32 | 57.2 |
 | GPGDMB65 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 8 | 14 13/16 | 12 15/16 | 1 1/4 | 77.9 |
 | GPGDMB75 | 3 | 3 1/4 | 6 9/16 | 2 15/16 | 5 | 9 1/32 | 16 7/8 | 15 | 1 17/32 | 117 |
The Green Pin® Dee Shackle BN is a dee shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Its long-term durability is assured due to galvanization. Particularly important for use offshore, the shackle conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Dee Shackle BN is suitable for one-leg lifting systems only and is available in a range with a working load limit from 2 up to 85 ton.
