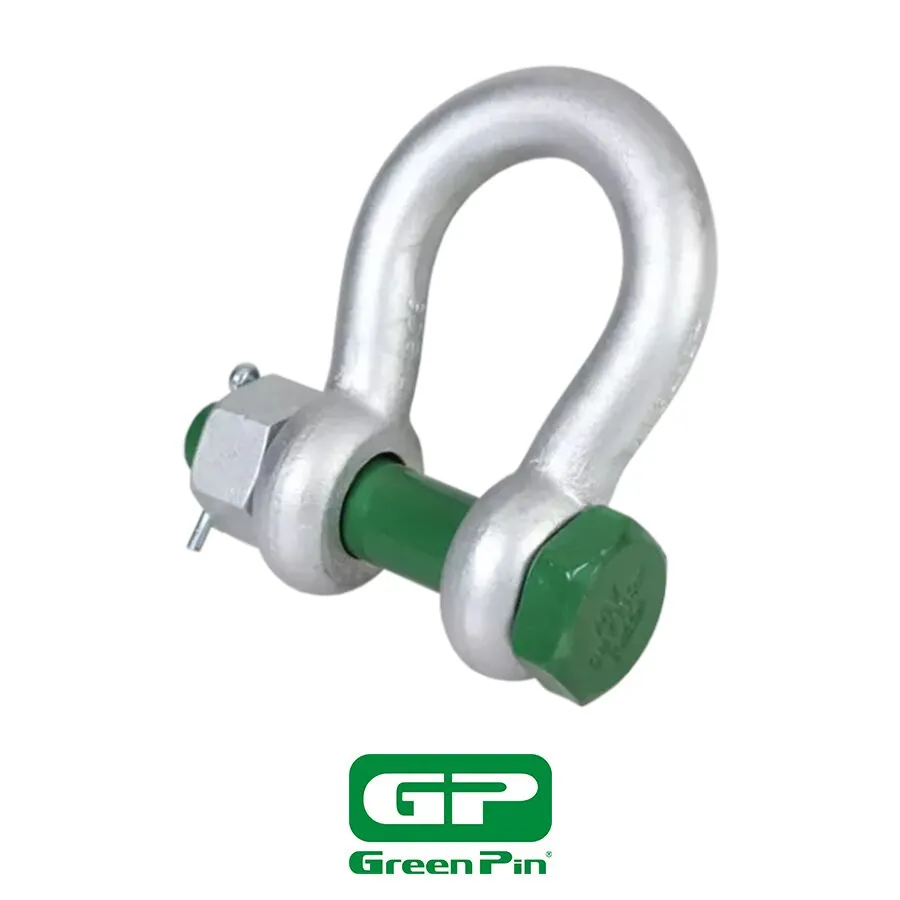

Standard bow shackle with safety bolt acc. to NS 9415
Productcode
G-4163BG
Material
bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor
MBL equals 6 x WLL
Finish
hot dipped galvanized
Temp. range
-40°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
CE
DNV NS 9415
Standard
EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A and NS 9415. From 2 t and upward these shackles comply with ASME B30.26
| Article code | working load limit (ton) | diameter bow (mm) A  |
diameter pin (mm) B |
diameter eye (mm) C |
width eye (mm) D |
width inside (mm) E |
length inside (mm) F |
width bow (mm) G |
length (mm) H |
length bolt (mm) I |
width (mm) J |
thickness nut (mm) K |
Net weight (KG) | |
 |
GPGHMBHDG13 | 2 | 13,5 | 16 | 34 | 13 | 22 | 51 | 32 | 89 | 82 | 58 | 13 | 0.42 |
|
GPGHMBHDG16 | 3,25 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 98 | 75 | 17 | 0.74 |
|
GPGHMBHDG19 | 4,75 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 114 | 89 | 19 | 1.18 |
|
GPGHMBHDG22 | 6,5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 22 | 1.77 |
|
GPGHMBHDG25 | 8,5 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 150 | 118 | 25 | 2.58 |
|
GPGHMBHDG28 | 9,5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 166 | 131 | 27 | 3.66 |
|
GPGHMBHDG32 | 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 178 | 147 | 30 | 4.91 |
|
GPGHMBHDG35 | 13,5 | 35 | 38 | 80 | 35 | 57 | 133 | 92 | 227 | 197 | 162 | 33 | 6.54 |
|
GPGHMBHDG38 | 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 202 | 175 | 19 | 8.19 |
|
GPGHMBHDG45 | 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 249 | 216 | 23 | 14.0 |
| Article code | working load limit (ton) | diameter bow (inch) A |
diameter pin (inch) B |
diameter eye (inch) C |
width eye (inch) D |
width inside (inch) E |
length inside (inch) F |
width bow (inch)G |
length (inch) H |
length bolt (inch) I |
width (inch) J |
thickness nut (inch) K |
Net weight (LBS) | |
|
GPGHMBHDG13 | 2 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 2 | 1 1/4 | 3 1/2 | 3 7/32 | 2 9/32 | 1/2 | 0.92 |
|
GPGHMBHDG16 | 3,25 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 17/32 | 1 11/16 | 4 11/32 | 3 27/32 | 2 15/16 | 21/32 | 1.62 |
|
GPGHMBHDG19 | 4,75 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 3 | 2 | 5 3/32 | 4 1/2 | 3 1/2 | 3/4 | 2.59 |
|
GPGHMBHDG22 | 6,5 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 3 9/32 | 2 9/32 | 5 21/32 | 5 1/8 | 4 1/32 | 7/8 | 3.90 |
|
GPGHMBHDG25 | 8,5 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 3/4 | 2 11/16 | 6 15/32 | 5 29/32 | 4 21/32 | 31/32 | 5.69 |
|
GPGHMBHDG28 | 9,5 | 1 1/8 | 1 1/4 | 2 19/32 | 1 3/32 | 1 27/32 | 4 1/4 | 2 15/16 | 7 9/32 | 6 17/32 | 5 5/32 | 1 1/16 | 8.07 |
|
GPGHMBHDG32 | 12 | 1 1/4 | 1 3/8 | 2 27/32 | 1 1/4 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 7 | 5 25/32 | 1 3/16 | 10.8 |
|
GPGHMBHDG35 | 13,5 | 1 3/8 | 1 1/2 | 3 5/32 | 1 3/8 | 2 1/4 | 5 1/4 | 3 5/8 | 8 15/16 | 7 3/4 | 6 3/8 | 1 5/16 | 14.4 |
|
GPGHMBHDG38 | 17 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 3/4 | 3 29/32 | 9 13/16 | 7 15/16 | 6 7/8 | 3/4 | 18.1 |
|
GPGHMBHDG45 | 25 | 1 3/4 | 2 | 4 1/16 | 1 25/32 | 2 29/32 | 7 | 4 31/32 | 11 13/16 | 9 13/16 | 8 1/2 | 29/32 | 30.8 |
The Green Pin® Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. The shackle’s hot dipped galvanization ensures long-term durability as required by the NS 9415 standard, in compliance with NYTEK regulation. Green Pin® Bow Shackle NS9415 BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 2 up to 25 t.
