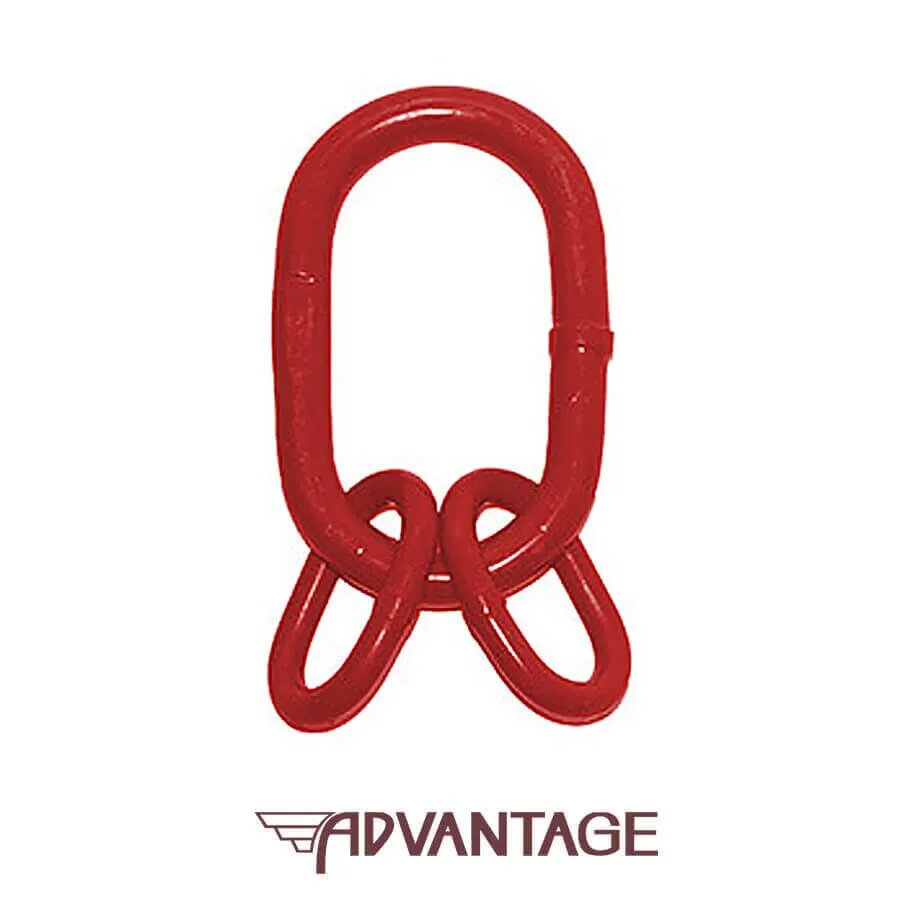

Grade 80 Master Link Sub Assembly

SIZE STOCK NUMBER WEIGHT/PIECE(LBS.) WORKING LOAD LIMIT(LBS.) FOR CHAIN SIZE
3/4″ MLSA750 2.91 9,100 9/32″
7/8″ MLSA875 5.11 13,800 5/16″
1″ MLASA100 7.76 20,800 3/8″
1 1/4″ MLSA1250 13.80 31,200 1/2″
1 1/2″ MLSA1500 21.74 49,000 5/8″

When re-certifying a master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.

CHAIN SIZE SINGLE SLING AT 90° ANGLEline-1 DOUBLE SLING AT 60° ANGLEline-2 DOUBLE SLING AT 45° ANGLEline-3 DOUBLE SLING AT 30° ANGLEline-4 TRIPLE/QUADRUPLE AT 60° ANGLEline-5 TRIPLE/QUADRUPLE AT 45° ANGLEline-6 TRIPLE/QUADRUPLE AT 30° ANGLEline-7 CHAIN SIZE
9/32″ 3,500 6,100 4,900 3,500 9,100 7,400 5,200 9/32″
3/8″ 7,100 12,300 10,000 7,100 18,400 15,100 10,600 3/8″
1/2″ 12,000 20,800 17,000 12,000 31,200 25,500 18,000 1/2″
5/8″ 18,100 31,300 25,600 18,100 47,000 38,400 27,100 5/8″
3/4″ 28,300 49,000 40,000 28,300 73,500 60,000 42,400 3/4″
7/8″ 34,200 59,200 48,400 34,200 88,900 72,500 51,300 7/8″
1″ 47,700 82,600 67,400 47,700 123,900 101,200 71,500 1″
1 1/4″ 72,300 125,200 102,200 72,300 187,800 153,400 108,400 1 1/4″

When re-certifying a master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
