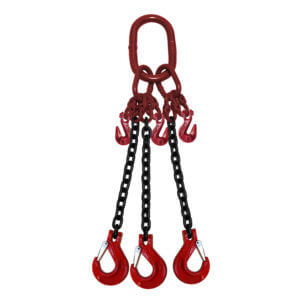

Grade 80 ATOS Chain Sling

Grade 80 ATOS Chain Sling

• Grade 80 chain slings are approved by OSHA for overhead lifting.
• Black Lacquer chain.

CHAIN SIZE TRIPLE/
QUADRUPLE
AT 60° ANGLE
TRIPLE/
QUADRUPLE
AT 45° ANGLE
TRIPLE/
QUADRUPLE
AT 30° ANGLE
line-5 line-6 line-7
9/32” 9,100 7,400 5,200
3/8” 18,400 15,100 10,600
1/2” 31,200 25,500 18,000
5/8” 47,000 38,400 27,100
3/4” 73,500 60,000 42,400
7/8” 88,900 72,500 51,300
1” 123,900 101,200 71,500
1 1/4” 187,800 153,400 108,400

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
