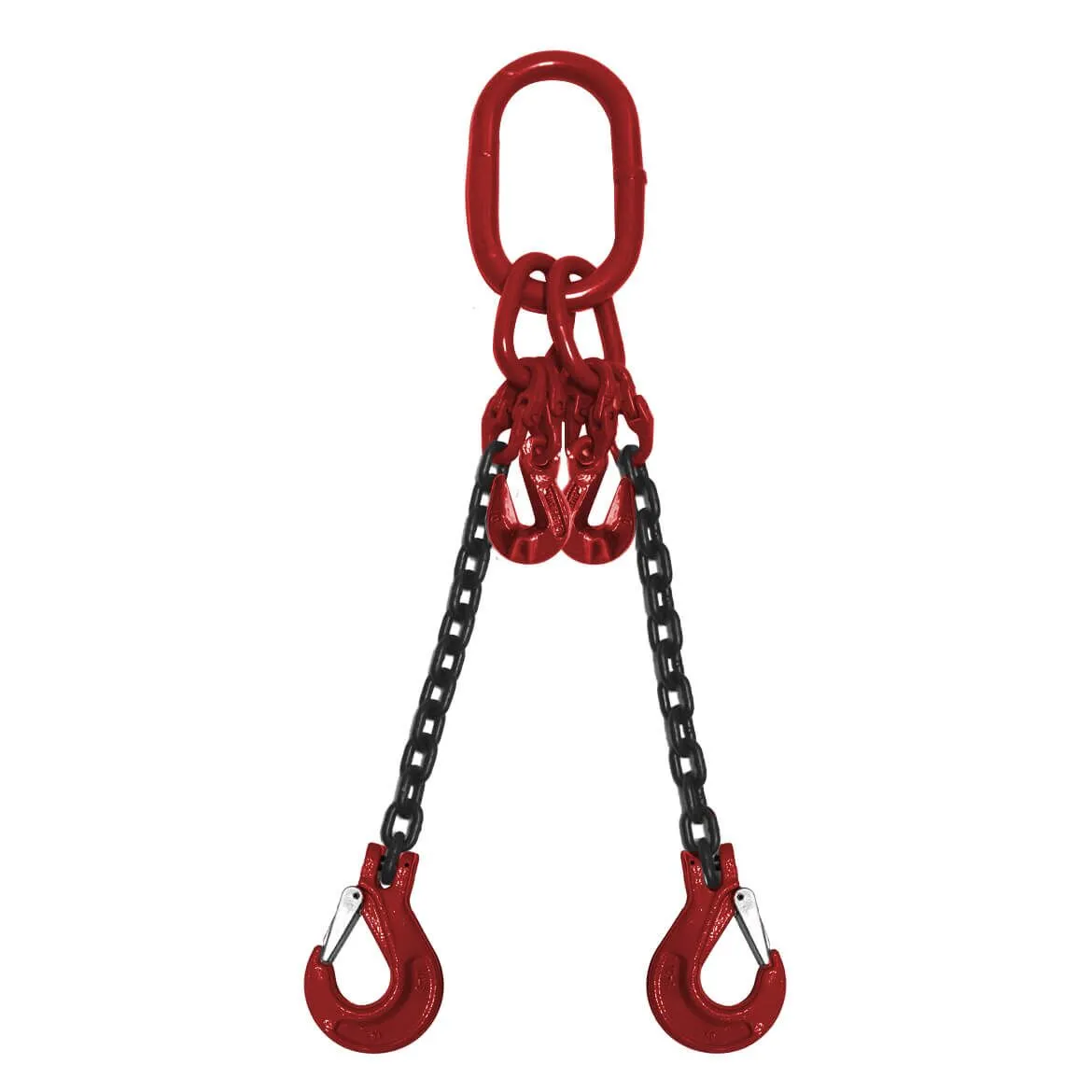

| CHAIN SIZE | DOUBLE SLING AT 60° ANGLE |
DOUBLE SLING AT 45° ANGLE |
DOUBLE SLING AT 30° ANGLE |
|---|---|---|---|
 |
 |
 |
|
| 9/32” | 6,100 | 4,900 | 3,500 |
| 3/8” | 12,300 | 10,000 | 7,100 |
| 1/2” | 20,800 | 17,000 | 12,000 |
| 5/8” | 31,300 | 25,600 | 18,100 |
| 3/4” | 49,000 | 40,000 | 28,300 |
| 7/8” | 59,200 | 48,400 | 34,200 |
| 1” | 82,600 | 67,400 | 47,700 |
| 1 1/4” | 125,200 | 102,200 | 72,300 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
Grade 8 bow shackle with safety bolt for use under low temperatures Product details Productcode G-5163 Material bow and pin alloy steel, Grade 8, quenched and tempered Safety factor MBL equals 7 x WLL, for shackles with WLL 55 and 85 tons the MBL equals 6 x WLL Finish...
Grade 8 bow shackle with safety bolt and fixed nut Product details Productcode G-5243 Material bow and pin alloy steel, Grade 8, quenched and tempered Safety factor MBL equals 5 x WLL Finish hot dipped galvanized (150 ton and upward are painted) Temp. range -20°C up...
Grade 8 bow shackle with safety bolt Product details Productcode G-5263 Material bow and pin alloy steel, Grade 8, quenched and tempered Safety factor MBL equals 5 x WLL Finish hot dipped galvanized (150 ton and upward are painted) Temp. range -20°C up to +200°C...
Abrasion Resistance Easy to Splice Torque-Free Low-Stretch Good Flex Fatigue Pelican Tuff™ urethane coating available upon request Optional Pelican Tuff™ Coating Colors available: Red, Orange, Yellow, Green, Blue, Gray, Black Available by the mile Eye Option: Spliced...
