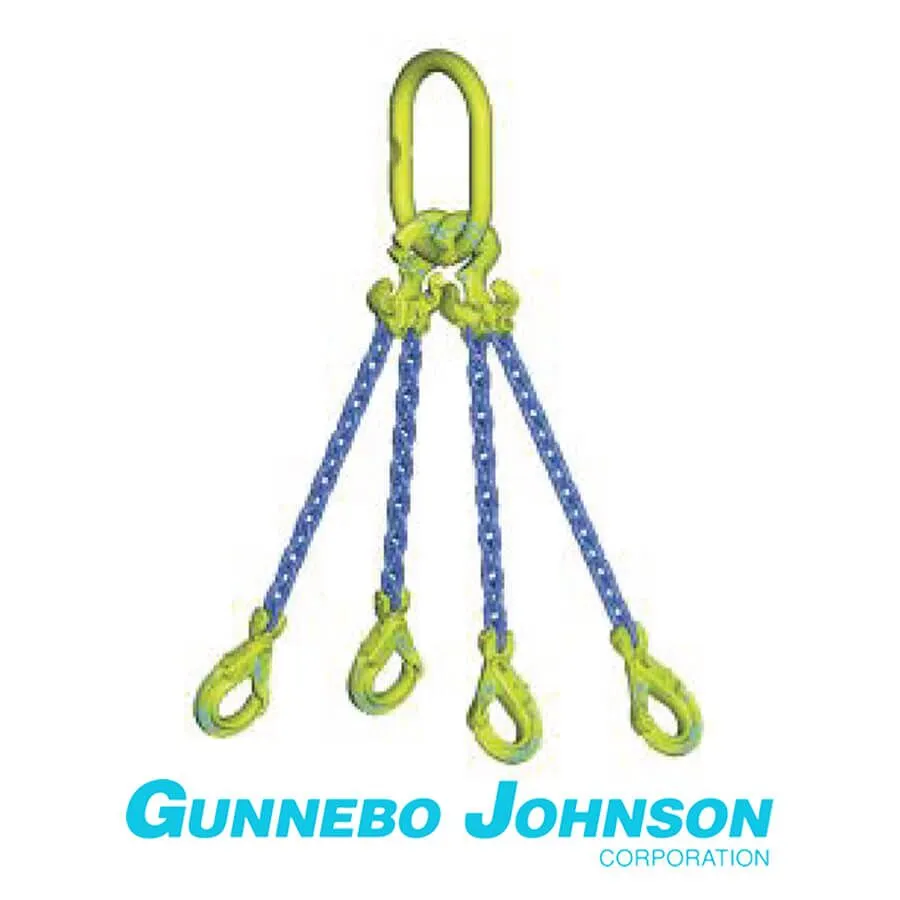

Gunnebo-Johnson GrabiQ Quadruple Leg TG4-GBK

Gunnebo-Johnson GrabiQ Quadruple Leg TG4-GBK

Consists of: Master Link MF, C-grab Duo CGD, Chain KLA, Safety Hook GBK

Chain Size WLL (lb) Total Component Length (in)
(mm) (in) 60° 45° 30°
6 8400 6800 4850 12.24
8 5/16” 14800 12100 8500 15.43
10 3/8” 22900 18700 13200 18.66
13 1/2” 39000 31800 22500 23.78
16 5/8” 58700 47900 33900 26.77

4:1 Design Factor

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
