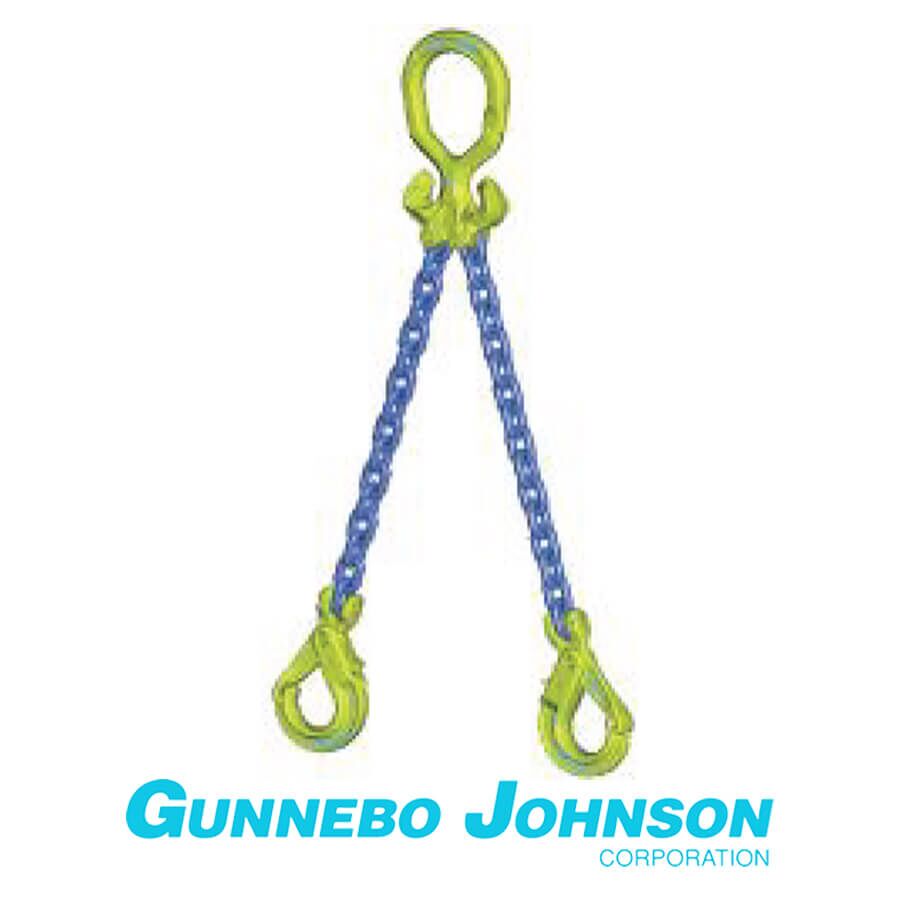

Consists of: Master Link MGD, Chain KLA, Safety Hook GBK
| Chain Size | WLL (lb) | Total Components Length (in) | |||
|---|---|---|---|---|---|
| (mm) | (in) |  60° |  45° |  30° | |
| 6 | – | 5500 | 4625 | 3300 | 9.25 |
| 8 | 5/16” | 9900 | 8100 | 5700 | 11.65 |
| 10 | 3/8” | 15200 | 12400 | 8800 | 14.21 |
| 13 | 1/2” | 26000 | 21200 | 15000 | 17.83 |
| 16 | 5/8” | 39100 | 32000 | 22600 | 20.75 |
4:1 Design Factor
