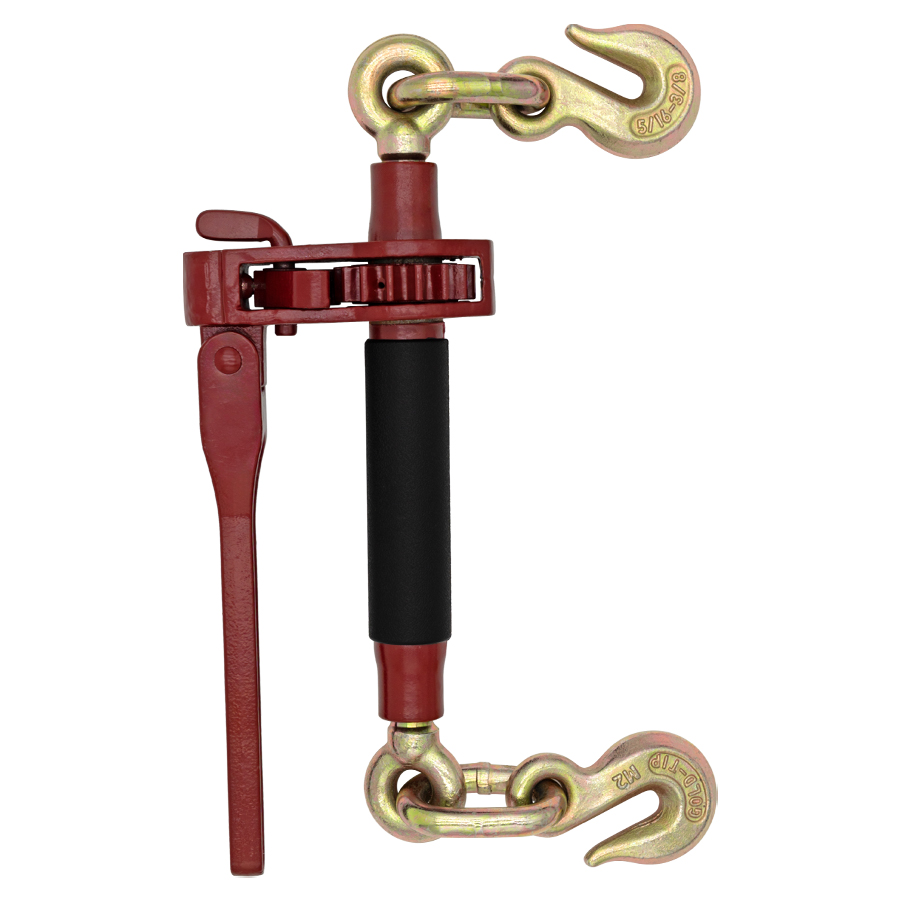

GOLD-TIP® Folding Handle Binders

GOLD-TIP® Folding Handle Binders
  • 3 Sizes Available: 5/16”-3/8” | 3/8”-1/2” | 1/2”-5/8”
  • Heavy Duty Powder Coated Straight Barrel
  • Load binders are heat treated and proof tested with forged hooks

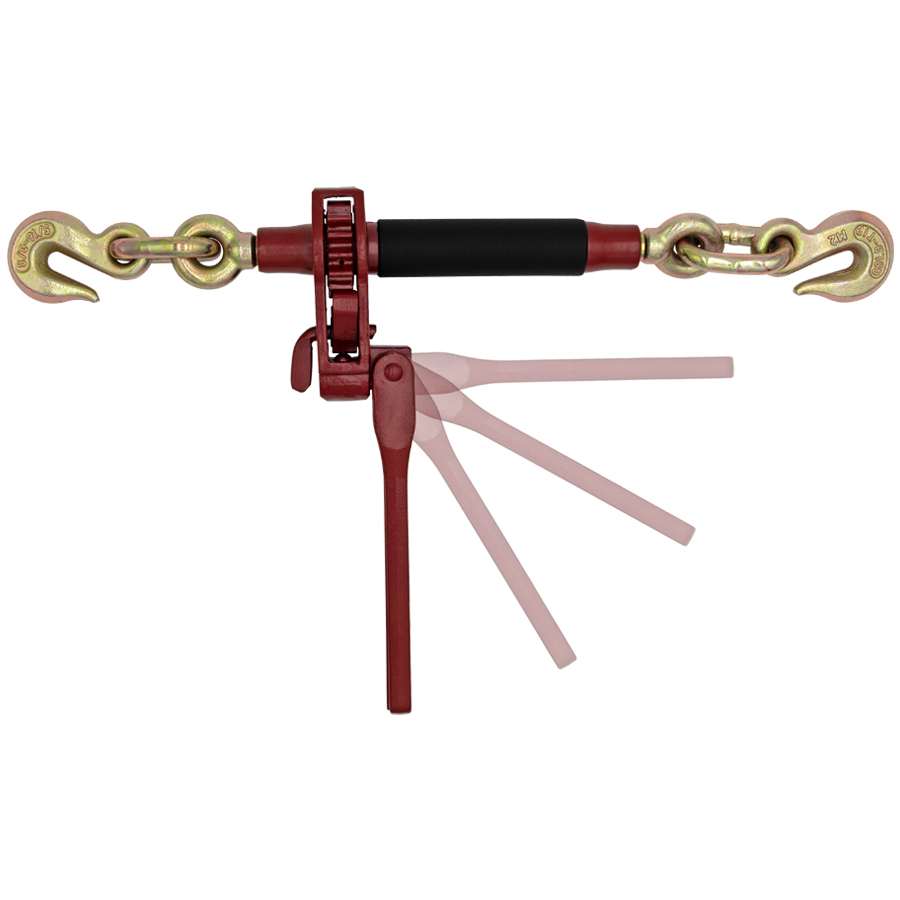

  • The folding handle lets you easily position it out of the way, safer to use

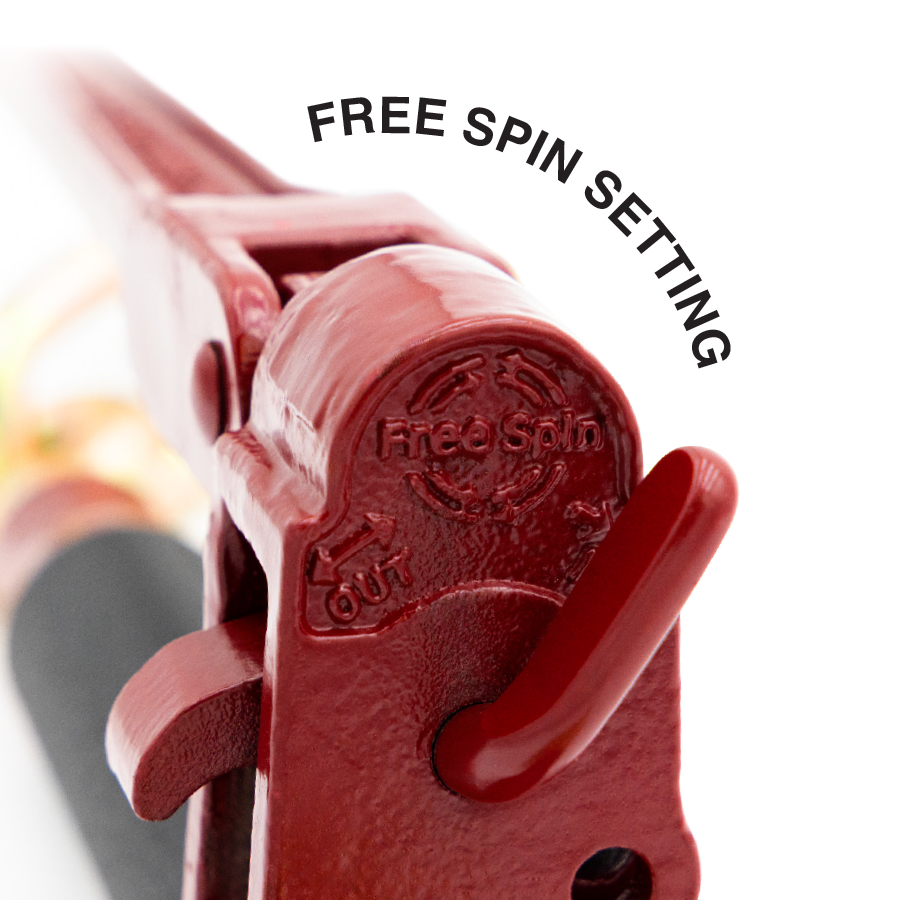

  • The 3-position pawl offers the user a choice of ratchet extension, ratchet take-up or a “free spin” setting for fast adjustment in either direction
Contact Your Local Branch To Learn More

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

STOCK NUMBER GRAB HOOK SIZE TAKE-UP BARREL LENGTH HANDLE LENGTH SCREW DIAMETER BEARING TO BEARING (CLOSED-OPEN) WORKING LOAD LIMIT (LBS.) PROOF LOAD LIMIT (LBS.) WEIGHT (LBS.) CHAIN SIZE/ GRADE
GTFH375

3/8”

6”

10”

9.5”

7/8”

22.5” – 28.5”

8,800

17,600

10.8

3/8” G100
GTFH500

1/2”

6”

10”

9.5”

7/8”

23.5” – 29.5”

12,000

24,000

12.6

1/2” G80
GTFH625

5/8”

6”

10”

9.5”

1”

26.5” – 32.5”

18,100

36,200

17

5/8” G80

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
