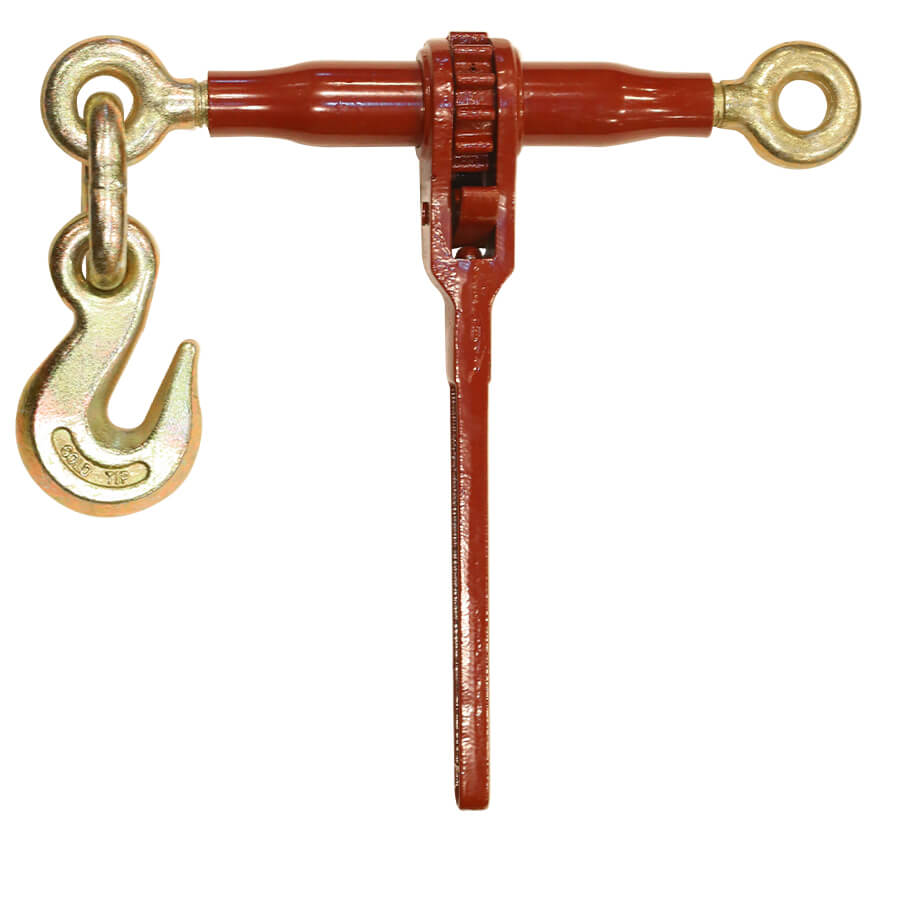

GOLD-TIP® Eye-Grab Ratchet Load Binder

GOLD-TIP® Eye-Grab Ratchet Load Binder

• Tapered, heavy duty barrel
• Eye-Grab end fittings
• Fittings are yellow zinc plated
• Powder coated handle and barrel
• All load bearing fittings are forged
• Quenched and tempered
• One piece handle

STOCK NUMBER TAKE-UP BARREL LENGTH HANDLE LENGTH SCREW DIAMETER BEARING TO BEARING (CLOSED-OPEN) WORKING LOAD LIMIT (LBS.) PROOF LOAD (LBS.) WEIGHT/ PIECE (LBS.)
GT7300EH 8” 10” 15.5” 1” 19” – 27” 7,300 14,600 12
GT12000EH 8” 10” 15.5” 1” 19” – 27” 12,000 24,000 15

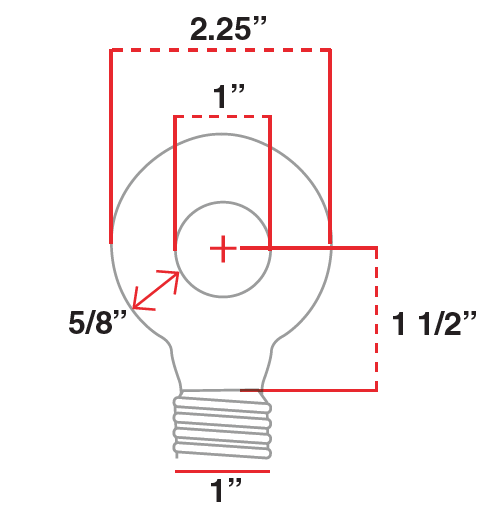

eye dimensions eyejaw

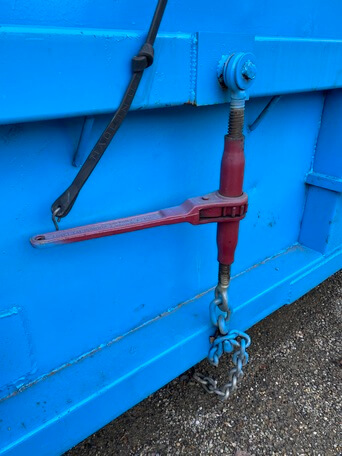

Eye-Grab-GoldTip-Binder1

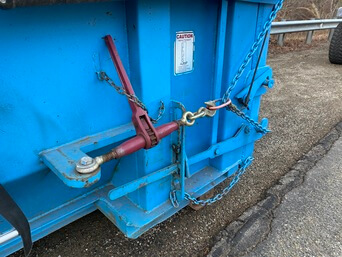

Eye-Grab-GoldTip-Binder2

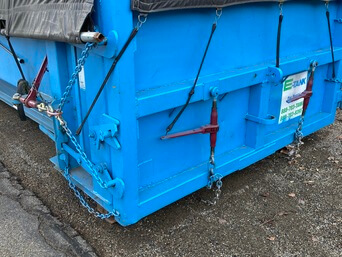

Eye-Grab-GoldTip-Binder3

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
