FXR 1,650 Lb for Lifting Round Materials at Full Capacity

FXR 1,650 Lb for Lifting Round Materials at Full Capacity

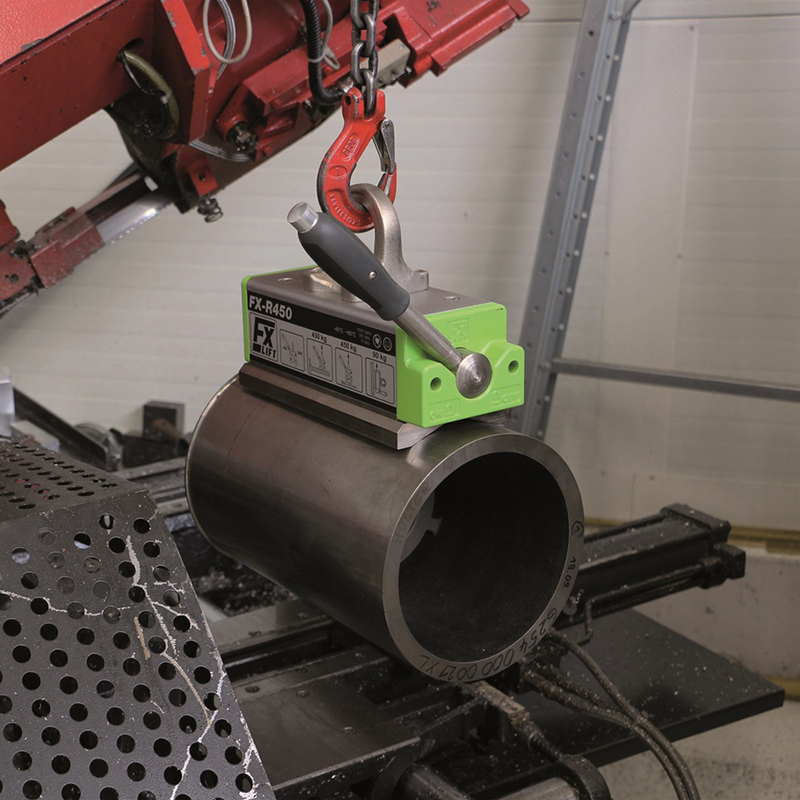

The FXR is recommended for when lifting round/curved surfaces such as shafts, thick walled pipe, or billet, but occasionally need to lift flat material. Specially designed pole shoes provide a deep penetrating magnetic field and part stability.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

CERTEX Cat. Ref. No. HEIGHT (IN) LENGTH (IN) WEIGHT (LBS) BAIL HEIGHT (IN) BAIL THICKNESS (IN) BAIL WIDTH (IN) WLL (LBS) HANDLE LENGTH (IN) MAGNET HEIGHT (IN) MAGNET LENGTH (IN) MAGNET WIDTH (IN) MAGNET POLE QUALITY
FXR1650 10.3 14.2 108 3 0.8 2.3 1650 10.2 5.6 13 6.7 2



On/Off, Rare-Earth Permanent Magnet
On/off handle only requires 90° rotation
and locks at both on/off positions
Durable, recessed metal name plates, not stickers
Corrosion resistant, plated-magnet surface
Heat resistant up to 180°F (82°C)
3:1 Design Factor
2018 ASME B30.20 BTH-1 Design Category B, Service Class 3

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
