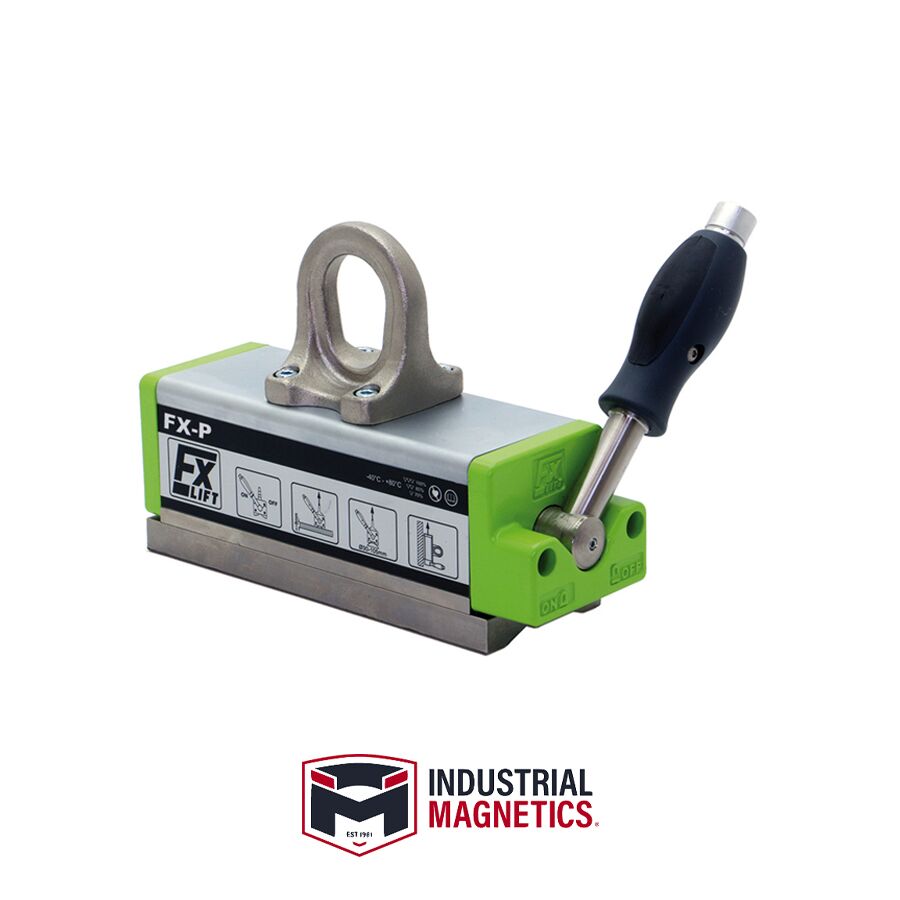

FXP 725 Lb for Lifting Thin Sheet, Tubes and Profiles

FXP 725 Lb for Lifting Thin Sheet, Tubes and Profiles

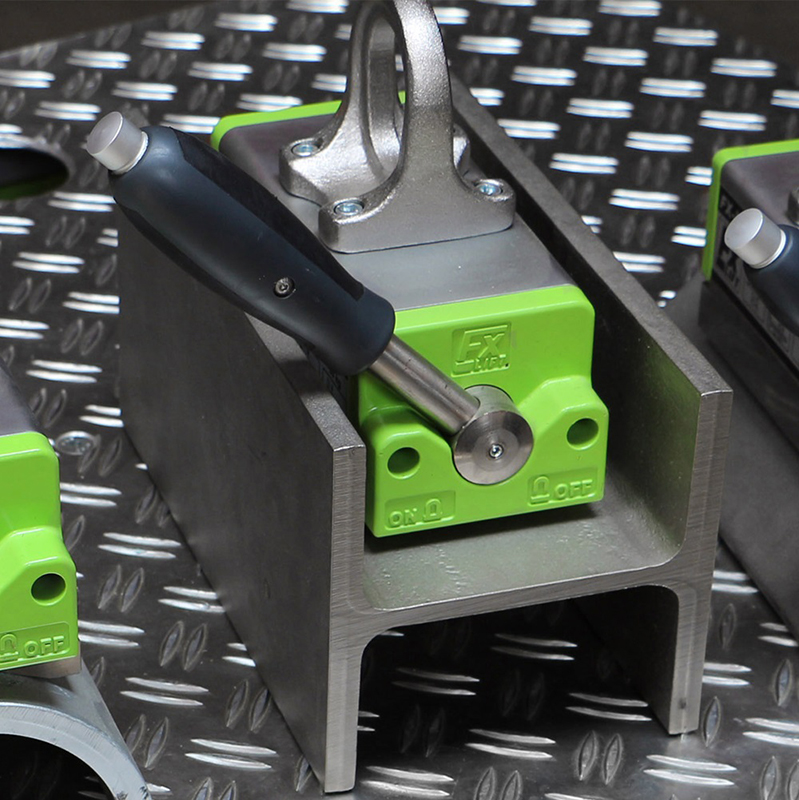

Ideal for thin sheets or parts, tanks/containers, and thin-walled pipes that normally can’t be lifted with a permanent, on/off magnet. The magnetic field on the FXP is concentrated and shallow to drive the strength into the thin material.

CERTEX Cat. Ref. No. HEIGHT (IN) LENGTH (IN) WEIGHT (LBS) BAIL HEIGHT (IN) BAIL THICKNESS (IN) BAIL WIDTH (IN) WLL (LBS) HANDLE LENGTH (IN) MAGNET HEIGHT (IN) MAGNET LENGTH (IN) MAGNET WIDTH (IN) MAGNET POLE QUALITY
FXP0725 6.7 10.4 28 2 0.5 1.6 725 7.5 3.5 9.4 3.4 2



  • On/Off, Rare-Earth Permanent Magnet
  • On/off handle only requires 90° rotation
  • and locks at both on/off positions
  • Durable, recessed metal name plates, not stickersa
  • Corrosion resistant, plated-magnet surface
  • Heat resistant up to 180°F (82°C)
  • 3:1 Design Factor
  • 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
