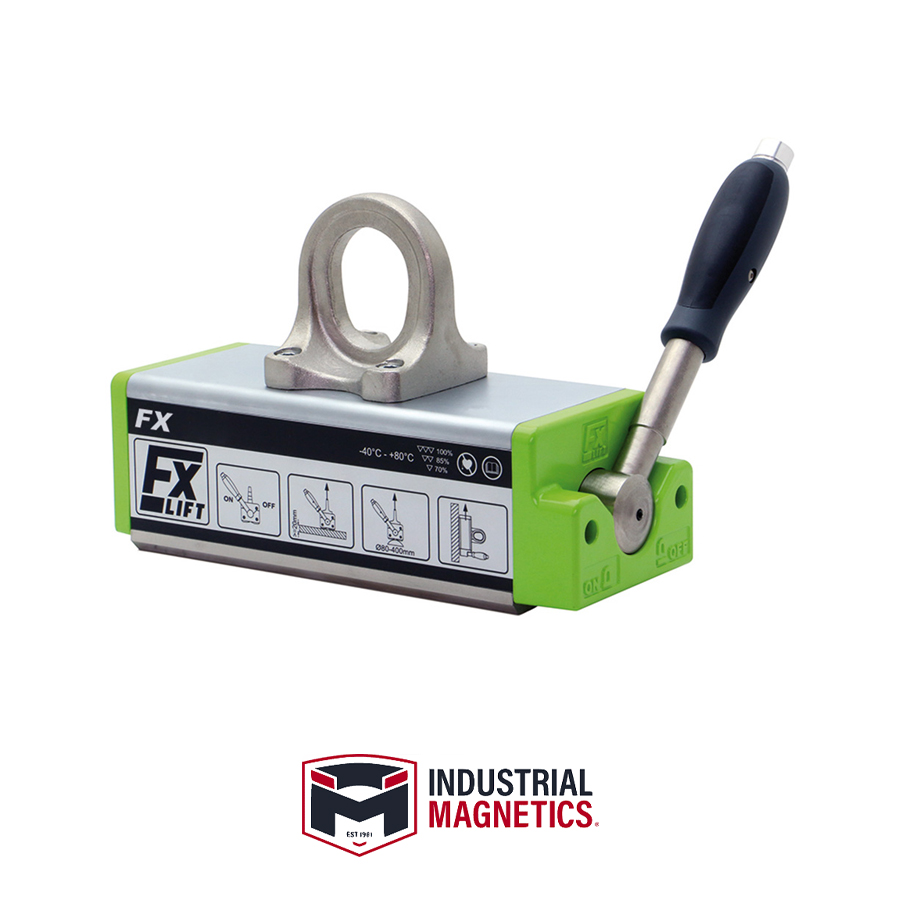

FX 2,200 Lb Universal, Thick Flat & Round

FX 2,200 Lb Universal, Thick Flat & Round

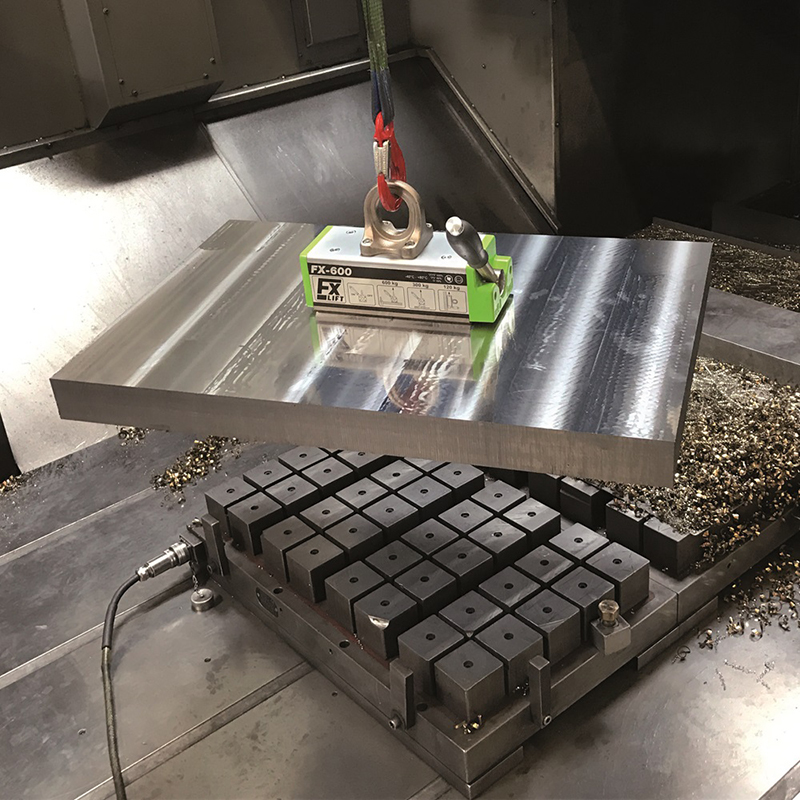

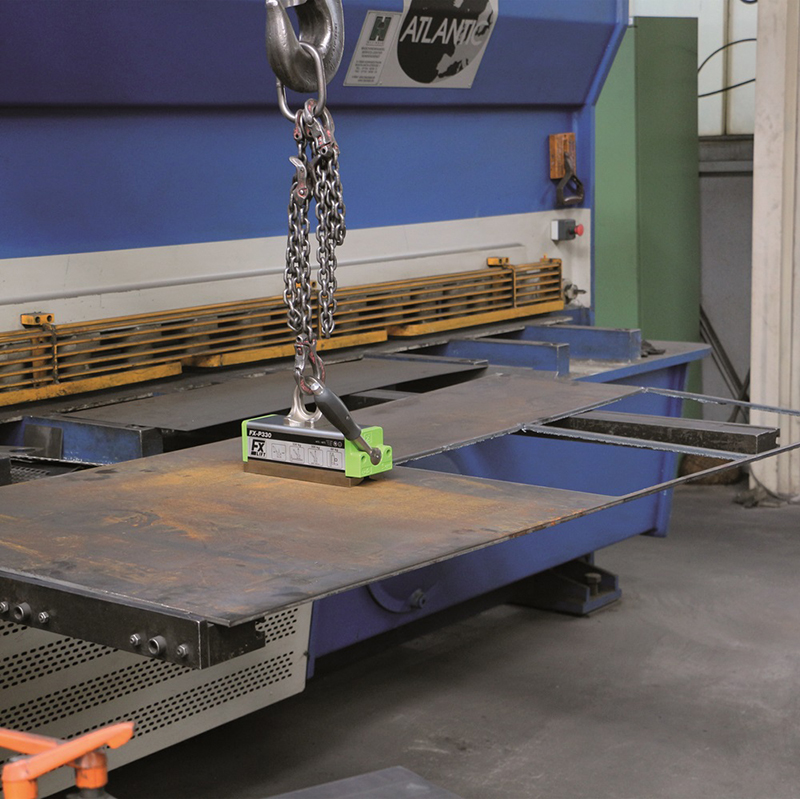

The FX universal, on/off permanent lift magnets are ideal for a variety of manufacturing applications where you’re mostly lifting flat material, but occasionally need to lift rounds.

CERTEX Cat. Ref. No. HEIGHT (IN) LENGTH (IN) WEIGHT (LBS) BAIL HEIGHT (IN) BAIL THICKNESS (IN) BAIL WIDTH (IN) WLL (LBS) HANDLE LENGTH (IN) MAGNET HEIGHT (IN) MAGNET LENGTH (IN) MAGNET WIDTH (IN) MAGNET POLE QUALITY
FX2200 9.4 14.2 93 3 0.8 1 2200 10.2 4.7 12 6 2
  • On/Off, Rare-Earth Permanent Magnet
  • On/off handle only requires 90° rotation
  • and locks at both on/off positions
  • Durable, recessed metal name plates, not stickers
  • Corrosion resistant, plated-magnet surface
  • Heat resistant up to 180°F (82°C)
  • 3:1 Design Factor|2018 ASME B30.20 BTH-1 Design Category B, Service Class 3

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
