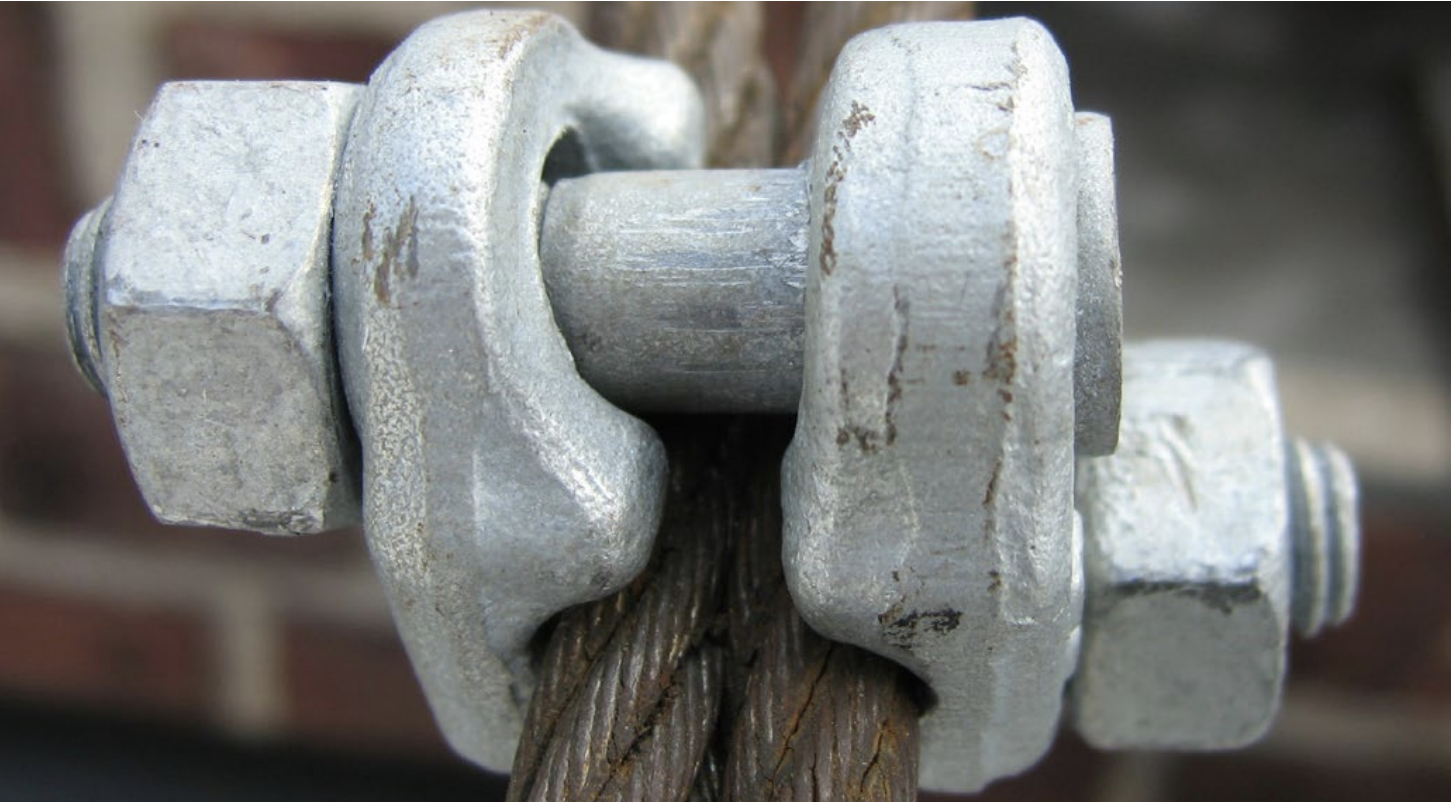

Crosby® Fist Grip® Clips

Crosby® Fist Grip® Clips

G-429

  • Fist Grip® Clips – Warnings & Application Instructions
  • Bolts are an integral part of the saddle. Nuts can be installed in such a way as to enable the operator to swing the wrench in a full arc for fast installation.
  • All sizes have forged steel saddles.
  • Entire clip is Galvanized to resist corrosive and rusting action.
  • All Clips are individually bagged or tagged with proper application instructions and warning information.
  • Assembled with standard heavy hex nuts. Fist Grip® wire clips meet or exceed the performance requirements of Federal Specification FF-C-450 Type III, Class 1, except for those provisions required of the contractor.
ROPE SIZE (IN) CERTEX CROSBY
STOCK

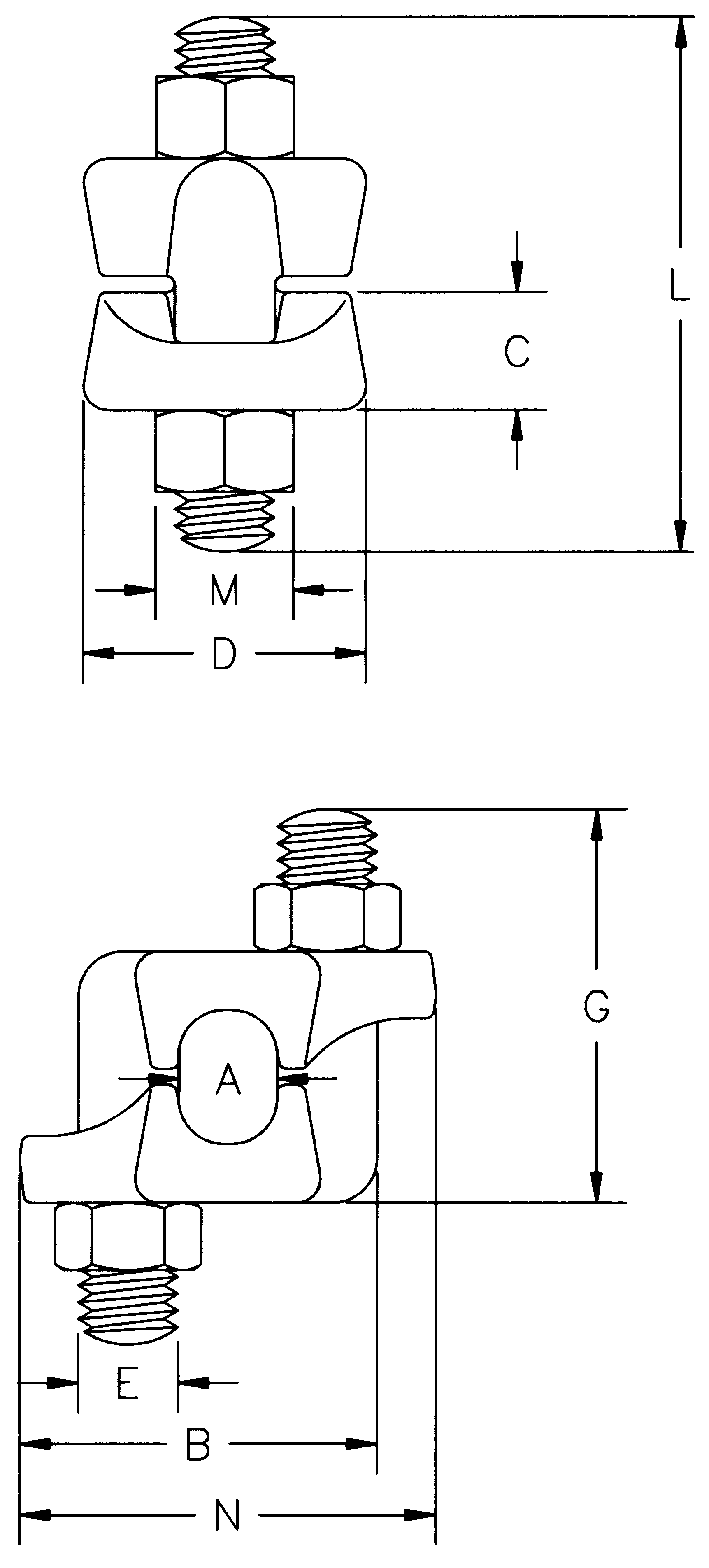

DIMENSIONS (IN)
A B C D E G APPROX L M N
3/16-1/4 CX04-0031 1010471 .25 1.25 .34 .94 .38 1.28 1.63 .69 1.47
5/16 CX04-0032 1010499 .31 1.34 .44 1.06 .38 1.47 1.94 .69 1.56
3/8 CX04-0033 1010514 .38 1.59 .50 1.06 .44 1.81 2.38 .75 1.88
7/16-1/2 CX04-0034 1010532 .50 1.88 .56 1.25 .50 2.19 2.75 .88 2.19
9/16-5/8 CX04-0035 1010550 .63 2.28 .69 1.50 .63 2.69 3.50 1.06 2.63
3/4 CX04-0036 1010578 .75 2.69 .88 1.81 .75 2.94 3.75 1.25 3.06
7/8 CX04-0037 1010596 1.00 2.97 .97 2.13 .75 3.31 4.13 1.25 3.14
1 CX04-0038 1010612 1.00 3.06 1.19 2.25 .75 3.72 4.63 1.25 3.53
1 1/8 CX04-0039 1010630 1.13 3.44 1.28 2.38 .88 4.19 5.25 1.44 3.91
1 1/4 CX04-0040 1010658 1.25 3.56 1.34 2.50 .88 4.25 5.25 1.44 4.03
1-3/8-1-1/2 CX04-0041 1010676 1.50 4.13 1.56 3.00 1.00 5.56 7.00 1.63 4.66

Efficiency ratings for wire rope end terminations are based upon the catalog breaking strength of wire rope. The efficiency rating of a properly prepared loop or thimble-eye termination for clip sizes 1/8˝ through 7/8˝ is 80%, and for sizes 1˝ through 3-1/2˝ is 90%.

The number of clips shown (see Table 1) is based upon using RRL or RLL wire rope, 6 x 19 or 6 x 37 Class, FC or IWRC; IPS or XIP. If Seale construction or similar large outer wire type construction in the 6 x 19 Class is to be used for sizes 1˝ and larger, add one additional clip. If a pulley (sheave) is used for turning back the wire rope, add one additional clip.

The number of clips shown also applies to rotationresistant RRL wire rope, 8 x 19 Class, IPS, XIP, sizes 1-1/2˝ and smaller; and to rotation-resistant RRL wire rope, 19 x 7 Class, IPS, XIP, sizes 1-1/2˝ and smaller.

For other classes of wire rope not mentioned above, we recommend contacting Crosby Engineering at the address or telephone number on the back cover to ensure the desired efficiency rating.

The style of wire rope termination used for any application is the obligation of the user.

For OSHA (Construction) applications, see OSHA 1926.251.

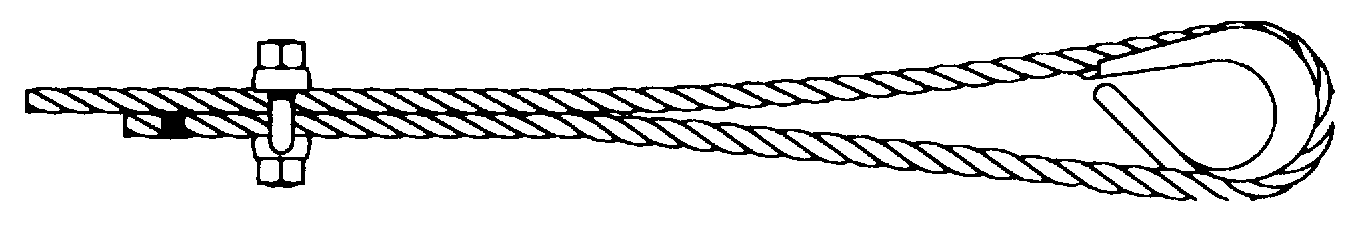

1. Refer to Table 1 in following these instructions. Turn back specified amount of rope from thimble or loop. Apply first clip one base width from dead end of rope. Tighten nuts evenly, alternating from one nut to the other until reaching the recommended torque.

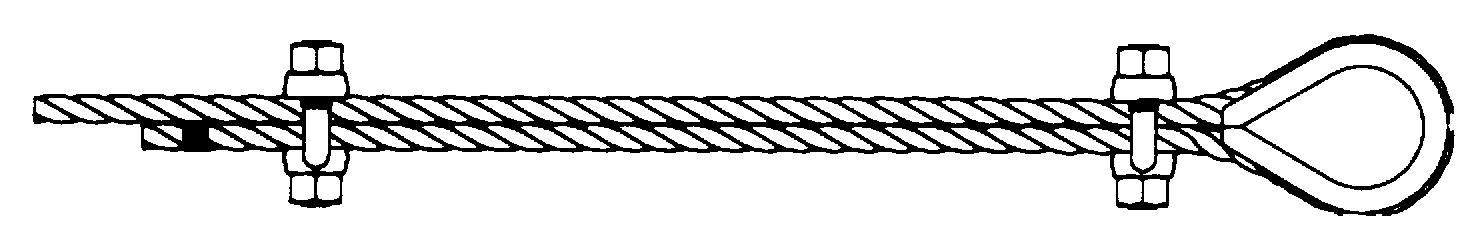

2. When two clips are required, apply the second clip as near the loop or thimble as possible. Tighten nuts evenly, alternating until reaching the recommended torque. When more than two clips are required, apply the second clip as near the loop or thimble as possible, turn nuts on second clip firmly, but do not tighten. Proceed to Step 3.

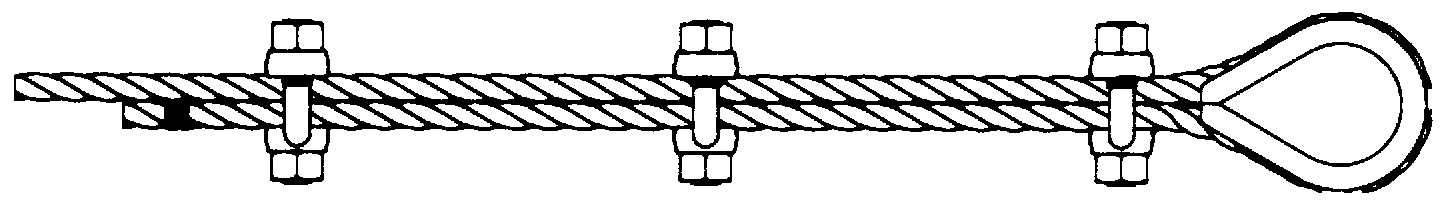

3. When three or more clips are required, space additional clips equally between first two—take up rope slack—tighten nuts on all clips, alternating from one nut to the other until reaching recommended torque.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
