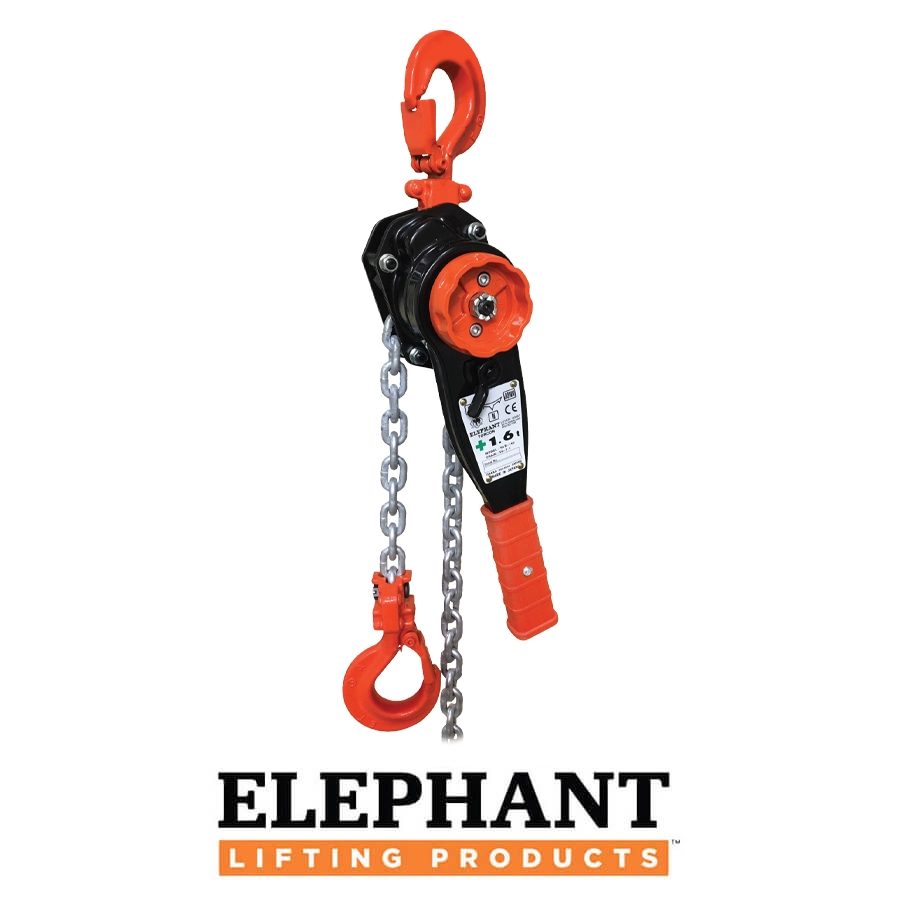

Elephant YAIII Lever Hoist (New Model)

Elephant YAIII Lever Hoist (New Model)
  • Overload Protection 0.8 ~ 9 ton
  • The torcon overload protection safety device engages when the hoist is overloaded, helping to prevent damage to the hoist, as well as injury to personnel.
  • Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard.
  • True one touch free spooling, which automatically brakes when a load is applied.
  • Redesigned hooks with tip supporting safety latch
  • Hoist body has an electro-deposited black finish for corrosion resistance
  • Ratchet recovery of 16.5o for 0.8t~1t and 14o for 1.6t~12t
  • Internal side plates have hardened steel bushings for excellent load sheave & pinion support
  • Internal side plates, pinion, pawls, and pawl springs have an electro-deposited coating that helps resist corrosion
  • Internal disc hub and ratchet wheel are nickel plated for corrosion resistance
  • Suitable for operation within a -20o to +130o C,  -4o to +266o F temperature range
Contact Your Local Branch To Learn More

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

STOCK NUMBER CAPACITY (LBS) CAPACITY (MT) STANDARD LIFT (FT) HAND EFFORT TO LIFT FULL WORKING LOAD (LBF) DIA. OF LOAD CHAIN (MM) NET WEIGHT (LBS) LOAD CHAIN MIN BREAKING LOAD SAFETY FACTOR
YAIII-80 1,760 0.8 5 66 5.6 13 5.2+ 6.5
YAIII-100 2,200 1 5 82 5.6 14 5.2+ 5.2
YAIII-160 3,520 1.6 5 66 7.1 20 8.3+ 5.3
YAIII-320 7,040 3.2 5 82 9 34 13.4+ 4.2
YAIII-630 13,860 6.3 5 84 9 X 2 59 26.8+ 4.3
YAIII-900 19,800 9 5 86 9 X 3 93 40.2+ 4.5
YAIII-1200 26,400 12 5 88 9 X 4 159 53.6+ 4.2

*Test Load is 150% of Rated Load

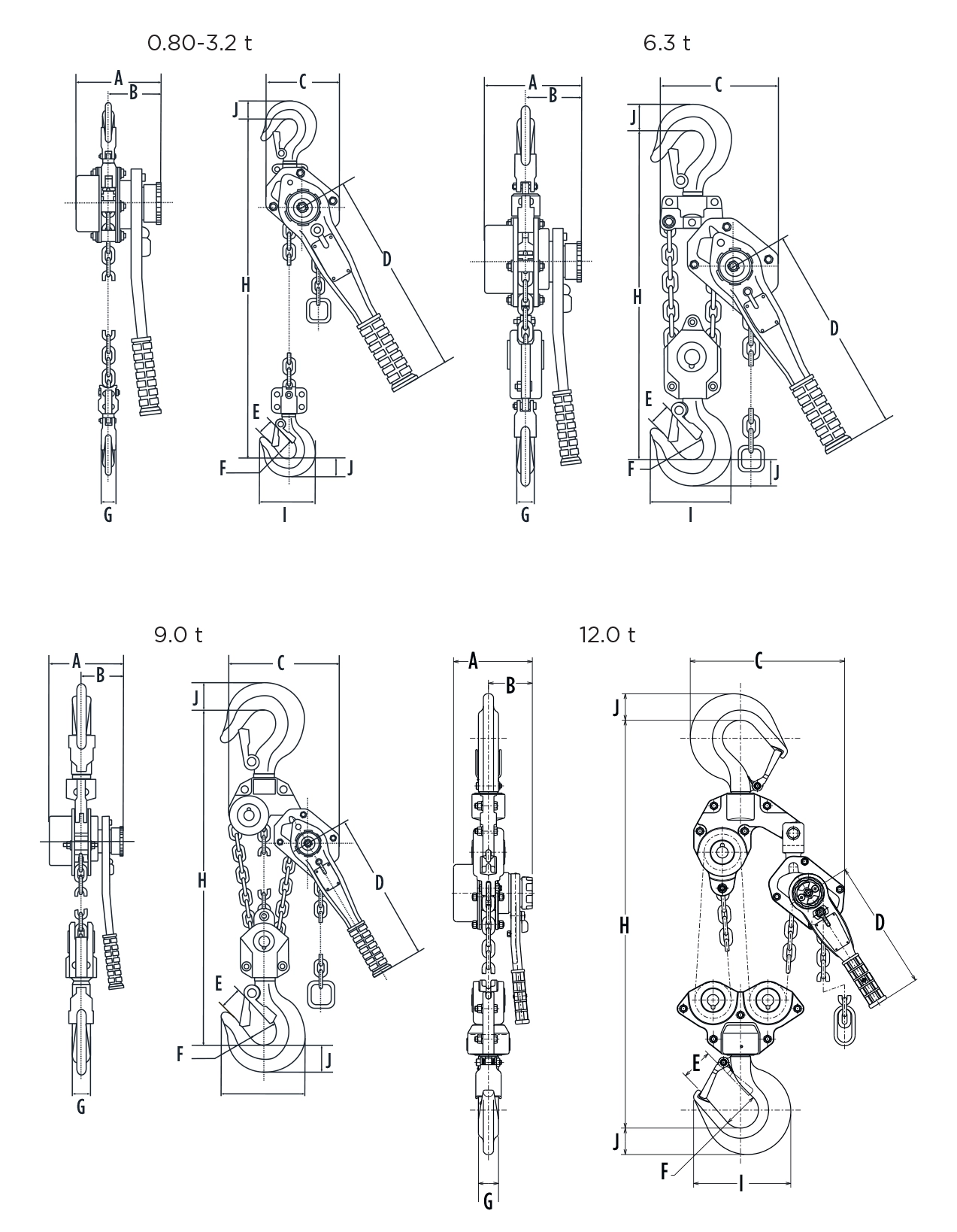

Stock Number DIMENSIONS (IN.)
A B C D E F G H I J
YAIII-80 2.1 3.6 4.8 10.6 0.91 1.4 0.59 11.4 2.76 0.748
YAIII-100 2.1 3.6 4.8 10.6 1.1 1.7 0.63 12.3 2.91 0.866
YAIII-160 2.5 3.9 5.4 12.2 1.2 1.7 0.83 13.9 3.46 1.024
YAIII-320 3.3 4.1 7.1 12.2 1.4 2.1 1.1 16.2 3.66 1.378
YAIII-630 3.3 4.1 9.3 12.2 1.9 2.8 1.3 22.2 4.94 1.811
YAIII-900 3.3 4.1 11.8 12.2 2.9 3.4 1.88 27.1 9.06 2.461
YAIII-1200 3.25 4.09 14.57 12.2 2.91 3.35 1.87 31.06 9.06 2.461

*Specifications & Dimensions are subject to change without notice

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
