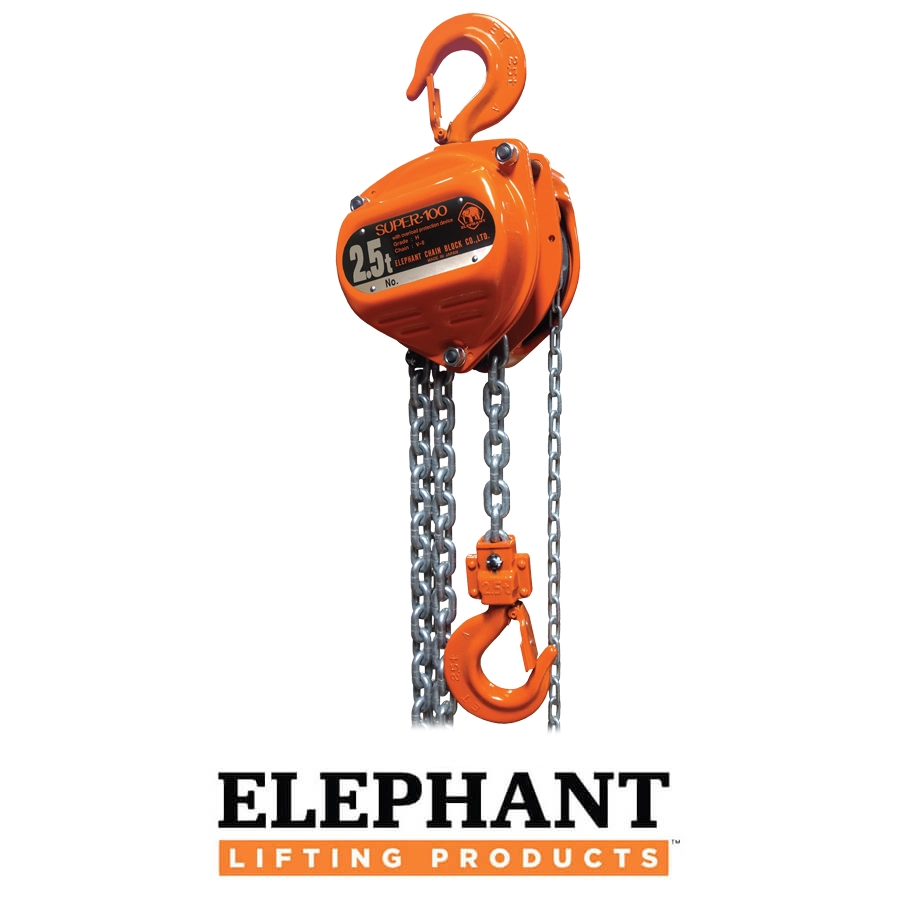

Elephant Super 100 Manual Chain Hoist Overload Protection

Elephant Super 100 Manual Chain Hoist Overload Protection
  • 0.5t ~ 10 ton
  • Overload protection safety device
  • Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard
  • Galvanized hand chain
  • Double pawls supporting fail-safe brake mechanism
  • Load sheave with roller bearing
  • The tough reinforced gear case has four ribs and four knock pins, providing accurate gear centering and high mechanical efficiency
  • Rolled edge hand wheel cover
  • Heavy duty electrostatic powder coating
  • Long life friction discs
  • Suitable for operation within a -20o to +150o C,  -4o to +302o F temperature range

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Stock Number Max Working Load (lbs) Max Working Load (mt) Standard Lift (ft) Manufacturer’s Test Load Headroom (in) “H” Headroom (in) Lug Mount to Elephant P or G Trolley Hand Effort to Lift Full Working Load (lbf) Load Chain Hand Chain Net Weight (lbs)
Dia. X Pitch (mm) No. of Falls Dia. X Pitch (mm)
H100-0.5 1,100 0.5 10 150% X Max. Working Load 10.83 11.7 59.5 5 X 15 1 5 X 23.5 22
H100-1 2,200 1.0 10 11.81 12.5 69.5 6.3 X 19 27
H100-1.6 3,500 1.6 10 13.19 14.5 91.5 7.1 X 21 35
H100-2 4,400 2.0 10 14.77 15.8 88.2 8 X 24 46
H100-2.5 5,500 2.5 10 16.14 18.0 89.3 9 X 27 58
H100-3.1 6,800 3.1 10 20.87 20.5 104.7 7.1 X 21 2 53
H100-5 11,000 5.0 10 125% X Max. Working Load 24.1 24.8 105.8 9 X 27 87
H100-7.5 16,500 7.5 10 29.53 28.5 115.7 9 X 27 3 154
H100-10 22,000 10.0 10 30.52 31.4 115.7 9 X 27 4 182



Stock Number A B C D E F G H
H100-0.5 5.5 6.1 2.3 1.3 1.1 1.4 2.7 10.83
H100-1 6.3 6.3 2.5 1.4 1.2 1.7 3.5 11.81
H100-1.6 7.2 6.6 2.6 1.5 1.4 1.9 4.1 13.19
H100-2 8.5 7.2 2.6 1.6 1.5 2.1 4.5 14.77
H100-2.5 9.2 7.5 2.8 1.7 1.6 2.2 5 16.14
H100-3.1 9.1 6.6 4.4 2.5 1.8 2.4 5.5 20.87
H100-5 11.1 7.5 6.6 3.1 2.1 2.8 6.4 24.61
H100-7.5 14.6 7.5 5.8 3.2 2.8 3.4 9 29.53
H100-10 15.2 7.5 11.8 3.9 2.8 3.4 9 30.52
