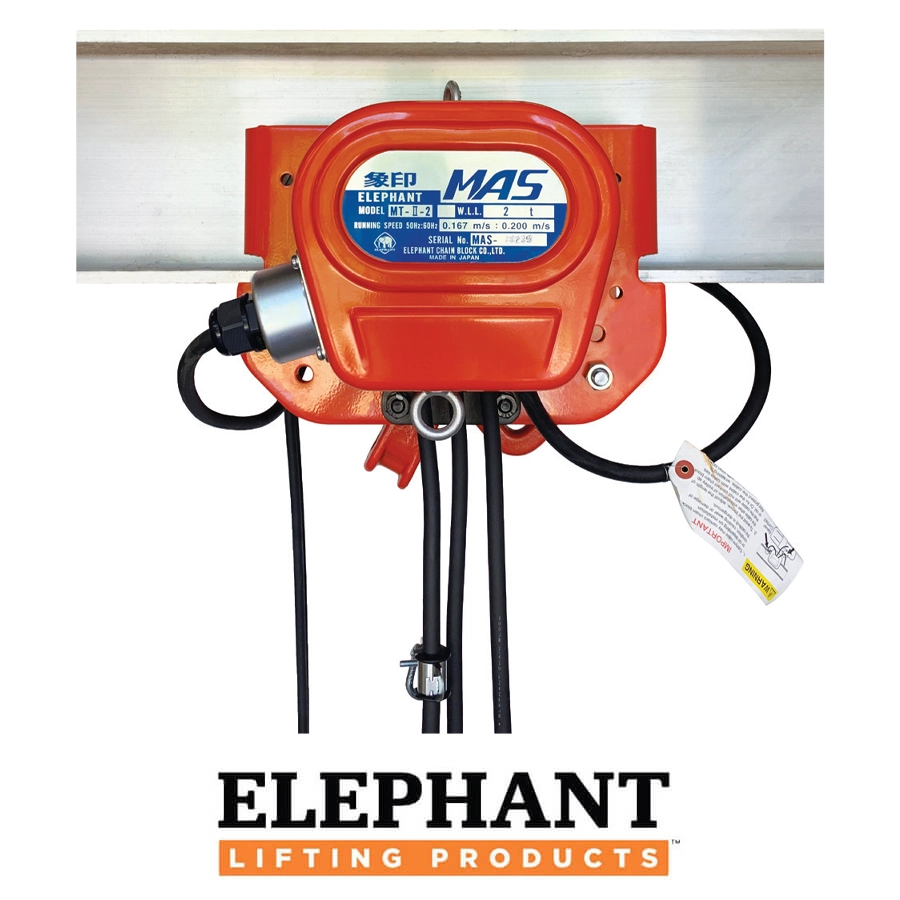

Elephant Electric Motorized Trolley, MAS MAF Type

Elephant Electric Motorized Trolley, MAS MAF Type
  • Power cord length & hoist connection cable length for all trolleys is 1’ 7”
  • MAS or MAF is for 3 phase hoists
  • For special PB control lengths, please request at time of order
  • Trolleys feature “plug & play” quick connect wiring (Alpha, Beta, & DA DB Series are hard wired)
  • Power supply voltage for pendant control is 24v

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Stock Number W.L.L. (lbs) W.L.L. (mt) Voltage Trolley Motor H.P. Traversing Speed (ft/min) Headroom (in) Traversing I-Beam Width Trolley Min. Radius (in) Net Weight (lbs)
50Hz/60Hz 50Hz/60Hz
MAS (MAF) – 0.25 550 0.25 230V / 460 V, 60 HZ 0.54 65 / 78 MAF type 32 /39 MAS type 5.52 2.95-5.91 43.31 69
MAS (MAF) – 0.5 1,100 0.5 5.52
MAS (MAF) – 1 2,200 1 5.52
MAS (MAF) – 2 4,400 2 65 / 78 MAF type 32 /20 MAS type 6.46 3.94-5.91 59.06 88
MAS (MAF) – 3 6,600 3 7.05 59.06 141
MAS (MAF) – 5 11,000 5 1.02 9.14 4.92-6.89 78.74 182
