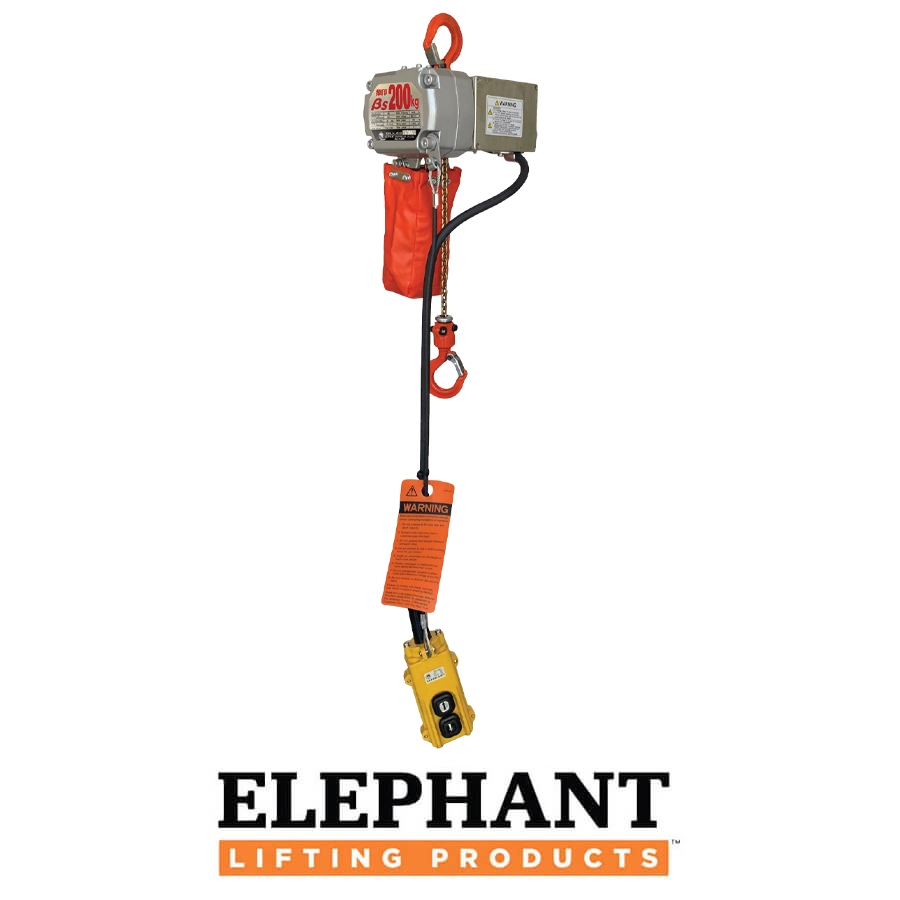

Elephant Beta Compact Electric Chain Hoist

Elephant Beta Compact Electric Chain Hoist
  • 120kg & 200kg
  • 1 Phase 115V
  • Unit weight with standard lift is 10 lbs
  • 11” headroom
  • Ideal for carrying in tool boxes
  • Overload protection device
  • Overwind protection
  • Plastic chain container
  • Ratings JIS / ISO 1AM, FEM M4, ASME H3, Hoist protection is IP54, Pendant is IP65 NEMA 4X
STOCK NUMBER BS-012 BS-020
Capacity (kg) 125 200
Capacity (lbs) 275 440
Motor Output (H.P.) 0.25
Short Time Rating (min.) 25
%ED 30%
Maximum Starting Frequency (times/h) 180
Voltage Single Phase 115V
Ampare (A) 4
Lifting Speed (ft//min.) 21 12.5
Headroom (in) 11
Load Chain (Dia. X Pitch) 3mm X 9 mm
Power Cable (ft) 9.8 ft (1.25mm2 X 3cores) with plug
Weight 16.5 lb (10 ft lift) : 17lb (20 ft lift)

*Maximum lift is 32 ft

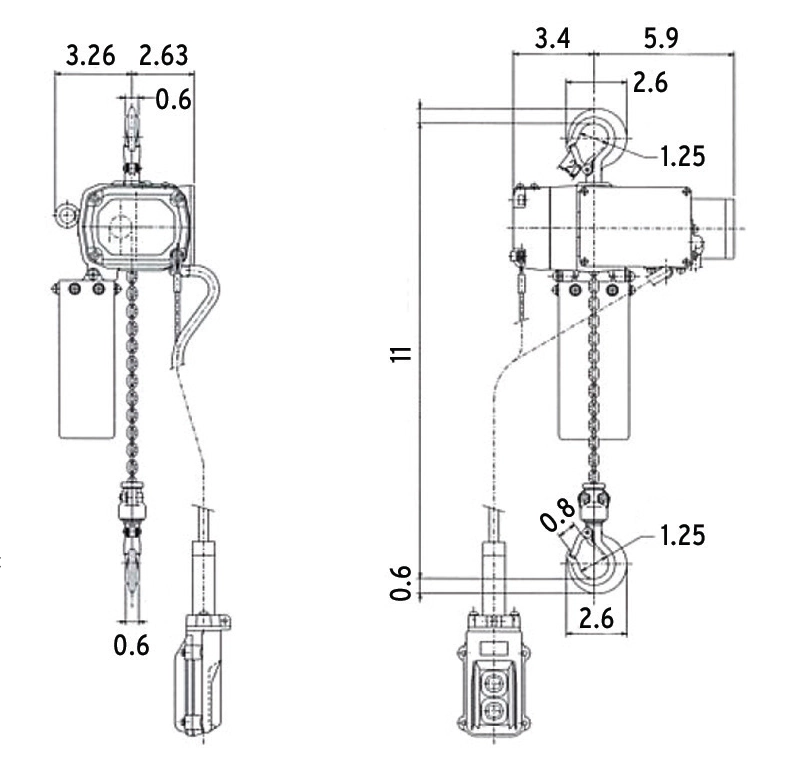

Above schematic measured in inches

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
