Dynafor® Industrial – capacity from 1 t to 20 t. Accuracy: +/- 0.3% dynamometer

Dynafor® Industrial - capacity from 1 t to 20 t. Accuracy: +/- 0.3% dynamometer

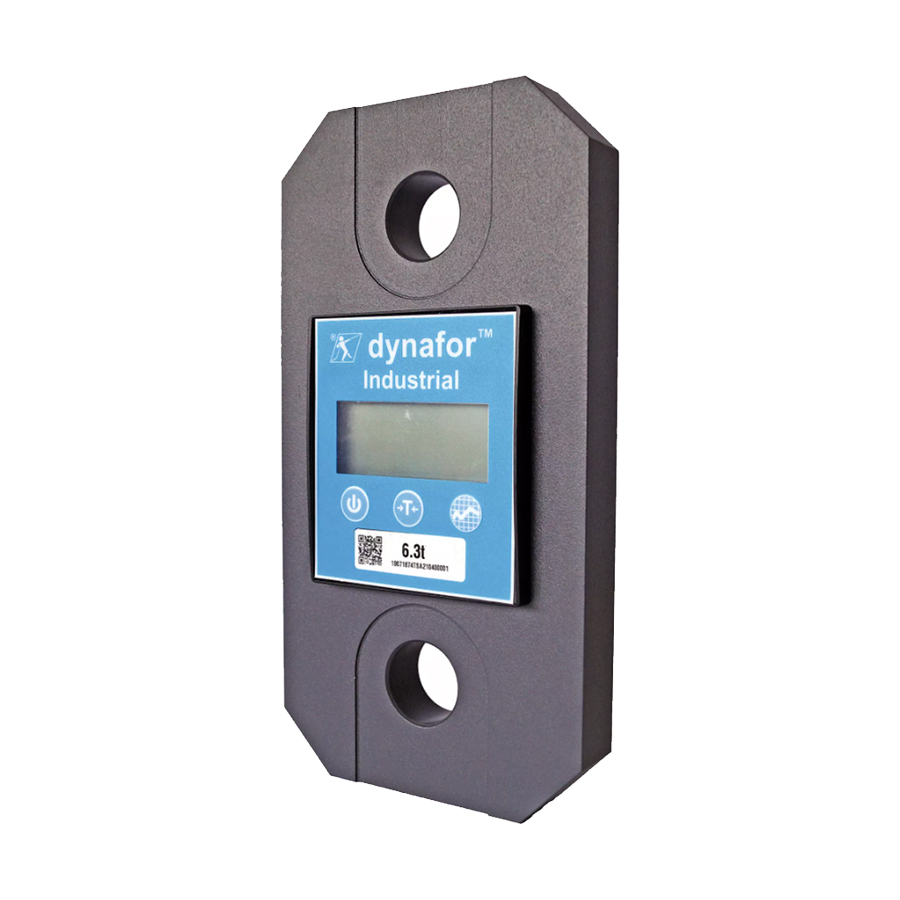

The Dynafor® Industrial is a rugged and lightweight precision industrial dynamometer. It measures tensile forces or suspended loads in all positions.

This range of electronic traction dynamometers with digital display is designed to be used with shackles or clevis hooks.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

  • Accuracy: +/- 0.3% of nominal capacity
  • Extended capacity range from 1 t to 20 t (2,000 to 40,000 lbs.)
  • Operating temperature range from -4 to 120oF
  • Power supply: two 1.5 V “AAA” batteries
  • Protection: IP 64
  • Display in kg, daN, lb.
  • 11/16 in. LCD digits
  • Functions: tare, peak load, units change
  • Overhead weighing
  • Force measurement testing
  • Towing applications
  • Safety and lifting applications
  • Industrial dynamometer
  • A usage and maintenance instruction manual
  • An adjustment certificate
  • An EC declaration of conformity
  • Radio certification:
    – FCC Part 15 (US)
    – Approved by Industry Canada

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
