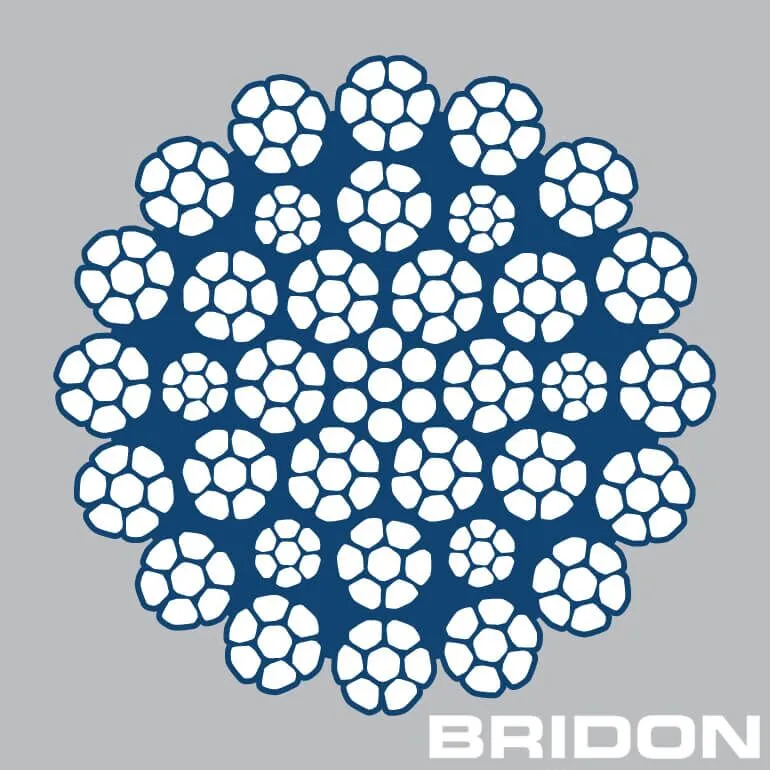

Dyform®-34MAX, 34LR, and 34XL Low Rotation Wire Rope

Dyform®-34MAX, 34LR, and 34XL Low Rotation Wire Rope

• Strongest of all ropes in the Rotation Resistant product range – confirmed by Bridon’s “Powercheck” testing of a sample from each production length.
• Greatest resistance to rotation of all ropes in the Rotation Resistant product range – confirmed by Bridon’s unique “Twistcheck” type testing program.
• Superior bending fatigue life when compared with conventional Rotation Resistant ropes – confirmed by laboratory testing and extensive field experience.
• Excellent resistance to crushing and abrasion resulting from the overall compactness and robustness of the rope and the Dyform strands – recommended when multi-layer spooling is involved.
• Reduced elongation results from increased steel content and the Dyform process.
• Optional plastic coating of IWRC to further extend fatigue life, improve structural stability and resistance to corrosion.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Diameter Approx Mass Minimum Breaking Force
Rope Grade
CERTEX Cat. Ref. No 34MAX
In mm lb. kg/ft tons kN
1 2.26 0.99 CX01-0685 76.9 684.0
26 2.39 1.09 CX01-0684 78.3 705.0
28 2.76 1.25 CX01-0348 91.6 814.0
1 1/4 32 3.74 1.64 CX01-0293 122.0 1085.0

Dyform®-34LR

Diameter Approx Mass
Minimum Breaking Force
Rope Grade
34L
In mm lb. kg/ft CERTEX Cat. Ref. No 1960 CERTEX Cat. Ref. No 2160 CERTEX Cat. Ref. No 2160
tons kN tons kN tons kN
1/2 0.54 0.24 CX01-0352 16.5 147.0 CX01-0375 18.0 160.0 – – –
13 0.57 0.26 CX01-0353 17.3 154.0 CX01-0376 18.7 166.0 – – –
14 0.65 0.30 CX01-0354 20.1 179.0 CX01-0377 21.5 191.0 – – –
9/16 0.68 0.30 CX01-0355 20.8 185.0 CX01-0378 22.7 201.0 – – –
5/8 16 0.84 0.37 CX01-0357 26.1 232.0 CX01-0380 28.2 251.0 CX01-0674 30.6 272.0
18 1.07 0.48 CX01-0359 33.5 298.0 CX01-0382 35.9 319.0 – – –
3/4 19 1.21 0.53 CX01-0360 37.3 29.0 CX01-0383 40.0 356.0 CX01-0677 42.9 382.0
20 1.32 0.60 CX01-0361 41.6 370.0 CX01-0384 44.6 397.0 – – –
22 1.61 0.73 CX01-0363 49.7 442.0 CX01-0386 54.2 482.0 CX01-0680 54.2 482.0
7/8 1.65 0.73 CX01-0364 50.4 448.0 CX01-0387 54.8 487.0 CX01-0681 54.8 487.0
24 1.92 0.87 CX01-0366 59.3 528.0 CX01-0389 64.0 569.0 CX01-0683 64.0 569.0
25 2.1 0.93 – – – – – – CX01-0684 69.7 620.0
1 2.15 0.95 CX01-0368 62.4 555.0 CX01-0391 70.0 638.0 CX01-0685 71.7 638.0
26 2.28 1.04 CX01-0369 69.5 618.0 CX01-0392 74.0 658.0 CX01-0686 74.0 658.0
28 2.63 1.19 CX01-0371 76 676.0 CX01-0394 82.6 735.0 CX01-0688 84.4 751.0
1 1/8 2.73 1.20 CX01-0372 79.5 689.0 CX01-0395 83.6 744.0 CX01-0689 86.9 773.0
29 2.94 1.30 – – – – – – CX01-0690 93.2 829.0
30 3.07 1.36 CX01-0373 92.2 820.0 CX01-0396 94.0 836.0 – – –
1 1/4 32 3.37 1.49 CX01-0374 98.2 874.0 CX01-0397 110.2 980.0 CX01-0691 110.2 980.0
1 1/2 38 4.92 2.17 – – – – – – CX01-0692 165.4 1472.0

Dyform®-34XL

CERTEX Cat. Ref. No Diameter Approx Mass
Minimum Breaking Force
Rope Grade
34XL
In mm lb/ft. kg/m. tons kN
CX01-0674 5/8 16 0.84 1.25 30.6 272
CX01-0677 3/4 19 1.31 1.95 42.9 382
CX01-0396 1 1/8 – 2.72 4.05 86.9 773

NOT FOR AIRCRAFT USE. (“Aircraft Cable” has become an accepted industry term for small diameter 7×7 and 7×19 construction wire rope intended for industrial and marine application.) Read important warnings and information.

WARNING: Any warranties, expressed or implied, concerning the use of this product apply only to the nominal strength of new, unused wire rope. All equipment using this product must be properly used and maintained. Wire rope must be properly stored, handled, used and maintained. Most importantly, wire rope must be regularly inspected during use. Damage, abuse or improper maintenance can cause rope failure. Consult the AISI Wire Rope Users Manual, ASME or ANSI Standards, before usage. Wire rope removal criteria are based on the use of steel sheaves. If synthetic sheaves are used, consult the sheave equipment manufacturer. WARNING!
