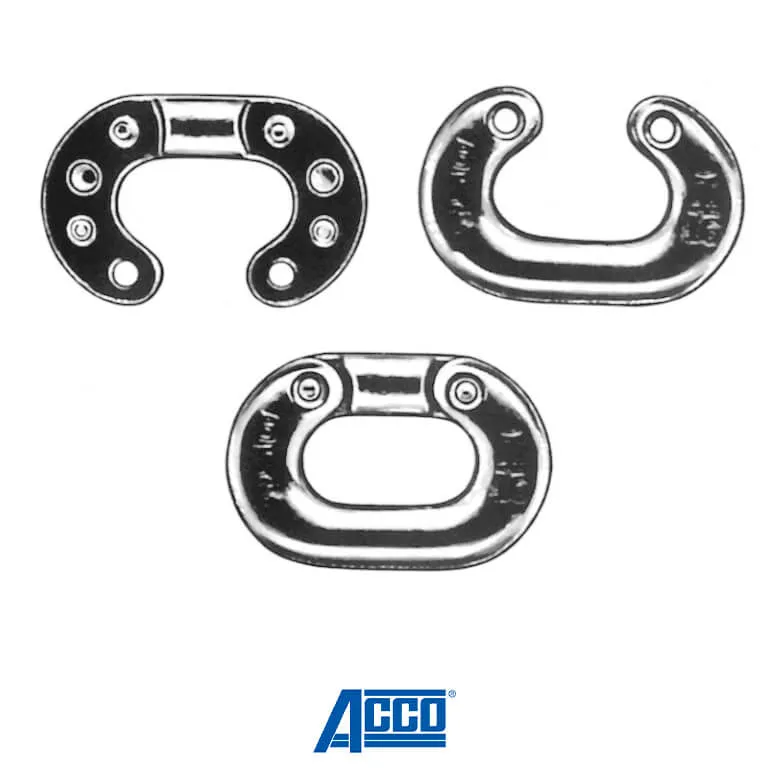

Drop forged. For connection of attachments to chain. Links are provided with interlocking lugs and rivets.
For permanent connections, the rivets must be peened into the counter sunk holes.
Use with chain of equal or lower working load limit.
Drop forged. For connection of attachments to chain. Links are provided with interlocking lugs and rivets.
For permanent connections, the rivets must be peened into the counter sunk holes.
Use with chain of equal or lower working load limit.
Connecting Links | |||||
---|---|---|---|---|---|
Packaged | |||||
Link Size Inches | Working Load Limit Lbs.* | Wt. Per Ctn. Lbs. | Pcs. Per Ctn. | CERTEX Cat. Ref. No. | CERTEX Cat. Ref. No. |
3/16 | 800 | 2/3 | 20 | CX06-0853 | CX06-0859 |
1/4 | 1,325 | 2/3 | 10 | CX06-0854 | CX06-0860 |
5/16 | 1,950 | 1 | 10 | CX06-0855 | CX06-0861 |
3/8 | 2,750 | 2 | 10 | CX06-0856 | CX06-0862 |
7/16 | 3,625 | 3 | 10 | CX06-0857 | – |
1/2 | 4,750 | 4 | 10 | CX06-0858 | CX06-0863 |
WARNING: Working load limit must not be exceeded. Not to be used for lifting or hoisting applications.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
