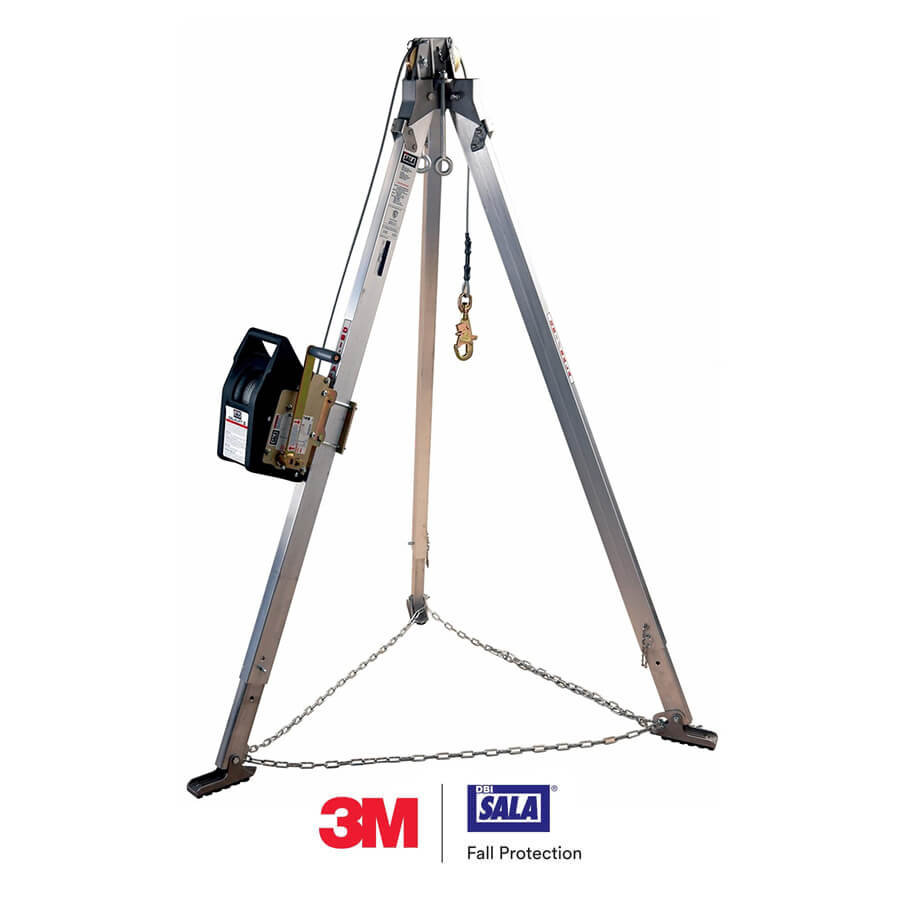

This DBI-SALA system is ideal for typical manholes and combines our lightweight and portable aluminum tripod with the SALALIFT® II Winch. The system is easily set-up by one worker and can be transported from one location to another.
• Complete confined space entry/retrieval system
• Includes tripod, winch and/or self retracting lifeline
• All systems are man-rated
• All mounting hardware and brackets are included
| Model # | Tripod | Winch | SRL | Weight |
|---|---|---|---|---|
| 8300030 | 7′ (2.1m) | 60′ (18m) 1/4″ (6.25mm) Galvanized | N/A | 83 lbs. (37.4kg) |
| 8300032 | 7′ (2.1m) | 90′ (27m) 3/16″ (5mm) Galvanized | N/A | 82 lbs. (36.9kg) |
| 8300034 | 7′ (2.1m) | 120′ (36m) 3/16″ (5mm) Galvanized | N/A | 84 lbs. (37.8kg) |
| 8301000 | 7′ (2.1m) | N/A | 50′ (15m) 3/16″ (5mm) Galvanized | 94 lbs. (42.4kg) |
| 8304010 | 7′ (2.1m) | 60′ (18m) 1/4″ (6.25mm) Galvanized | 50′ (15m) 3/16″ (5mm) Galvanized | 133 lbs. (59.9kg) |
| 8304012 | 9′ (2.7m) | 60′ (18m) 1/4″ (6.25mm) Galvanized | 50′ (15m) 3/16″ (5mm) Galvanized | 146 lbs. (65.7kg) |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
