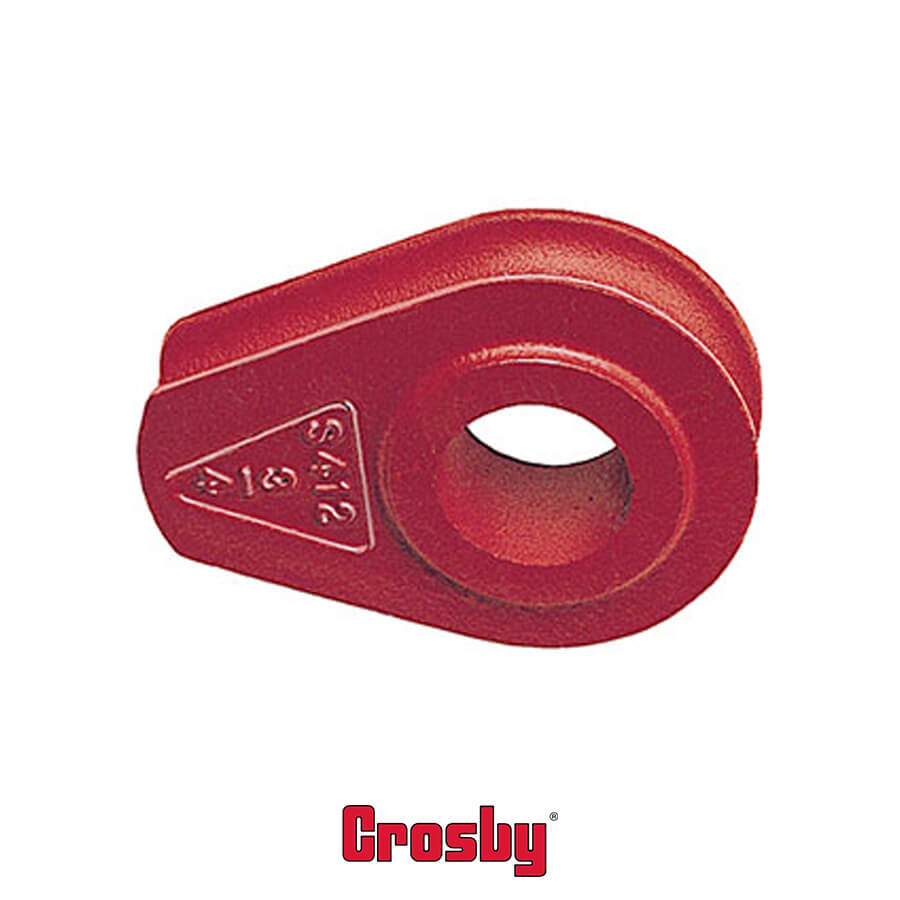

• Fits pin for open wire rope socket, boom pendant clevis and wedge socket.
| Rope Dia. (in.) | CERTEX Cat. Ref. No. | Crosby S-412 S.C. Stock No. | Weight Each (lbs.) | Dimensions (in.) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

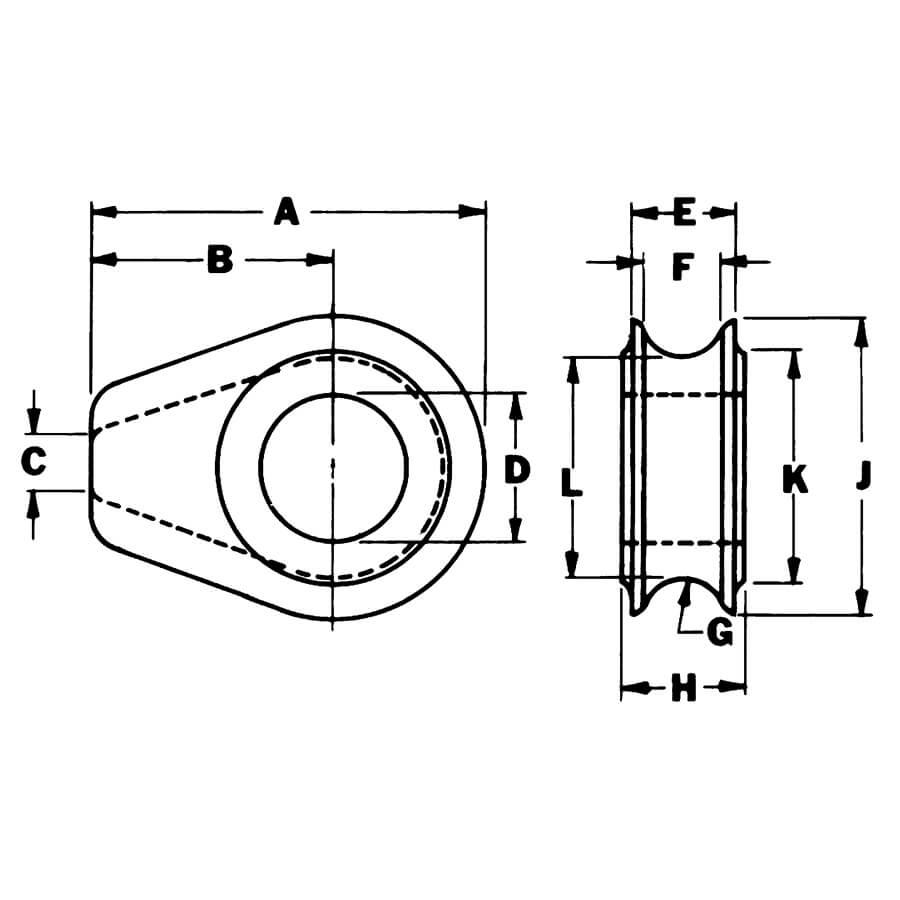

| A | B | C | D | E | F | G | H | J | K | L | ||||
| †1/2 | CX05-0358 | 1037121 | .61 | 2.81 | 1.75 | .25 | 1.06 | .75 | .56 | .28 | .88 | 2.13 | 1.63 | 1.56 |
| †5/8 | CX05-0359 | 1037149 | 2.21 | 4.69 | 3.00 | .38 | 1.31 | 1.06 | .81 | .41 | 1.13 | 3.38 | 2.25 | 2.56 |
| †3/4 | CX05-0360 | 1037167 | 2.32 | 4.69 | 3.00 | .38 | 1.50 | 1.06 | .81 | .41 | 1.38 | 3.38 | 2.25 | 2.56 |
| †7/8 | CX05-0361 | 1037185 | 5.45 | 6.06 | 3.81 | .50 | 1.75 | 1.38 | 1.06 | .53 | 1.63 | 4.50 | 3.25 | 3.44 |
| †1 | CX05-0362 | 1037201 | 5.25 | 6.06 | 3.81 | .50 | 2.13 | 1.38 | 1.06 | .53 | 1.81 | 4.50 | 3.25 | 3.44 |
| †1 1/8 | CX05-0363 | 1037229 | 9.29 | 7.25 | 4.56 | .63 | 2.38 | 1.75 | 1.31 | .66 | 2.06 | 5.38 | 3.88 | 4.06 |
| †1 1/4 – 1 3/8 | CX05-0364 | 1037247 | 9.81 | 7.25 | 4.56 | .63 | 2.63 | 1.94 | 1.53 | .78 | 2.31 | 5.38 | 3.88 | 4.13 |
† Cast Ductile Iron.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
