Crosby® S-287 Sliding Choker Hook for Webbing

Crosby® S-287 Sliding Choker Hook for Webbing

Crosby’s new S-287 is designed specifically for choker applications using web slings.
• Available in 2 sizes: 3-1/4 tons (2” webbing) and 4-1/2 tons (3” webbing).
• Special design of hook protects the synthetic sling when dropped or dragged.
• Designed to reduce friction, abrasion, and fraying in choker area.
• Design factor of 5 to 1.
• Forged alloy steel.
• Each Connector has a Product Identification Code (PIC) for material traceability along with a Working Load Limit and the name Crosby forged into it.
• Use same spool and cover as S-280 Web Connector.
• Replacement Kit for Spool and Web Cover available.

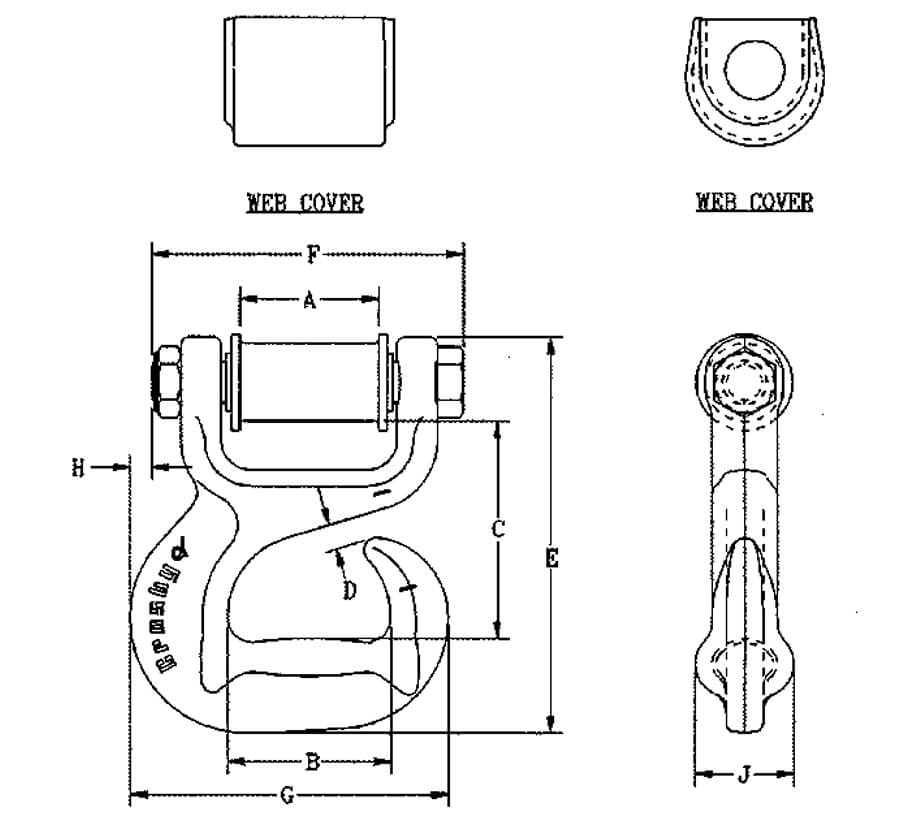

Round Sling Size (No.) Web Sling* Working Load Limit (tons) CERTEX Cat. Ref. No. Crosby S-287 Stock No. Dimensions (in.) Weight Each (lbs.)
Webbing Width (in.) Eye Width (in.) Ply A B C D E F G H J
1 & 2 2 2 2 3-1/4 CX07-0503 1021909 2.13 2.50 3.32 0.38 6.03 4.77 4.88 0.34 1.50 3.7
3 3 1.5 2 4-1/2 CX07-0504 1021918 1.63 3.50 3.67 0.38 7.06 4.53 6.51 1.36 1.88 6.1

* Designed for use with Type III, (Eye & Eye), Class 7, 2 Ply web slings.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
