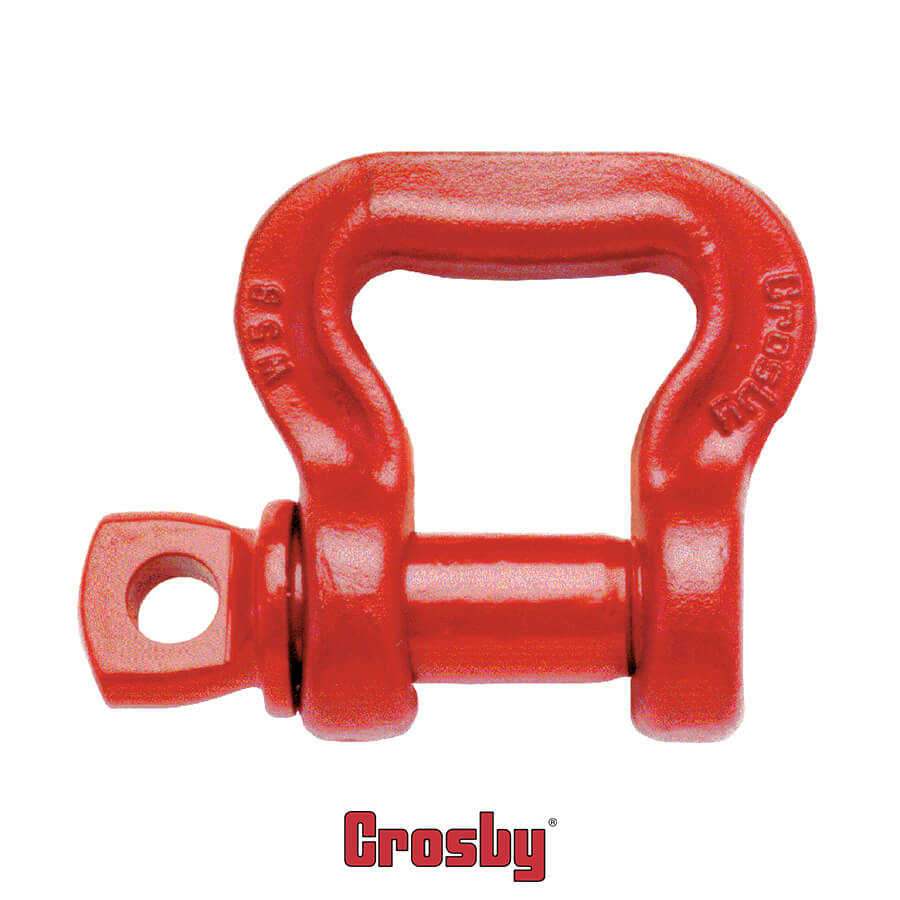

Crosby® S-281 Web Sling Shackle

Crosby® S-281 Web Sling Shackle

• Incorporates same ear spread and pin dimensions as conventional Crosby Shackles.
• Allows easy connection to pad eyes, eye bolts and lifting lugs.

• Increased radius of bow gives wider sling bearing
surface resulting in an increased area for load
distribution, thus:
• Increasing Synthetic Sling efficiency by at least 15% as compared to standard anchor and chain shackle bows and conventional eye hooks. This allows 100% of the sling’s rated Working Load Limit to be achieved.
• Allowing better load distribution on internal fibers.

• All Alloy construction.
• Design Factor of 5 to 1.
• Each shackle has a Product Identification Code (PIC) for material traceability along with a Working Load Limit and the name Crosby forged into it.

Round Sling Size (No.) Web Slings* S-281 Working Load Limit† (tons) CERTEX Cat. Ref. No. Crosby S-280 Stock No. Weight Each (lbs.) Dimensions (in.)
Webbing Width (in.) Eye Width (in.) Ply A C D E K M N
1 & 2 2 2 2 3-1/4 CX07-0350 1021048 1.2 1.06 2.50 0.75 1.62 1.22 3.84 3.34
3 3 1.5 2 4-1/2 CX07-0351 1021057 1.5 1.25 2.00 0.88 1.50 1.41 3.38 3.97
4 4 2 2 6-1/4 CX07-0352 1021066 2.5 1.44 2.50 1.00 2.00 1.62 4.22 4.50
5 & 6 6 3 2 8-1/2 CX07-0353 1021075 4.3 1.69 3.62 1.13 2.75 1.84 5.64 5.13

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
