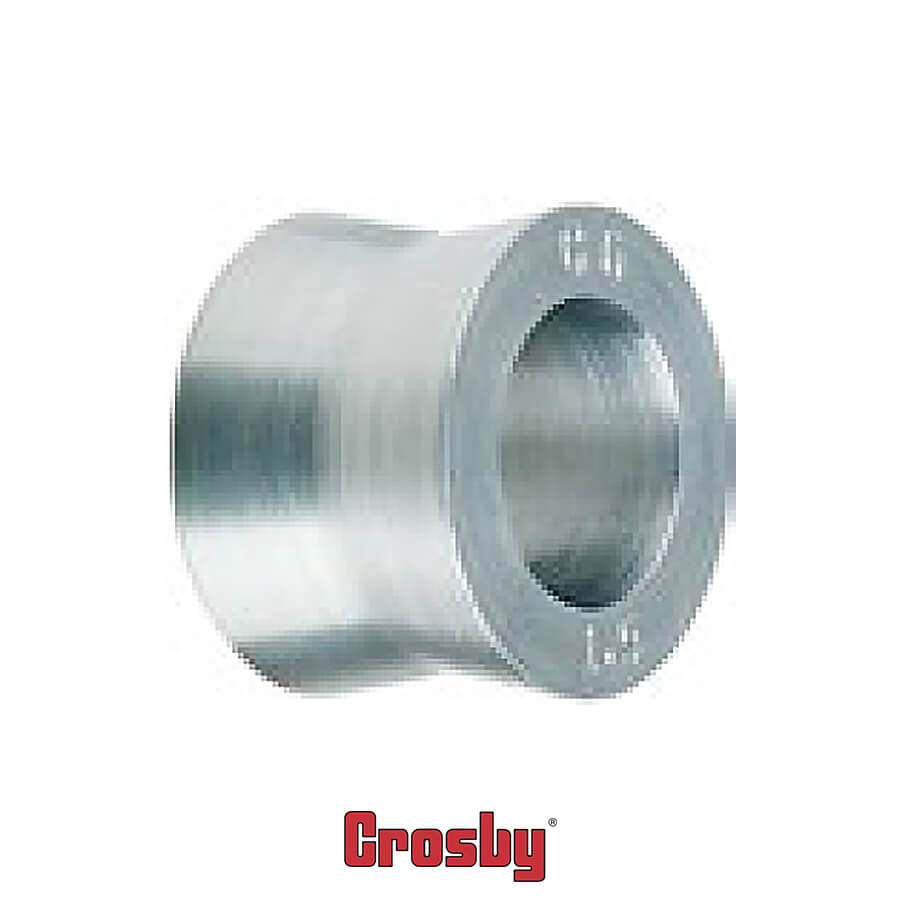

The “Spool” is designed to keep the load centered on the pin, thus keeping the sling positioned correctly in the shackle bow.
| Spool | |||||||
|---|---|---|---|---|---|---|---|

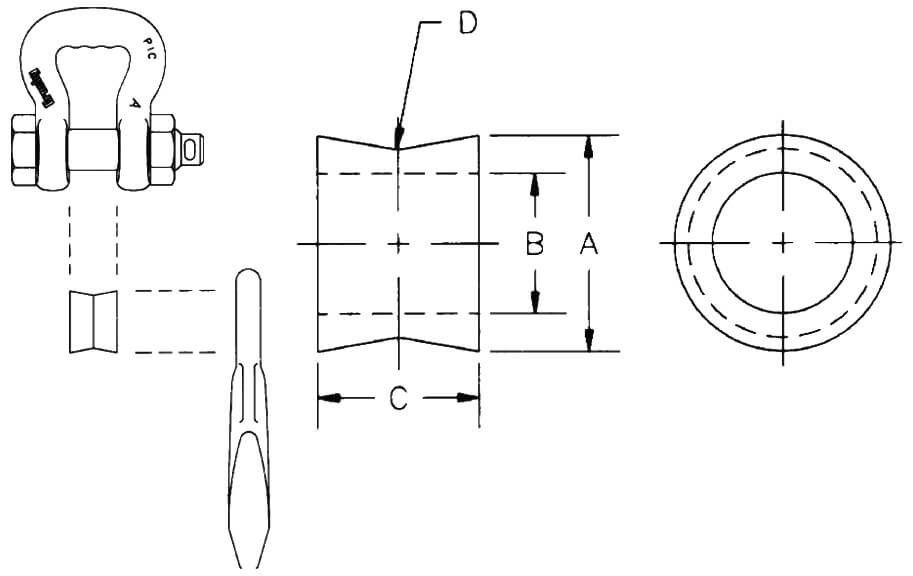

| Shackle Size (in.) | CERTEX Cat. Ref. No. | Crosby Stock No. | Dimensions (in.) | Weight Each (lbs.) | |||
| A | B | C | D | ||||
| 1 | CX07-0332 | 1020903 | 1.25 | 0.81 | 0.75 | 0.19 | 0.33 |
| 1.5 | CX07-0333 | 1020912 | 1.50 | 0.94 | 1.00 | 0.25 | 0.57 |
| 2 | CX07-0334 | 1020921 | 1.75 | 1.05 | 1.19 | 0.31 | 0.89 |
| 3 | CX07-0335 | 1020930 | 2.00 | 1.31 | 1.50 | 0.38 | 1.45 |
| 4 | CX07-0336 | 1020939 | 2.50 | 1.63 | 1.88 | 0.44 | 2.79 |
| 5 | CX07-0337 | 1020948 | 3.25 | 2.13 | 2.25 | 0.50 | 2.40 |
| 6 | CX07-0338 | 1020957 | 3.75 | 2.38 | 2.75 | 0.62 | 4.06 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
