Crosby® Regular Nut Eye Bolts – G-291

Crosby® Regular Nut Eye Bolts - G-291

G-291

  • Recommended for straight line pull.
  • All Bolts Hot Dip galvanized after threading.
  • Furnished with standard Hot Dip galvanized hex nuts.
  • Forged Steel — Quenched and Tempered.
  • Fatigue tested to 1 1/2 times the Working Load Limit for 20,000 cycles.

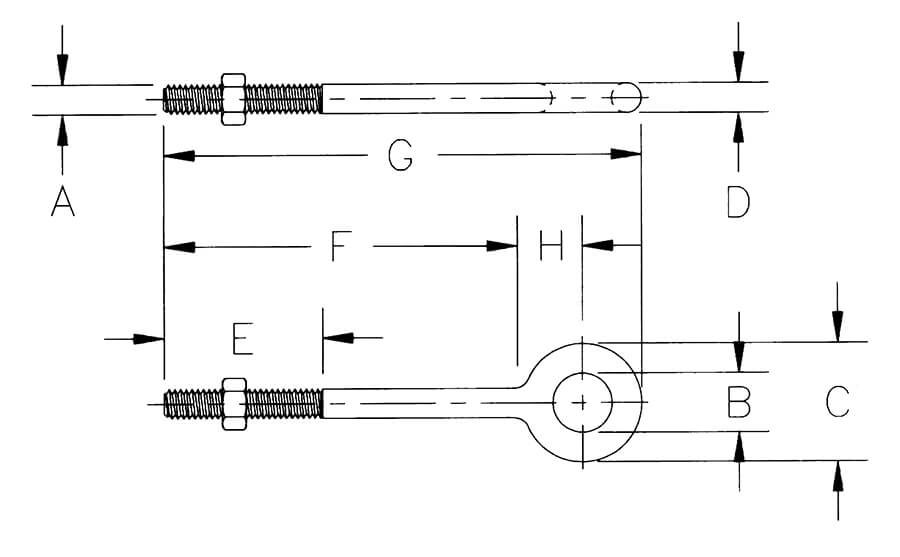

Shank Diameter & Length (in.) CERTEX Cat. Ref. No. Crosby G-291 Stock No. Galv. Working Load Limit* (lbs.) Weight Per 100 (lbs.) Dimensions (in.)
A B C D E F G H
1/4 x 2 CX10-0346 1043230 650 8.20 .25 .50 1.00 .25 1.50 2.00 3.06 0.56
1/4 x 4 CX10-0347 1043258 650 11.70 .25 .50 1.00 .25 2.50 4.00 5.06 0.56
5/16 x 2 1/4 CX10-0348 1043276 1200 13.30 .31 .62 1.25 .31 1.50 2.25 3.56 0.69
5/16 x 4 1/4 CX10-0349 1043294 1200 25.00 .31 .62 1.25 .31 2.50 4.25 5.56 0.69
3/8 x 2 1/2 CX10-0350 1043310 1550 23.30 .38 .75 1.50 .38 1.50 2.50 4.12 0.88
3/8 x 4 1/2 CX10-0351 1043338 1550 29.50 .38 .75 1.50 .38 2.50 4.50 6.12 0.88
3/8 x 6 CX10-0352 1043356 1550 35.20 .38 .75 1.50 .38 2.50 6.00 7.62 0.88
1/2 x 3 1/4 CX10-0353 1043374 2600 50.30 .50 1.00 2.00 .50 1.50 3.25 5.38 1.12
1/2 x 6 CX10-0354 1043392 2600 66.10 .50 1.00 2.00 .50 3.00 6.00 8.12 1.12
1/2 x 8 CX10-0355 1043418 2600 82.00 .50 1.00 2.00 .50 3.00 8.00 10.12 1.12
1/2 x 10 CX10-0356 1043436 2600 88.00 .50 1.00 2.00 .50 3.00 10.00 12.12 1.12
1/2 x 12 CX10-0357 1043454 2600 114.20 .50 1.00 2.00 .50 3.00 12.00 14.12 1.12
5/8 x 4 CX10-0358 1043472 5200 103.10 .62 1.25 2.50 .62 2.00 4.00 6.69 1.44
5/8 x 6 CX10-0359 1043490 5200 118.20 .62 1.25 2.50 .62 3.00 6.00 8.69 1.44
5/8 x 8 CX10-0360 1043515 5200 135.10 .62 1.25 2.50 .62 3.00 8.00 10.69 1.44
5/8 x 10 CX10-0361 1043533 5200 153.60 .62 1.25 2.50 .62 3.00 10.00 12.69 1.44
5/8 x 12 CX10-0362 1043551 5200 167.10 .62 1.25 2.50 .62 4.00 12.00 14.69 1.44
3/4 x 4 1/2 CX10-0363 1043579 7200 168.60 .75 1.50 3.00 .75 2.00 4.50 7.69 1.69
3/4 x 6 CX10-0364 1043597 7200 184.50 .75 1.50 3.00 .75 3.00 6.00 9.19 1.69
3/4 x 8 CX10-0365 1043613 7200 207.90 .75 1.50 3.00 .75 3.00 8.00 11.19 1.69
3/4 x 10 CX10-0366 1043631 7200 235.00 .75 1.50 3.00 .75 3.00 10.00 13.19 1.69
3/4 x 12 CX10-0367 1043659 7200 257.50 .75 1.50 3.00 .75 4.00 12.00 15.19 1.69
3/4 x 15 CX10-0368 1043677 7200 298.00 .75 1.50 3.00 .75 5.00 15.00 18.19 1.69
7/8 x 5 CX10-0369 1043695 10600 270.00 .88 1.75 3.50 .88 2.50 5.00 8.75 2.00
7/8 x 8 CX10-0370 1043711 10600 308.00 .88 1.75 3.50 .88 4.00 8.00 11.75 2.00
7/8 x 12 CX10-0371 1043739 10600 400.00 .88 1.75 3.50 .88 4.00 12.00 15.75 2.00
1 x 6 CX10-0372 1043757 13300 421.00 1.00 2.00 4.00 1.00 3.00 6.00 10.31 2.31
1 x 9 CX10-0373 1043775 13300 468.50 1.00 2.00 4.00 1.00 4.00 9.00 13.31 2.31
1 x 12 CX10-0374 1043793 13300 540.00 1.00 2.00 4.00 1.00 4.00 12.00 16.31 2.31
1 x 18 CX10-0375 1043819 13300 650.00 1.00 2.00 4.00 1.00 7.00 18.00 22.31 2.31
1 1/4 x 8 CX10-0376 1043837 21000 750.00 1.25 2.50 5.00 1.25 4.00 8.00 13.38 2.88
1 1/4 x 12 CX10-0377 1043855 21000 900.00 1.25 2.50 5.00 1.25 4.00 12.00 17.38 2.88
1 1/4 x 20 CX10-0378 1043873 21000 1210.00 1.25 2.50 5.00 1.25 6.00 20.00 25.38 2.88

* Ultimate load is 5 times the Working Load Limit.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
