METRIC THREADS
Also Available in UNC

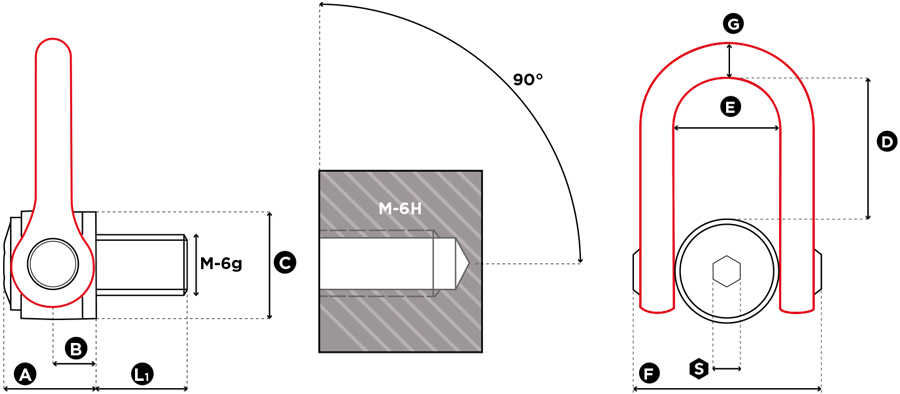

| Model Number | Diameter | SF 5:1 WLL (t) | SF 4:1 WLL (t) | Standard L1 (mm) | Torque (Nm) | Dimensions (mm) | Weight | ||||||||
| S | A | B | C | D | E | F | G | (kg) | (lbs) | ||||||
| MEGA.DSS M 64 UP | M 64 (x6) | 30,00 | 35,00 | 100 | 600 | 36 | 127 | 64 | 140 | 186 | 143 | 278 | 69 | 42,0 | 92,59 |
| MEGA.DSS M 72 UP | M 72 (x6) | 35,00 | 40,00 | 110 | 700 | 36 | 127 | 64 | 140 | 186 | 143 | 278 | 69 | 43,0 | 94,80 |
| MEGA.DSS M 80 UP | M 80 (x6) | 40,00 | 50,00 | 120 | 800 | 36 | 127 | 64 | 140 | 186 | 143 | 278 | 69 | 44,5 | 98,11 |
| MEGA.DSS M 90 UP | M 90 (x6) | 50,00 | 60,00 | 135 | 900 | 36 | 127 | 64 | 140 | 186 | 143 | 278 | 69 | 46,5 | 102,51 |
| MEGA.DSS M 100 UP | M 100 (x6) | 60,00 | 70,00 | 150 | 1000 | 36 | 127 | 64 | 140 | 186 | 143 | 278 | 69 | 49,0 | 108,03 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
